Overview:

Are you struggling to keep up with the increasing demands on your mission-critical data environment?

HPE Superdome Flex Server is a compute breakthrough that can power critical applications, accelerate data analytics, and tackle high-performance computing (HPC) and artificial intelligence (AI) workloads holistically. It delivers an unmatched combination of flexibility, performance and reliability for critical environments of any size. A unique modular architecture and unparalleled scale allow you to start small and grow at your own pace. Leveraging its in-memory design and groundbreaking performance, your business can process and analyze growing quantities of data at extraordinary speed. HPE Superdome Flex safeguards these vital workloads with superior RAS and end-to-end security. Meanwhile, HPE Pointnext, broad partner ecosystem, and mission-critical expertise complement the capabilities and value of the platform to help ensure your move to the HPE Superdome Flex is a success.

HPE Superdome Flex offers an unmatched combination of flexibility, reliability and performance for critical environments of any size.

  • Support for 4 to 32-sockets of Intel Xeon Scalable processors in a single system with up to 28-cores per socket for a maximum of 896 cores
  • 48 DIMM slots of DDR4 memory per chassis.
  • 768Gb – 48TB of shared memory
  • Choice of high performance DRAM only, or with 2nd Generation 62XX and 82XX processors, a combination of DRAM and HPE Persistent Memory available in 128, 256 and 512GB kits featuring Intel Optane™ DC Persistent Memory to meet individual workload requirements. Superdome Flex supports only App-direct Mode on HPE Persistent Memory
  • 16 half-height IO slots, or 8 full-height + 4 half-height IO slots, per four-socket chassis
  • Base IO includes 4-drive bays, two 1GbE and two 10GbE NIC ports, four USB ports
  • Built-in DVD
  • Superdome Flex Analysis Engine for better diagnostics and mission-critical reliability.
  • HPE nPARs: 4 socket to 16 socket and multiple nPARs configurations per rack supported for greater system reliability and licensing optimization

Features:

Keep Pace with the Evolving Demands on Your Critical Data Environments

HPE Superdome Flex Server utilizes a unique modular architecture that scales flexibly and seamlessly from 4- to 32-sockets in a single-system. Grow at your own pace, in 4-socket increments, avoiding the need to over-provision. With up to 32 sockets/896 cores, you have plenty of headroom to scale.

Leverage a cost-efficient entry point for mission-critical workloads at 4 sockets, and the ability to scale up to 32 sockets with choice of either economical Gold or high-end Platinum Intel Xeon Scalable processors.

Meet your in-memory computing demands with a platform that delivers from 768 GB up to 48 TB of shared memory. Choose DRAM only, or a combination of DRAM and Intel® Optane Persistent Memory 100 series for HPE, to meet your workload requirements.

Benefit from unbounded I/O with support for up to 128 PCIe standup cards.

Simplify your hybrid cloud environment with choice of management including open Redfish software ecosystem, OpenStack, and HPE OneView monitoring.

Process and Analyze Your Ever-Growing Data at Extreme Speed

HPE Superdome Flex Server provides the compute power needed for the most demanding workloads by delivering groundbreaking performance at any scale.1

Achieve the performance levels required by critical applications with ultra-low latency and high bandwidth technology.

Leverage innovative in-memory design and unmatched shared memory capacity of up to 48 TB in a single system.

Designed for the future based on Memory-Driven Computing design principles to boost analytics performance.

Safeguard your Mission-critical Workloads

The HPE Superdome Flex Server delivers the highest service levels on industry standards with extreme and proven RAS capabilities not available on other x86 platforms.2

Contain errors at the firmware level, including memory errors, before any interruption can occur at the operating system layer with the Hewlett Packard Enterprise firmware-first approach.

Reduce human error with the proven fault-handling analysis engine, which predicts hardware faults and initiates self-repair without operator assistance.

Isolate workloads and/or consolidate multiple workloads onto a single managed complex with the unique x86 hard partitioning (HPE nPars). Service individual partitions and/or reconfigure while other partitions continue to run undisturbed.

Deliver business continuity for Linux workloads with HPE Serviceguard for Linux (SGLX) high availability and disaster recovery clustering solution. It protects from a multitude of infrastructure and application faults across physical or virtual environments over any distance.

1 HPE Superdome Flex Server holds several performance benchmark records. See this blog for further details: https://community.hpe.com/t5/Servers-The-Right-Compute/Defying-the-law-of-diminishing-returns-HPE-Superdome-Flex/ba-p/7012970
2 For a detailed list of RAS capabilities on the HPE Superdome Flex Server, refer to this technical whitepaper: https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00036491enw

Specifications:


HPE Superdome Flex Server Specifications
Processor Name Intel Xeon Scalable processors (Platinum or Gold)
Processor family Four Intel Xeon Scalable processors (Platinum or Gold) per chassis
Processor core available 28 or 24 or 22 or 18 or 16 or 14 or 12 or 8 or 4
Processor cache 16.5 MB or 19.25 MB or 22 MB or 24.75 MB or 30.25 MB or 33 MB or 38.5 MB
Processor speed 3.6 GHz maximum depending on processor
Form factor Chassis is a 5U enclosure
Maximum memory 48 TB with 128 GB DIMMs per system
6 TB with 128 GB DIMMs per chassis
Memory type HPE DDR4 Memory
Memory slots 48 DIMM slots per chassis
Expansion slots Up to 16 per chassis, for detail descriptions refer to the QuickSpecs
System fan features Hot-Plug
Drive description 0 or 2 or 4
Optical drive type DVD-RW DVD-R
Network controller 2 x 10GbE ports per chassis, 2 x 1GbE ports per base chassis onboard. Additional networking available via I/O cards.
Minimum dimensions ( H x W x D) 8.64 x 17.5 x 32.5 in (21.95 x 44.45 x 82.55 cm) (chassis)
Weight 110 lb (50 kg)
Warranty 3-year parts, 3-year labor, 3-year onsite support coverage. For more warranty information refer to https://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://hpe.com/support.

Hardware Specs:

The HPE Superdome Flex Server is a compute breakthrough to power critical applications, accelerate data analytics and tackle AI and HPC workloads holistically. It delivers an unmatched combination of flexibility, performance and reliability for critical environments of any size. Its unique modular architecture and unparalleled scale allows you to start small and grow at your own pace. Leveraging its in-memory design and groundbreaking performance, you can process and analyze the growing amount of data moving through your business at extreme speed. With superior RAS and end-to-end security, the HPE Superdome Flex Server safeguards your vital workloads. The HPE Pointnext Services portfolio, partner ecosystem, and HPE ´s mission-critical expertise complements the platform value to ensure your move to HPE Superdome Flex is a success.

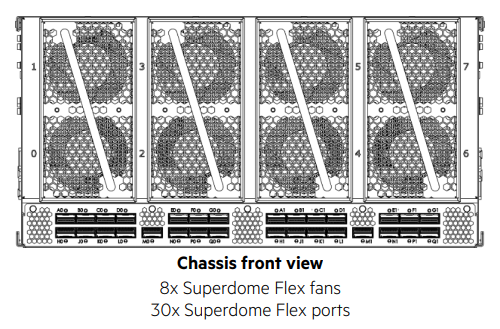

Chassis Front View

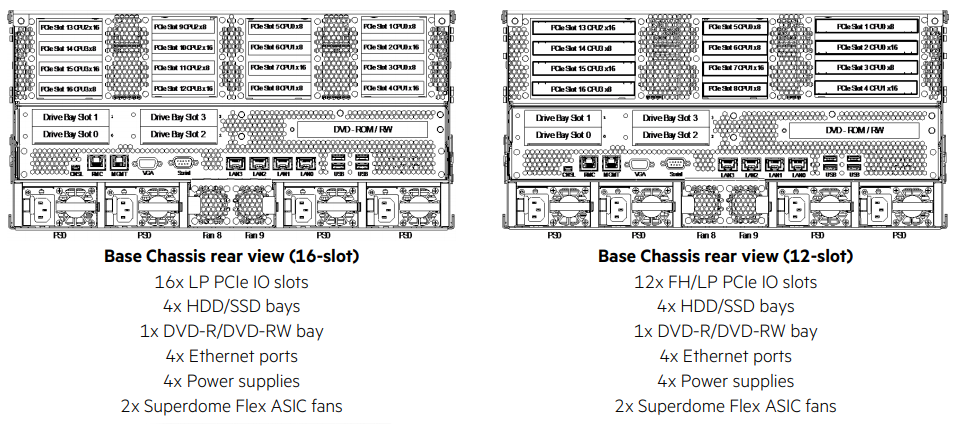

Base Chassis Rear View

Views:

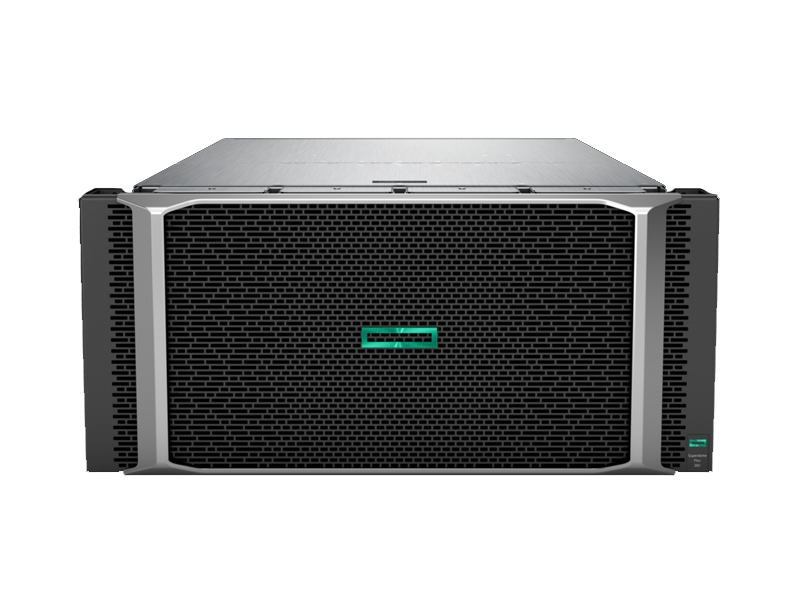

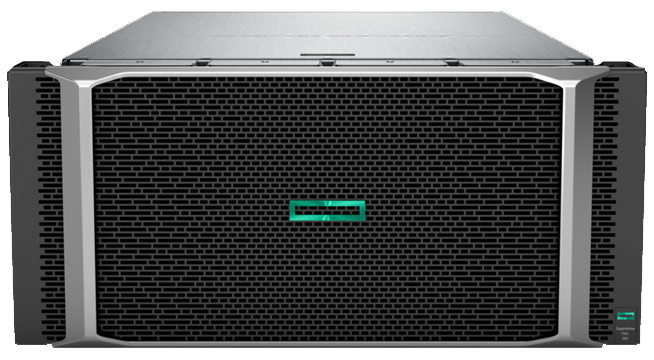

Front View

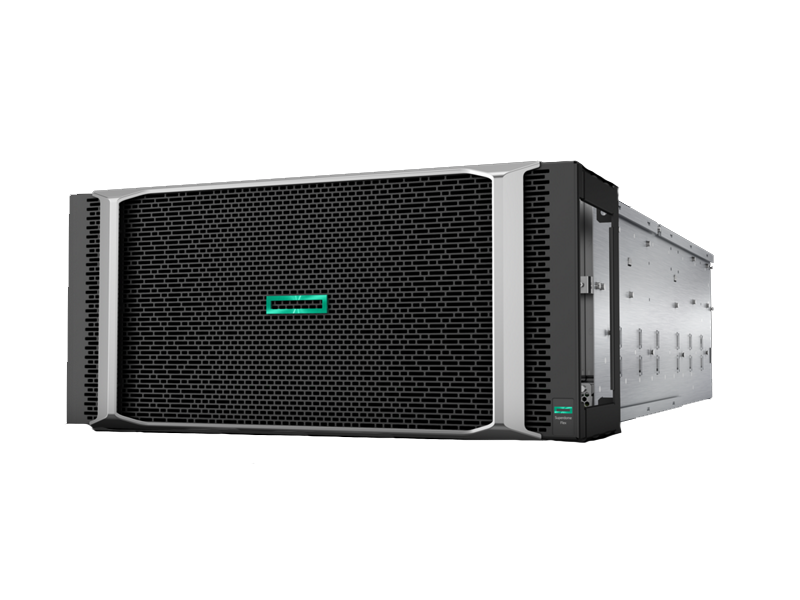

Angle View

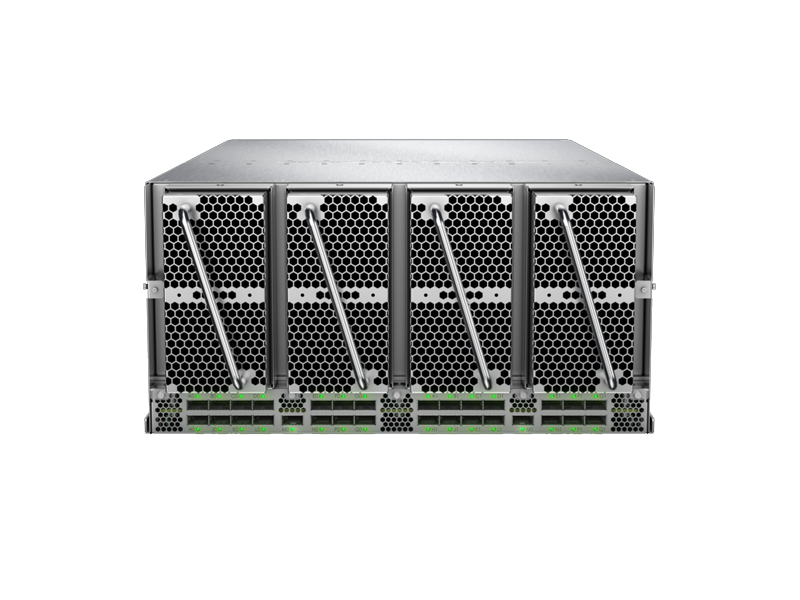

Front Open View

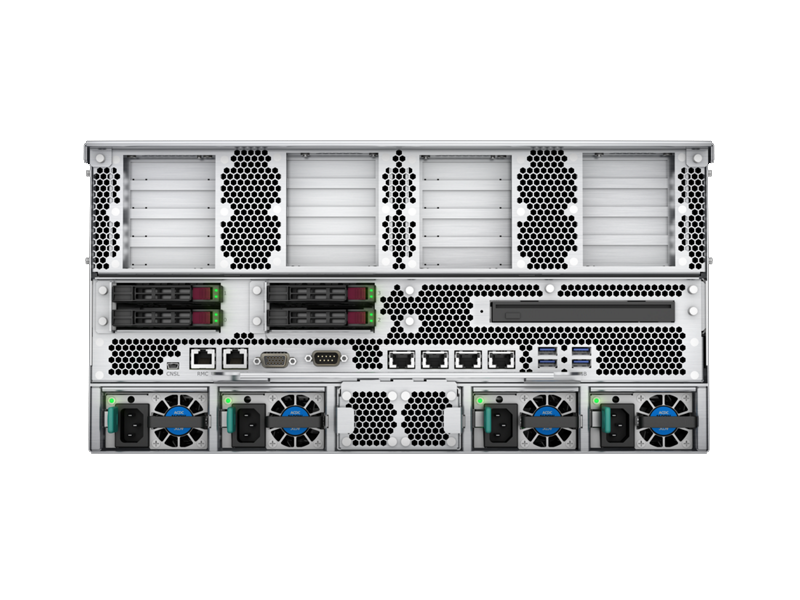

Rear View

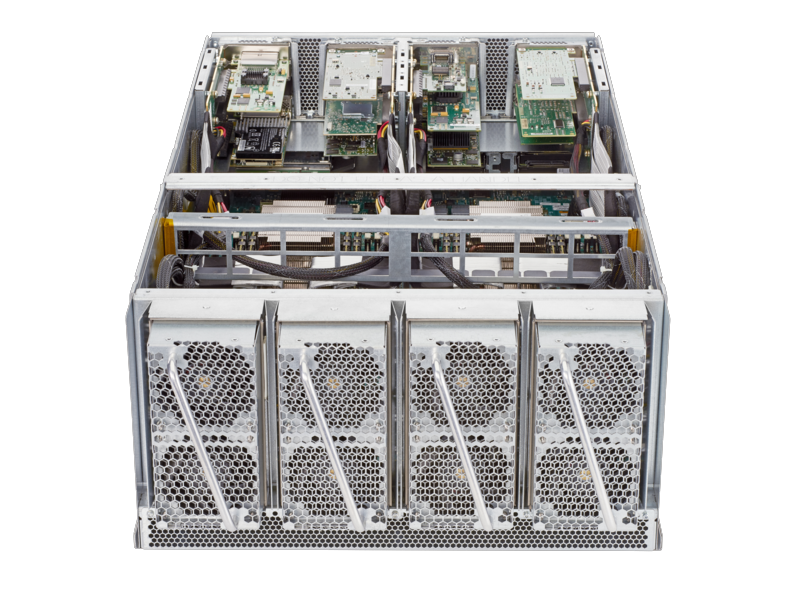

Top Front View

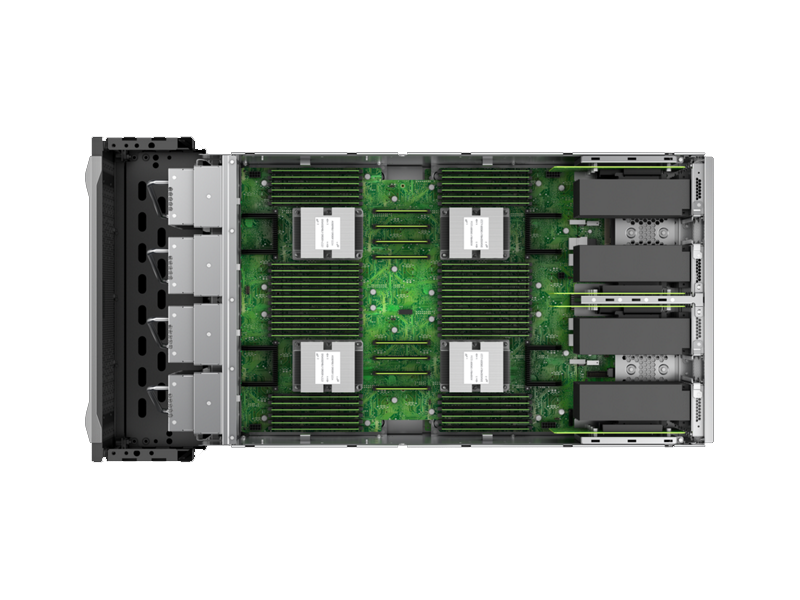

Top View

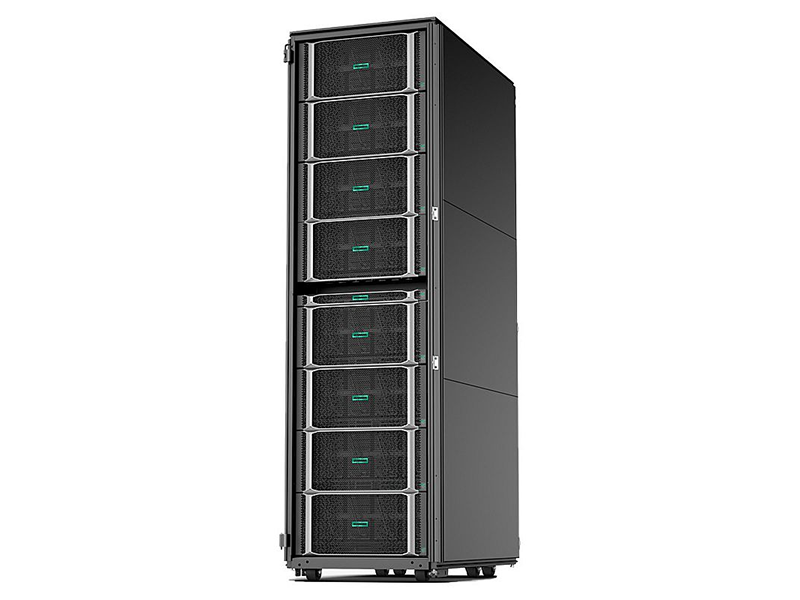

Full Rack View

HPE ServicesServices:

HPE Pointnext

Access expertise at every step of your IT journey with HPE Pointnext Services. Advisory Services focuses on your business outcomes and goals, to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services help speed up time-to-production and keep your IT stable and reliable.

Operational Services

  • HPE Datacenter Care helps modernize and simplify IT operations. Partner with an assigned account team, access technical expertise, an enhanced call experience gives you priority access, choose hardware and software support, implement proactive monitoring to help stay ahead of issues, and access HPE IT best practices and IP.
  • HPE Flexible Capacity offers an enhanced call experience and helps reduce problems with personalized proactive reports and advice. This also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.).
  • HPE Foundation Care helps when there is a problem and has a choice of response levels. Collaborative software support is included and provides troubleshooting help for ISVs running on your server.

Other Related Services

Defective Media Retention
Defective Media Retention is optional and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE Service Credits
HPE Service Credits offers a menu of technical services, access additional resources, and specialist skills.

HPE Education Services
HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Documentation:

Download the HPE Superdome Flex Server Datasheet (.PDF)
