HPE ProLiant Gen12 rack and tower servers

Ensures a secure foundation to power new workloads

HPE ProLiant DL Gen 12 Servers

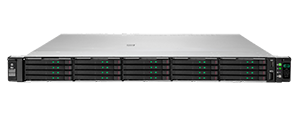

HPE ProLiant Compute DL320 Gen12 Server

Processor: Intel Xeon 6 processors, 8 to 144 core 3.5GHz max
RAM: 4.0 TB
Drive supported: Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SDDs
Power Supply: 1000W, 1500W, or 2400W Titanium Hot Plug Modular

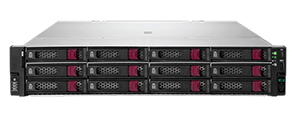

HPE ProLiant Compute DL340 Gen12 Server

Processor: Intel Xeon 6 processors, 8 to 144 core 3.5GHz max
RAM: 4.0 TB
Drive supported: Up to 12 LFF SAS/SATA, Up to 24 SFF SAS/SATA/NVMe, Up to 36 EDSFF drives
Power Supply: 1000W, 1500W, 2400W, or 3200W Titanium Hot Plug Modular

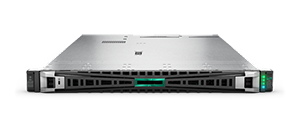

HPE ProLiant Compute DL360 Gen12 Server

Processor: Intel Xeon 6 Scalable processors, 8 to 144 core 4.0GHz max
RAM: 8 TB
Drive supported: Up to 4 LFF SAS/SATA HDDs or SSDs, optional 1 OS Boot device
Power Supply: 800W, 1000W, 1600W, 1800-2200W, or 3200W Platinum/Titanium Hot Plug Kit

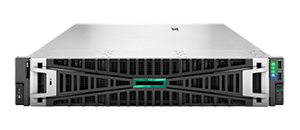

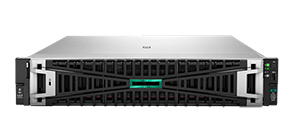

HPE ProLiant Compute DL380 Gen12 Server

Processor: Intel Xeon 6 processors, 8 to 144 core 3.9GHz max
RAM: 8 TB
Drive supported:8 or 12 LFF SAS/SATA/SSD 8, 16, or 24 SFF SAS/SATA/SSD
Power Supply: 800W, 1000W, 1600W or 1800W-2200W Dual hot-plug redundant

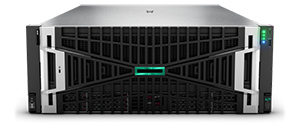

HPE ProLiant Compute DL380a Gen12 Server

Processor: 6th Generation Intel Xeon, 64-144 Core 2.4GHz
RAM: 4 TB - RDIMM
Drive supported: SFF NMVE and EDSFF
Power Supply: Up to 8 M-CRPS

HPE ProLiant Compute DL384 Gen12 Server

Processor: NVIDIA Grace CPU and Hopper GPU
Drive supported: Up to 8 EDSFF NVMe Gen5 drives
Power Supply: Up to 4 HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kits

HPE ProLiant ML Gen 12 Servers

HPE ProLiant Compute ML350 Gen12 Server

Power growing edge SMB, ROBO and specialized applications with this scalable 2P Tower server.

Availability

Six of the eight new HPE ProLiant Compute Gen12 servers featuring upcoming Intel Xeon 6 processors will be available Q1 2025.
This includes HPE ProLiant Compute DL320, DL340, DL360, DL380, DL380a and ML350 Gen12 servers.
HPE Synergy 480 and HPE ProLiant Compute DL580 Gen12 servers are expected Summer 2025.
The HPE ProLiant Compute Gen12 portfolio will be available standalone or via HPE GreenLake

Overview

HPE introduces next-generation ProLiant servers engineered for advanced security, AI automation and greater performance.

HPE ProLiant Compute Gen12 portfolio meets federal security certification standards, boosts IT productivity with AI-driven insights and drives 65% power savings

It includes eight new HPE ProLiant Compute Gen12 servers with new Intel& Xeon& 6 processors for data center and edge environments. The new introductions include the HPE ProLiant Compute DL320, DL340, DL360, DL380, DL380a, DL580, and ML350 Gen12 servers, as well as the HPE Synergy 480 Gen12 server.

HPE ProLiant Compute Gen12 Servers feature:

Next-Level Security

HPE Integrated Lights Out (iLO) 7 introduces an enhanced and dedicated security processor called secure enclave that is engineered from the ground up as HPE intellectual property.
HPE ProLiant Compute servers with HPE iLO 7 will help organizations safeguard against future threats as the first server with quantum computing-resistant readiness and meet the requirements for a high-level cryptographic security standard, the FIPS 140-3 Level 3 certification¹.

Servers Optimized for Performance and Energy Efficiency

New additions to the HPE ProLiant Compute Gen12 portfolio are right-sized to address demanding workloads that include AI, data analytics, edge computing, hybrid cloud, and virtual desktop infrastructure (VDI) solutions.
Addressing the exponential growth in power demands placed on data centers, the HPE ProLiant Compute Gen12 portfolio is engineered to optimize performance, energy efficiency and cost with up to 41% better performance per watt compared to legacy enterprise systems².
HPE ProLiant Compute Gen12 servers deliver up to 65% in power savings per year³ and enable organizations to free up data center capacity with one Gen12 server providing the same compute performance as seven Gen10 servers⁴.
To meet customer demand for more energy efficient data centers, HPE is offering optional direct liquid cooling (DLC) on Intel-based HPE ProLiant Compute Gen12 one-socket and two-socket rack servers.

AI-Driven Productivity

HPE Compute Ops Management is a cloud-based software platform that helps customers secure and automate server environments.
All new HPE Compute Ops Management features, including AI-informed insights, new map-based visibility, and third-party tool integration, will be available to HPE ProLiant Compute Gen10 servers and newer.

Compare Models - HPE ProLiant Compute Gen12 DL Servers :

Technical specifications	DL320	DL340	DL360	DL380	DL380a
Processor type	Intel
Processor family	Intel® Xeon® 6 processors		Intel® Xeon® 6 Scalable processors
Processor core available	8 to 144 core, depending on processor				64 to 144 core, depending on processor
Processor cache	48 to 336 MB L3, total, depending on processor	48 - 336 MB L3, depending on processor		2.5 MB to 112.5 MB L3, depending on processor	-
Processor number	1	1	1 or 2	1 or 2	2
Processor speed	3.5 GHz maximum, depending on processor		4.0 GHz maximum, depending on processor	3.9 GHz maximum, depending on processor	2.4 GHz maximum, depending on processor
Maximum memory	4.0 TB, when populated with 256 GB DDR5 Memory		8 TB with 256 GB DDR5		4 TB - RDIMM (2 TB per processor)
Memory slots	16		32 DDR5 DIMM slots (16 per processor)	32	32 DIMM slots
Memory type	HPE DDR5 Smart Memory
Drive supported	Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SDDs, depending on model. Up to 12 LFF SAS/SATA HDDs or SSDs, depending on the model. Up to 20 EDSFF E3.s 1T, depending on model. Optional RAID 1 NVMe M.2 Boot device (Internal or external accessible from rear wall or front cage with 2x NVMe M.2 incorporated, depending on model).	Up to 12 LFF SAS/SATA, Up to 24 SFF SAS/SATA/NVMe, Up to 36 EDSFF drives, depending on chassis type and system configuration	Up to 4 LFF SAS/SATA HDDs or SSDs, optional 1 OS Boot device (Internal, external accessible from rear wall); Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.3 SSDs, optional 1 OS Boot device (Internal, external accessible from rear wall); Up to 10 SFF/20 E3.S to be mixed, optional 1 OS Boot Device (Internal, external accessible from rear wall or front cage), Optional 2 front OCP NICs	8 or 12 LFF SAS/SATA/SSD 8, 16, or 24 SFF SAS/SATA/SSD, depending on configuration. 6 SFF rear drive optional or or 2 SFF rear-drive optional, 20 SFF NVMe optional, NVMe support through Express Bay will limit maximum drive capacity, depending on model.	SFF NMVE and EDSFF
Power supply type	1000W, 1500W, or 2400W Titanium Hot Plug Modular - Common Redundant Power Supply (M-CRPS)	1000W, 1500W, 2400W, or 3200W Titanium Hot Plug Modular - Common Redundant Power Supply (M-CRP)	HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit	800W, 1000W, 1600W or 1800W-2200W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies, depending on model	Up to 8 M-CRPS. Single 1+1 redundancy for system board. Dual 2+1 redundancy for GPUs.
Network controller	Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0). Please refer to the QuickSpecs for network card choices.		1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor, depending on model.		-
Storage controller	Optional - HPE MR216i-o, MR216i-p, MR408i-o, MR408i-p, MR416i-o, and MR416i-p storage controllers.		Optional - Minimum 1 to be selected. Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0 in rear/front).	HPE MR216i-o and/or MR216 i-p, HPE MR416i-o and/or HPE MR416i-p, HPE MR408e-p, HPE 408i-0 and/or HPE MR408i-p, depending on mode	-
Form factor	1U Rack	2U Rack	1U Rack	2U Rack	4U Rack

Smart Choice

Shop fully configured versions of popular servers with the HPE Smart Choice purchase program.

HPE ProLiant Gen11 servers

Compute engineered for your hybrid world. Explore HPE ProLiant Gen11 Server models, features and QuickSpecs.

Rack Servers

Buy HPE Rack Servers for reliable data center solutions. Explore our rack mount server models, features and specs. Streamline operations with HPE rack servers.

Tower Servers

Buy HPE Tower Servers which offer versatile solutions for small to large businesses. Ideal for diverse workloads, explore HPE Tower Servers features and specs.

Note:
¹ FIPS 140-3 Level 3 certification is a standard adopted by National Institute of Standards and Technology (NIST) and Commercial National Security Algorithm (CNSA) 2.0 to verify cryptographic modules.
² Based on internal power and performance measurements comparing an 86-core HPE ProLiant Compute Gen12 server compared to a similarly configured Gen10 server.
³ Reflects results posted on spec.org SPECrate2017_int_base: #20893 published as of 01-01-2025. The performance per watt advantage is based on internal power and performance measurements on similar configured high energy efficient servers and compared against an estimated 86-core Gen12 system. SPEC and SPECrates are registered trademarks of the Standard Performance Evaluation Corporation (SPEC).
⁴ Reflects results posted on spec.org SPECrate2017_int_base: #20893 published as of 01-01-2025 that compares estimated thermal design power of a 48-core HPE ProLiant Compute Gen12 server. SPEC and SPECrates are registered trademarks of the Standard Performance Evaluation Corporation (SPEC).
