Overview:
Are you looking for a server with advanced scalability for GPUs that can enhance the performance of your AI inferencing workloads?
The HPE ProLiant DL380a Gen11 server is a rack-optimized, 2U 2P solution that delivers breakthrough performance with advanced GPU accelerators on a ultra-scalable architecture.
Powered by 4th and 5th Gen Intel® Xeon®® Scalable Processors with up to 56 cores and four double-wide GPUs as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380a Gen11 server is a perfect solution for entry to -level AI workloads.
The HPE ProLiant DL380a Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What's New
- Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that support up to 64 cores at 350W and 24 DIMMs for DDR5 memory at speeds up to 5600 MHz.
- Support for 4 double-wide or 8 single-wide GPUs in a 2U server for intensive compute acceleration.
- Well-balanced I/O performance and capabilities across processors.
- Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 4 x16 PCIe Gen5 and 2 OCP slots.
- Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
- Support for up to 3 TB total DDR5 memory with 12 DIMM channels per processor delivers increased performance and lower power requirements.
Features:
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant DL380a Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380a Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows.
These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.
Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.
Trusted Security by Design: Uncompromising, Fundamental, and Protected
The HPE ProLiant DL380a Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.
The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which secure the server hardware foundation on which critical apps run and better protect data in memory.
HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.
HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.
Customized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant DL380a Gen11 server is an excellent choice for AI, compute and graphics-intense workloads requiring maximum core count, GPU capabilities, and network and I/O bandwidth.
Harness major computer performance with the HPE ProLiant DL380a Gen11 server which is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores per processor, 350W, and up to 3 TB of memory.
The HPE ProLiant DL380a Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 4 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.
It provides 12 DIMM channels per processor for up to 3 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Hardware Specs:
HPE ProLiant DL380a Gen11 server

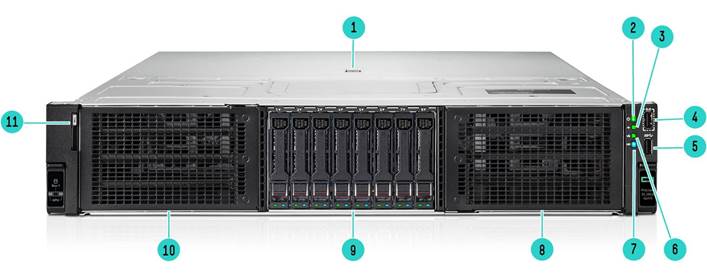

Front View – 8SFF drive bay shown
| 1 |
Quick removal access panel |
| 2 |
Power On/Standby button and system power LED |
| 3 |
Health LED |
| 4 |
iLO front service port |
| 5 |
USB 3.0 port |
| 6 |
NIC status LED |
| 7 |
UID button/LED |
| 8 |
GPU cage 2 (1 or 2 DW or 4 SW GPUs) |
| 9 |
Drive Box 1 (8 SFF or EDSFF drives) |
| 10 |
GPU cage 1 (1 or2 DW or 4 SW GPUs) |
| 11 |
Serial number label pull tab |

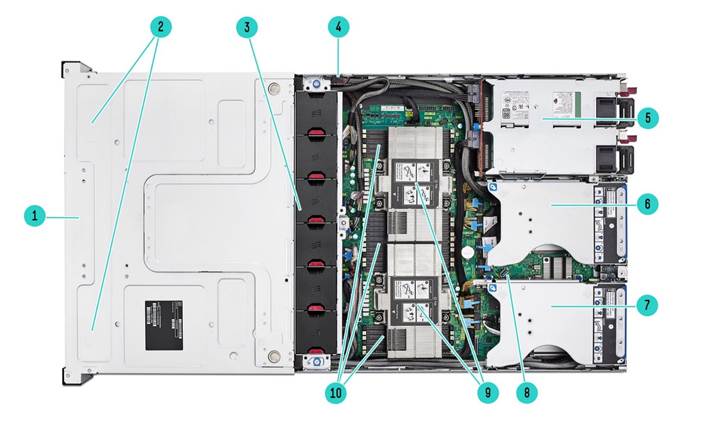

Internal View
| 1 |
8 SFF NVMe or EDSFF drive bay |
| 2 |
GPU cages for 4 double-wide or 8 single-wide GPUs |
| 3 |
6 hot-plug fans with N+1 redundancy |
| 4 |
Chassis intrusion detection (optional) |
| 5 |
Up to 4 hot-plug, redundant power supplies |
| 6 |
Secondary Riser |
| 7 |
Primary Riser |
| 8 |
Internal USB 3.0 port |
| 9 |
2 processors (heatsinks showing) |
| 10 |
DDR5 DIMM slots (support up to 24 DIMMs) |

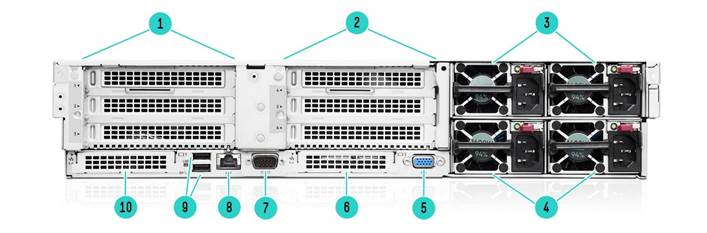

Rear View
| 1 |
Primary Riser. PCIe 5.0 slots (slots 2 & 3) |
| 2 |
Secondary Riser. PCIe 5.0 slots (slots 5 & 6) |
| 3 |
Power supply 3 and 4 (for DW GPU auxiliary power) |
| 4 |
Power supply 1 and 2 (for the system board) |
| 5 |
VGA connector |
| 6 |
OCP 3.0 slot 18/OCP2 (optional) |
| 7 |
Optional serial port |
| 8 |
Dedicated iLO management port |
| 9 |
2 USB 3.0 ports |
| 10 |
OCP 3.0 slot 17/OCP1 (PCIe 5.0 x8, upgradable to x16) |
