Overview:
Looking for a dense but highly scalable server for your data center application and virtualization needs? Looking for a quad socket enterprise server that is highly scalable for your data intensive workloads in your data center?
The HPE ProLiant DL560 Gen11 server is a high-density, four-socket (4S) server with high performance, scalability, and reliability, all in a 2U chassis. Powered by 4th Gen Intel® Xeon® Scalable Processors with up to 60 cores, the HPE ProLiant DL560 Gen11 server offers greater processing power, up to 16 TB of faster DDR5 memory, I/O of up to six PCIe 5.0 slots, and up to 2 OCP slots.
The HPE ProLiant DL560 Gen11 server is an excellent choice for business critical, virtualization, server consolidation, compute, business processing, and in-memory database and data analytics workloads requiring maximum core count, memory capacity, and network and I/O bandwidth.
What's New
- Powered by the 4th Generation Intel® Xeon® Scalable Processors with modern technology that support up to 60 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 4800 MHz.
- Support for up to 16 TB total DDR5 memory with 8 DIMM channels per processor that deliver increased performance and lower power requirements.
- Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
- Includes the HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
- Supports hot-pluggable, high-availability RAID M.2 boot options.
- Supports up to six single wide (SW) or two double wide (DW) GPUs to accelerate graphic-intense workloads.
Features:
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant DL560 Gen11 servers are engineered for your hybrid world and can simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.
These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.
Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.
Trusted Security by Design: Uncompromising, Fundamental, and Protected
The HPE ProLiant DL560 Gen11 server utilizes the HPE Silicon Root of Trust, which features a fundamental approach to security that provides zero-trust architecture at the silicon level and verifies all server-essential firmware is free from malware or compromised code.
This server, powered by 4th Gen Intel® Xeon® Scalable Processors, adds hardware- and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help protect the server hardware foundation on which critical apps run and safeguard data in memory.
HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and protect servers at the edge with IDevID certificates installed by default.
HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.
Optimized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant DL560 Gen11 server is an excellent choice for compute and in-memory database and data analytics workloads requiring maximum core count, memory capacity, and network and I/O bandwidth.
Harness major computer performance. The HPE ProLiant DL560 Gen11 server is powered by the 4th Generation Intel® Xeon® Scalable Processors with modern technology that supports up to 60 cores per processor, 350W, and up to 16 TB of memory.
The HPE ProLiant DL560 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 6 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.
It provides 8 DIMM channels per processor for up to 16 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Available in an As-a-Service Experience
The HPE ProLiant DL560 Gen11 server is supported by HPE GreenLake to simplify IT infrastructure management across your entire hybrid estate. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
Hewlett Packard Enterprise provides customers with choices in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide on-premises pay-per-use consumption with HPE GreenLake.
Hardware Specs:
HPE ProLiant DL560 Gen11 server

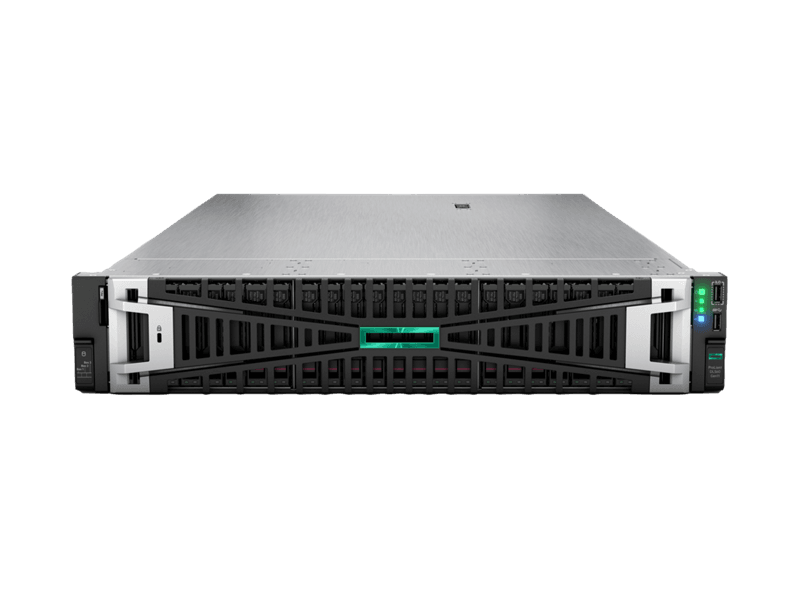

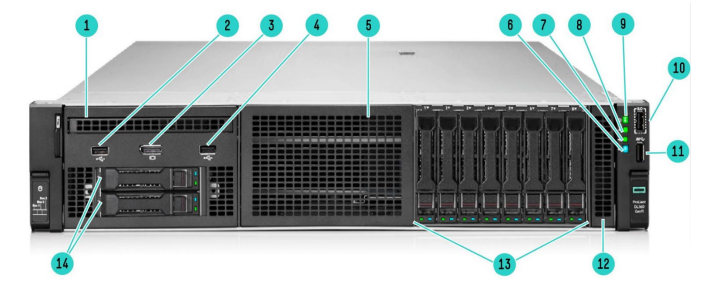

Front View – SFF chassis with optional Universal Media bay shown
| 1 |
DVD ROM (Optional) (or Box 1 can switch to 8SFF cage) |
| 2 |
USB 2.0 port |
| 3 |
Display port |
| 4 |
USB 2.0 port |
| 5 |
8 SFF HDD/SSD/NVMe |
| 6 |
UID button LED |
| 7 |
NIC status LED |
| 8 |
Health LED |
| 9 |
Power On/Standby button/LED |
| 10 |
iLO Service Port |
| 11 |
USB 3.2 port |
| 12 |
SID (Optional) |
| 13 |
8 SFF HDD/SSD/NVMe |
| 14 |
2 SFF HDD/SSD/NVMe |

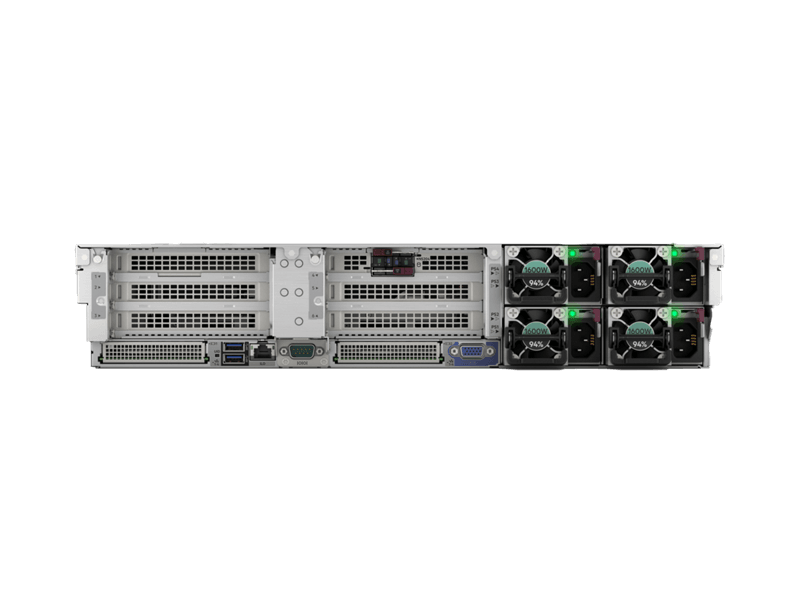

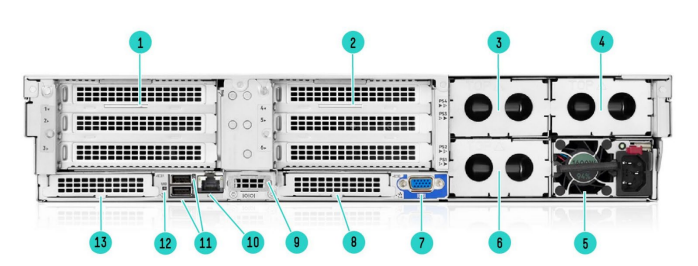

Rear View – Standard for all DL560 Gen11
| 1 |
3 PCIe slots (Primary riser) (Slot 1-3) |
| 2 |
3 PCIe slots (Secondary riser) (Slot 4-6) |
| 3 |
Power supply 4 |
| 4 |
Power supply 3 |
| 5 |
Power supply 1 |
| 6 |
Power supply 2 |
| 7 |
Video (VGA) port |
| 8 |
OCP 2 (Slot 15) |
| 9 |
Serial port (optional) |
| 10 |
iLO Management Port |
| 11 |
USB 3..2 ports (2) |
| 12 |
UID |
| 13 |
OCP 1 (Slot 14) |

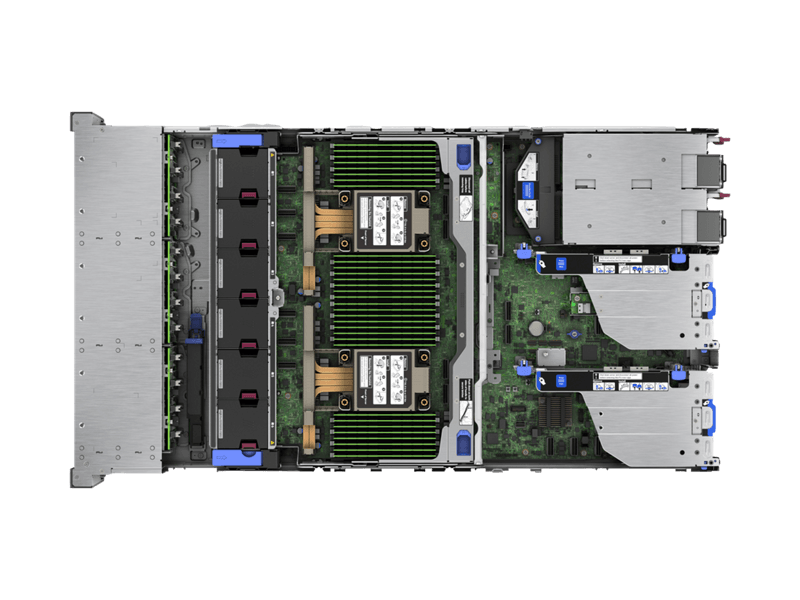

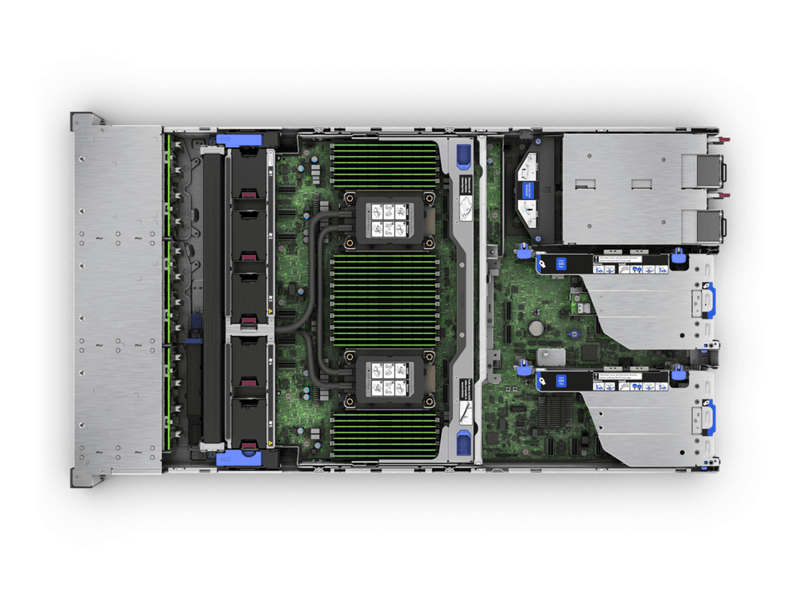

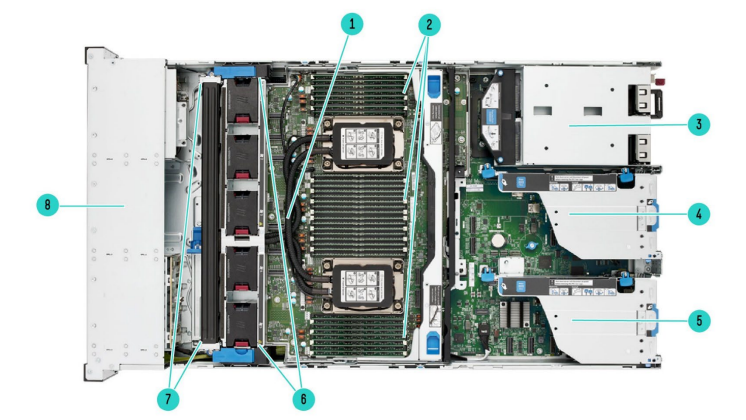

Internal View Liquid Cooling Chassis
| 1 |
Liquid cooling tube |
| 2 |
DDR5 DIMMs |
| 3 |
Power supplies |
| 4 |
3 PCIe slots (Secondary riser) |
| 5 |
3 PCIe slots (Primary riser) |
| 6 |
Redundant Fans |
| 7 |
Liquid Cooling radiator |
| 8 |
Drive cages |
Services:
HPE SERVICES
No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From strategy and planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting services
Experts can help you map out your path to hybrid cloud and optimize your operations.
Managed services
HPE runs your IT operations, giving you unified control, so can focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources.
- HPE Complete Care Service: a modular service designed to help optimize your entire IT
environment and achieve agreed upon IT outcomes and business goals. All delivered by
an assigned team of HPE experts.
- HPE Tech Care Service: the operational service experience for HPE products. The service
provides access to product specific experts, an AI driven digital experience, and general
technical guidance to help reduce risk and search for ways to do things better.
Lifecycle Services
Address your specific IT deployment project needs with tailored project management and deployment services.
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Create learning paths to expand proficiency in a specific subject. Schedule training in a way
that works best for your business with flexible continuous learning options.
The Defective Media Retention (DMR) service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. Comprehensive Defective Material Retention (CDMR) allows you to keep all data retentive components.
HPE GREENLAKE
HPE GreenLake edge-to-cloud platform is HPE’s market-leading as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and
edges – with one unified operating model, on premises, fully managed in a pay per use model.
