Overview:
Have Cloud or IT-as-a-Service (ITaaS) environments forced you to settle for Tier-1 storage that compromises your data center?

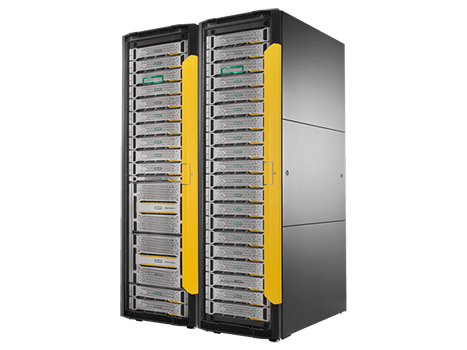

HPE 3PAR StoreServ 20000 Storage is an enterprise flash array with more than 3.8M IOPS, sub-millisecond latencies, a 16x density advantage over the competition1, and scalability of over 20 PB of usable capacity for massive consolidation – for block and file workloads as well as object access – with Quality of Service (QoS). The flash-optimized architecture features the HPE 3PAR Gen5 ASIC for silicon-based hardware acceleration, including inline deduplication, compression, data packing, thin technologies and other compaction technologies that can reduce acquisition and operational costs without compromising performance. Configuration options are available for all-flash models and combined flash and HDD models. HPE 3PAR StoreServ 20000 also includes at no extra charge data protection with HPE Recovery Manager Central.
What's New
- Protect up to 100% of your SSD investment and upgrade to HPE Primera with new HPE Primera upgrade conversion kits2.
- Expanded Fibre Channel replication support between HPE 3PAR 9000 and HPE Primera.
- Empower data at the speed of memory with the industry’s first Tier-1 storage with Storage Class Memory (SCM) and NVMe.
- Eliminate storage networking bottlenecks and accelerate performance for all-flash with new HPE 3PAR 32Gb FC.
Features:
Accelerate Fibre Channel Performance for HPE 3PAR All Flash Storage
HPE 3PAR 9000/20000 32Gb FC HBA delivers up to 2X performance compared to the 16Gb 4-port FC HBA in a smaller port footprint for mixed workloads and FC port consolidation.
Resilient so you can Consolidate with Confidence
The HPE 3PAR StoreServ 20000 Storage maintains 99.9999% availability [3] with a complete set of persistent technologies within your HPE 3PAR array.
Consolidate with confidence and protect against interference from multiple partitions “noisy” neighbors by delivering consistent Quality of Service (QoS).
Achieve extreme data protection for a complete enterprise disaster recovery plan by extending peer persistence support for a third data center across geographical distances.
Simplify backup and restore with HPE Recovery Manager Central (RMC) for application-aware, storage-integrated data protection.
Futureproof to Support Hybrid and On-demand Computing
Get ready for what’s next with the HPE 3PAR StoreServ 20000 Storage emerging technologies, such as storage class memory (SCM) and Non-Volatile Memory Express (NVMe) to protect your investments.
Get All-Flash on premise for a low cost per GB per month, with HPE Flash Now Program.
Modernize your EMC®, HDS®, and IBM® storage infrastructure with painless, nocost data migration. HPE 3PAR Online Import seamlessly moves data between any HPE 3PAR StoreServ array.
Automated SAN configuration with built-in target driven federated zoning, with HPE Smart SAN.
Flexible to Meet Unpredictable Business Demands
The HPE 3PAR StoreServ 20000 Storage supports the most rigorous, ondemand infrastructure with a virtually limitless, elastic pool of storage.
Runs workloads at the right cost and service level agreement (SLA) with oneclick workload balancing.
Slashes management overhead with unified management of block, file, and object access and storage that is self-configuring, self-provisioning, and selfoptimizing.
Technical Specifications:
| HPE 3PAR StoreServ 20000 Storage Specifications |
| Drive description |
(1920) SFF SAS/MDL SAS/SSD or
(1024) SFF/LFF SSD or
(960) LFF MDL SAS |
| Capacity |
6 PB Raw
15 PB Useable
Based on 3.84 TB cLMC SSDs and HPE 3PAR compaction technologies |
| Host interface |
32 Gb/sec Fibre Channel (10) Ports per controller
16 Gb/sec Fibre Channel (20) Ports per controller or
10 GbE iSCSI/FCoE (10) Port per controller or
10Gb Ethernet (6) |
| Enclosures |
(96) 3PAR 12 Gb/sec SAS SFF Drive Enclosure
(96) 3PAR 12 Gb/sec SAS LFF Drive Enclosure |
| Storage controller |
(8) 3PAR 6-core 2.5 GHz 20800 Controller Node
(8) 3PAR 8-core 2.5 GHz 20850 Controller Node
(4) 3PAR 8-core 2.5 GHz 20450 Controller Node
(8) 3PAR 8-core 2.5 GHz 20840 Controller Node
Maximum, depending on model |
| Maximum drives per enclosure |
24 |
| Cache |
51.6 TiB
Maximum, depending on model |
| Availability features |
Redundant power supplies, battery backup units, Mesh active controllers, Persistent Cache, Drive sparing and Multiple OS instances. |
| Compatible operating systems |
HP-UX
HPE OpenVMS
IBM AIX
Microsoft Windows Hyper-V
Microsoft Windows Server 2012 R2
Citrix XenServer
Oracle Linux
Oracle Enterprise Linux
Oracle UEK
Oracle Solaris
Ubuntu Server Edition 12.04 LTS
Red Hat Enterprise Linux (RHEL)
VMware ESX and ESXi
SLES11 SP3
Apple OS X
Also includes Red Hat Virtualization, IBM Virtualization and SLES Virtualization |
HPE Services:
No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From strategy and planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.
Consulting Services
Experts can help you map out your path to hybrid cloud and optimize your operations.
Managed Services
HPE runs your IT operations, giving you unified control, so can focus on innovation.
Operational services
Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources.
- HPE Complete Care Service: a modular service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals. All delivered by an assigned team of HPE experts.
- HPE Tech Care Service: the operational service experience for HPE products. The service provides access to product specific experts, an AI driven digital experience, and general technical guidance to help reduce risk and search for ways to do things better.
Lifecycle Services
Address your specific IT deployment project needs with tailored project management and deployment services.
HPE Education Services
Training and certification designed for IT and business professionals across all industries. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.
The Defective Media Retention (DMR) service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.
Comprehensive Defective Material Retention (CDMR) allows you to keep all data retentive components.
HPE GREENLAKE
HPE GreenLake edge-to-cloud platform is HPE’s market-leading as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model, on premises, fully managed in a pay per use model.
[1] Based on publicly available information of six EMC VMAX 850 systems totaling 24 PB of usable SSD capacity as compared to the HPE 3PAR 20850 with 24 PB usable SSD capacity (using a 4:1 compaction ratio)
[2] Conditions apply. Contact your HPE account representative for more information
[3] Based on HPE analysis of public information for portfolios spanning IDC mid-range and high-end price bands. https://h20195.www2.hpe.com/V2/GetDocument.aspx?docname=4AA5-2846ENW
