Overview:
Are you looking for a scalable, low-cost performance server solution for your virtualized and software-defined compute workloads?
The HPE ProLiant DL325 Gen11 server is a low-cost 1U 1P solution that delivers exceptional value balancing compute, memory and network bandwidth at 1P economics. Powered by 4th and 5th Generation AMD
EPYC™ Processors with up to 160 cores, increased memory bandwidth (up to 3 TB, 6000 MT/s), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to two DW GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads. The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the
server will boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
What's New
- Powered by the 4th and 5th Generation AMD EPYC™ Processors with 5nm technology that supports up to 160 cores at 400W, 1150 MB of L3 cache, and 12 DIMMs for DDR5 6000 MT/s memory.
- 12 DIMM channels per processor for up to 3 TB total DDR5 6000 MT/s memory with increased memory bandwidth and performance, and lower power requirements.
- Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5, two OCP 3.0 slots, and EDSFF E3.S 1T drives.
- Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
·Supports hot-pluggable, high-availability RAID M.2 boot options.
- Supports closed-loop liquid cooling heat sink for high wattage processors.
Features:
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant DL325 Gen11 servers are engineered for your hybrid world. The HPE ProLiant Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment and instant scalability for seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows.
These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.
Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.
Trusted Security by Design: Uncompromising, Fundamental, and Protected
The HPE ProLiant DL325 Gen11 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.
HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. This helps ensure malicious code is contained, and healthy servers are protected.
HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default.
HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, and providing a fast path to bring a server back online and into normal operations.
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.
Customized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
Harness major computer performance. The HPE ProLiant DL325 Gen11 server is powered by the 4th and 5th Generation AMD EPYC™ Processors with 5nm technology that supports up to 160 cores, 400W, and 1150 MB of L3 cache.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 2 OCP slots, improve I/O throughput and reduce latency.
Increase memory bandwidth and performance, and lower power requirements with 12 DIMM channels per processor for up to 3 TB total DDR5 6000 MT/s memory.
Provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Hardware Specs:
HPE ProLiant DL325 Gen11 server

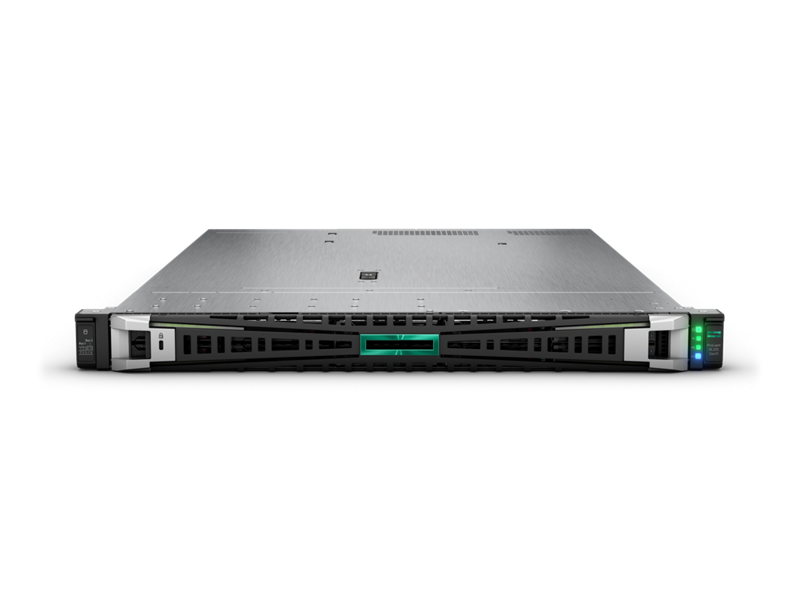

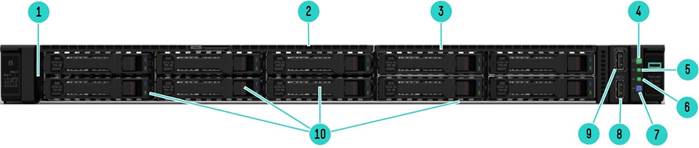

Front View - 8 SFF + optional 2 SFF Drive Bay shown
| 1 |
Serial number pull tab |
| 2 |
Quick removal access panel |
| 3 |
2 SFF Cage Bay (Optional - shown)* |
| 4 |
Power On/Standby button and system power LED |
| 5 |
Health LED |
| 6 |
NIC status LED |
| 7 |
Unit ID button/ LED |
| 8 |
USB 3.2 Gen1 port |
| 9 |
iLO Service Port |
| 10 |
8 SFF Cage Bay |
Notes:
- * Optional: Optical Drives

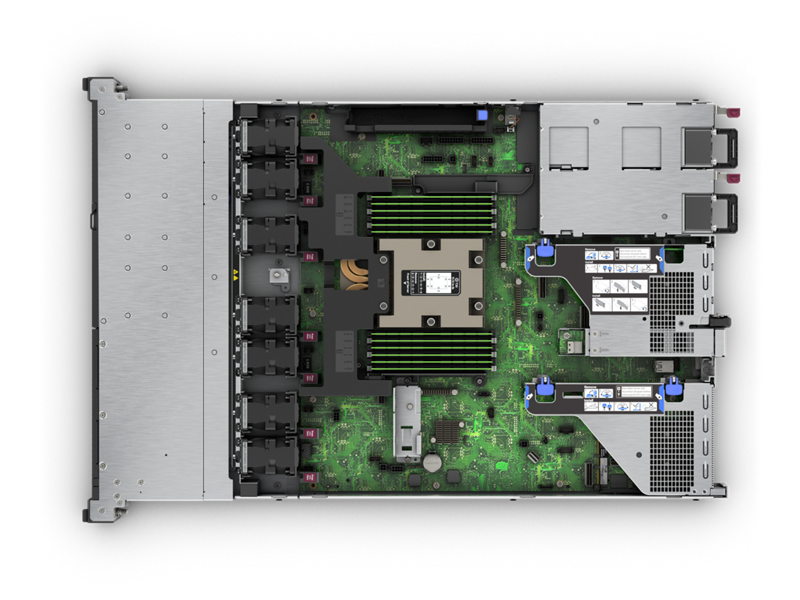

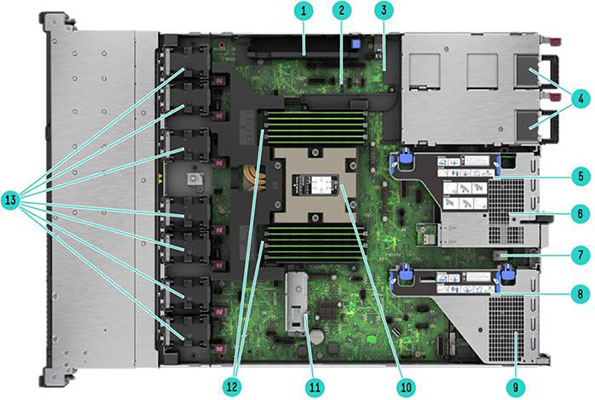

Internal View – Standard for all HPE ProLiant DL325 Gen 11
| 1 |
Megacell battery holder |
| 2 |
Hard drive backplane power connectors |
| 3 |
Chassis intrusion detection connector |
| 4 |
Up to 2 Hot Plug redundant HPE Flexible Slot Power supplies |
| 5 |
Secondary PCIe 5.0 riser |
| 6 |
OCP 3.0 Slot 22 (Under) |
| 7 |
Internal Dual USB 3.2 Gen1 port |
| 8 |
Primary PCIe 5.0 riser |
| 9 |
OCP 3.0 Slot 21 (Under) |
| 10 |
Processor shown with standard heat sink1 (Up to 1) |
| 11 |
FHFL PCIe card holder |
| 12 |
DDR5 DIMM slots2 |
| 13 |
Hot plug fans3 |
Notes:
- 1 Optional: Performance Heat Sink and Closed-Loop Liquid Cooling Heat Sink
- 2 Fully populated 12 DIMMs shown
- 3 7 dual rotor standard shown. Optional: Performance Fans and Liquid Cooling Fans

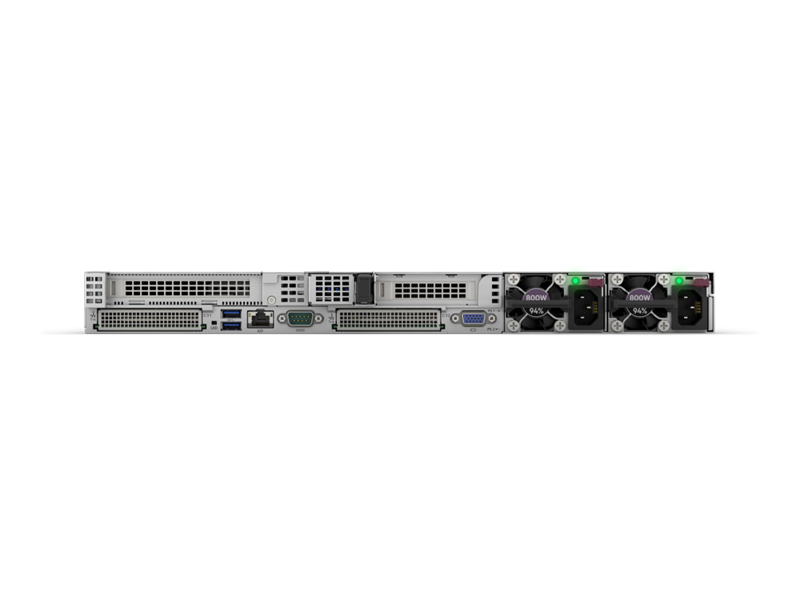

Rear View – Secondary Low Profile Riser Shown
| 1 |
Primary PCIe 5.0 Riser |
| 2 |
Optional NS204i-u hot-plug NVMe boot device |
| 3 |
Secondary PCIe 5.0 Riser1 |
| 4 |
Hot-plug Power Supply 1 and 22 |
| 5 |
Video (VGA) port |
| 6 |
OCP 3.0 slot 22 |
| 7 |
Optional Serial port |
| 8 |
Dedicated iLO management port |
| 9 |
USB 3.1 Gen1 Ports (2) |
| 10 |
Unit ID LED |
| 11 |
OCP 3.0 slot 21 |
Notes:
- 1 low profile and full height options
- 2 Hot-plug Power Supply 2 is optional
