Overview:
Do you need a platform purpose-built to address your High Performance Computing, virtualized, and memory-centric workloads? Try something EPYC. Hewlett Packard Enterprise is extending the worlds' most secure industry standard servers to include the HPE ProLiant DL385 Gen10 server, utilizing the AMD EPYC 7000 Series processors. This platform has been designed with the security you need and the flexibility you require to accommodate demanding enterprise workloads. With up to 64 cores, up to 32 DIMMs, or 4 TB memory capacity and support for up to 24 NVMe drives, the HPE ProLiant DL385 Gen10 server delivers a low cost virtual machine (VM) with unprecedented security.
- We enhanced two popular SKUs to address our customers workload needs. P11747-B21, comes with the popular HPE Smart Array P408i-a SR Gen10 Controller providing storage performance our customers demand.
- Additionally, P11809-B21 comes with the HPE Flexible Slot 800W power supply. The new standard for most of our customer’s; allowing for richer configurations while still maintaining full redundancy.
- The AMD EPYC 7371 is a 16 core, 3.1 GHz CPU with max boost to 3.8 GHz! Perfect for electronic design automation, high-frequency-trading w/enterprise infrastructure, transcoding, web serving and more!
- The AMD EPYC 7261 has 8 core and is 2.5 GHz with all core boost to 2.9 GHz. It also has double the L3 cache over the AMD EPYC 7251. Perfect for your low core count, high-frequency requirements!
- HPE ProLiant DL385 Gen10 now has multiple vSAN ReadyNode configurations, to provide you with the most flexible server options to build your Hyper-Converged Infrastructure.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Features:
Security Innovations
HPE ProLiant DL385 Gen10 server has security protection built in across the server life cycle starting with silicon root of trust. Only Hewlett Packard Enterprise offers industry standard servers with major firmware anchored directly into the silicon.
Millions of lines of firmware code run before server operating system boots. What's more, with Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.
The AMD EPYC processor provides several security related features, including AMD secure processor, secure memory encryption (SME), and secure encrypted virtualization (SEV). These features are used to help enable key security functionality including Secure Root of Trust, Secure Run, and Secure Move.
Flexible Design
HPE ProLiant DL385 Gen10 server has an adaptable chassis, including the modular drive bays that can be configured with up to 30 SFF, up to 19 LFF or up to 24 NVMe drive options along with support for up to 3 double wide GPU options.
HPE Smart Array S100i Software RAID ships standard for embedded m.2 boot, and the redesigned HPE Smart Array Essential and Performance RAID Controllers for performance or additional features including the ability to operate in both SAS and HBA mode.
Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 4x10GbE) and fabric so you can adapt and grow to changing business needs.
This server supports a wide range of operating systems making it suitable for most environments.
World-class Performance
HPE ProLiant DL385 Gen10 server supports industry standard technology leveraging the AMD EPYC 7000 Series Processor with up to 32 cores, 12 Gb SAS and 4.0 TB of HPE DDR4 SmartMemory.
Supports up to three double wide or five single wide graphic processing units (GPUs) for workload acceleration.
Proven Industry Leading Services and Ease of Deployment
HPE ProLiant DL385 Gen10 server comes with a complete set of HPE Pointnext services, delivering confidence, reducing risk, and helping customers realize agility and stability.
Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
HPE Financial Services helps you transform to a digital business with financing option and trade-in opportunities that align to your business goals.
Hardware Specs:
HPE ProLiant DL385 Gen10 Server
The HPE ProLiant DL385 Gen10 Server is redefining price/performance with the new math for virtualized compute. This 2P, 2U server has been designed with flexibility while delivering a high maximum core count and large memory footprint. Choose this purposebuilt platform for virtualization.

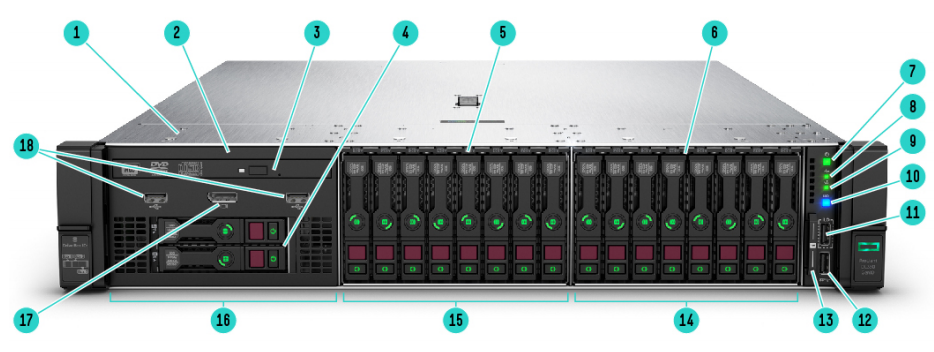

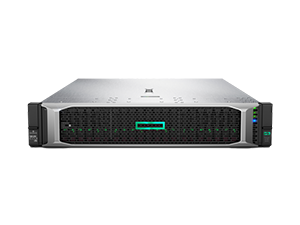

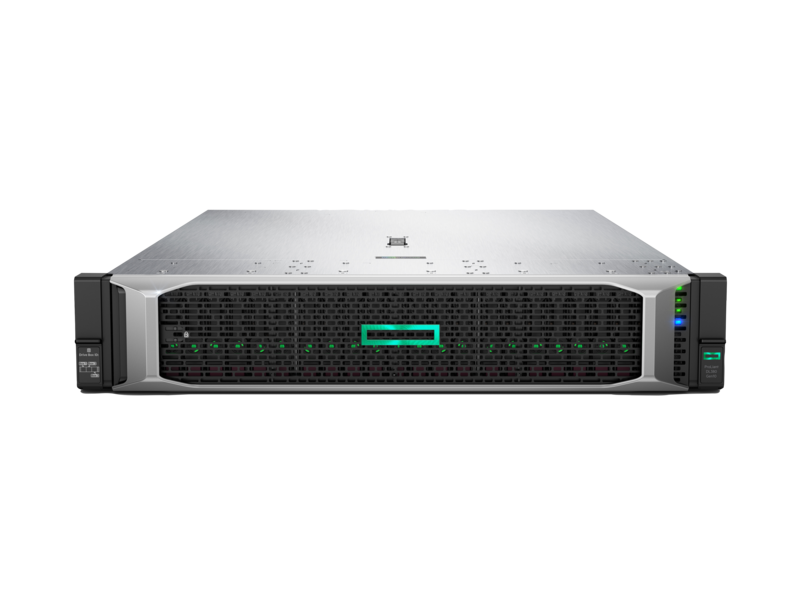

Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown
- Quick removal access panel
- Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)
- Optional Optical drive. Requires Universal Media bay
- Optional 2 SFF HDD, requires optional Universal Media bay
- Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)
- Drive Bay 3. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)
- Power On/Standby button and system power LED button
- Health LED
- NIC status
- UID button
- iLO Front Service Port
- USB 3.0
- Serial label pull tag
- Box 3
- Box 2
- Box 1
- Optional front display port (Via Universal Media Bay)
- Optional USB 2.0 (via Universal Media Bay)

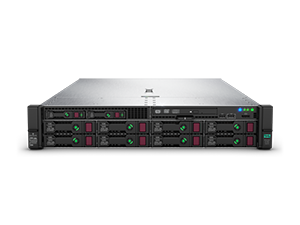

Front View – 8LFF chassis with Universal media bay and optional 2SFF and optical drive shown
- UID button
- Health LED
- NIC status
- Power On/Standby button and system power LED button
- Front display port
- iLO Front Service Port
- Serial label pull tag
- Optional optical drive shown (blank as standard)
- Optional 2 SFF Drive bay, 2 NVMe shown

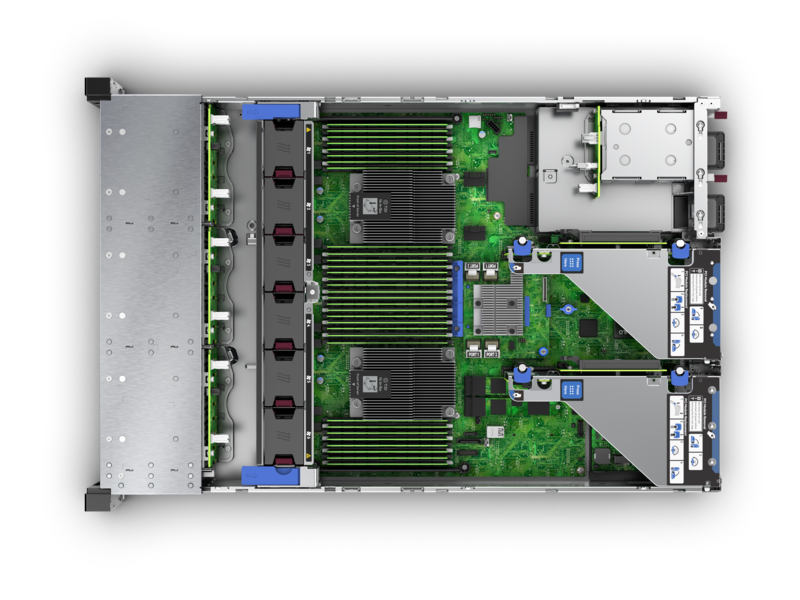

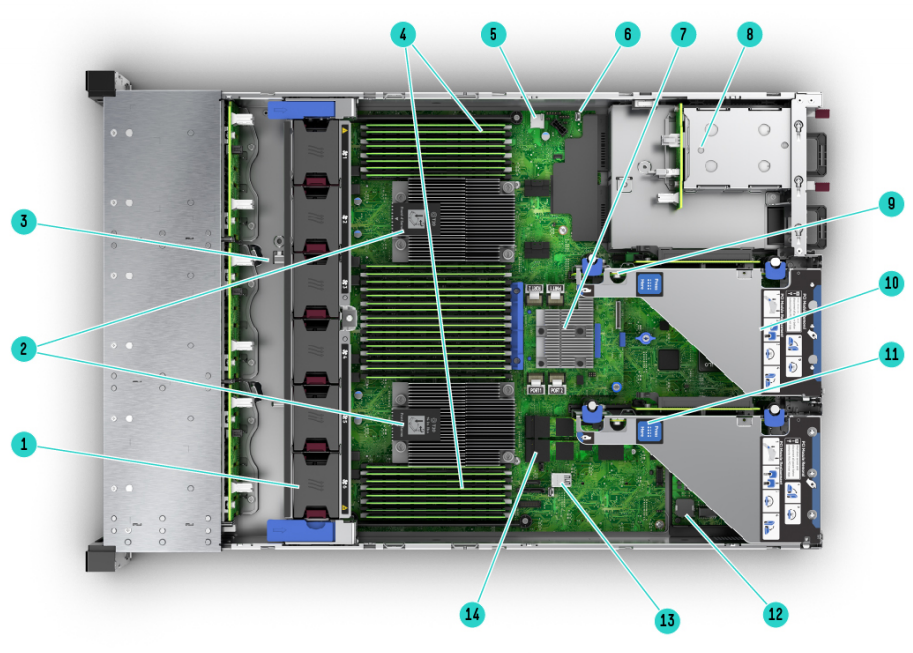

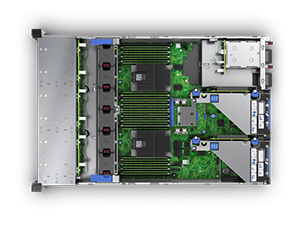

Internal View – 8SFF chassis with optional 2nd CPU, FlexLOM, Smart array shown
- Fan cage shown with 6 standard Hot-plug fans (High Performance temperature fans optional)
- 2 Processors, heatsink showing
- Optional HPE Smart Storage Battery (not shown)
- DDR4 DIMM slots. Shown fully populated in 32 slots (16 per processor)
- MicroSD card slot (Optional Dual Micro-SD option)
- Chassis intrusion detection connector
- Optional HPE Flexible Smart Array Controller (P408i-a shown)
- (Under) Hot Plug redundant HPE Flexible Slot Power supplies
- Connection for second (optional) riser (Requires second CPU)
- Embedded 4x1Gbe NIC
- Primary PCIe riser, standard (Optional double wide GPU riser)
- Optional Flexible LOM slot
- Internal USB 3.0 connector
- Embedded M.2 connectors

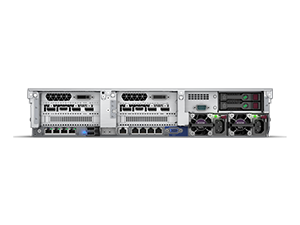

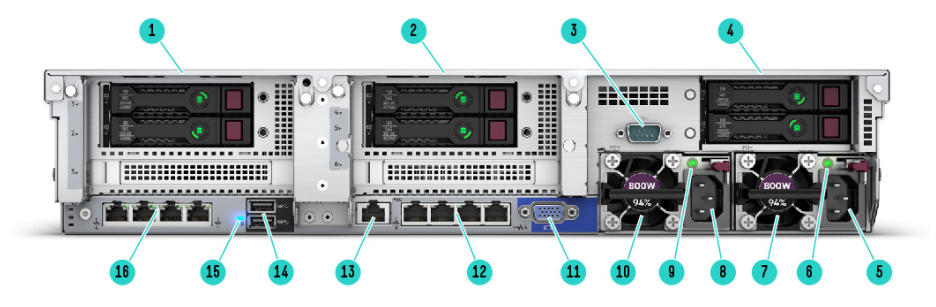

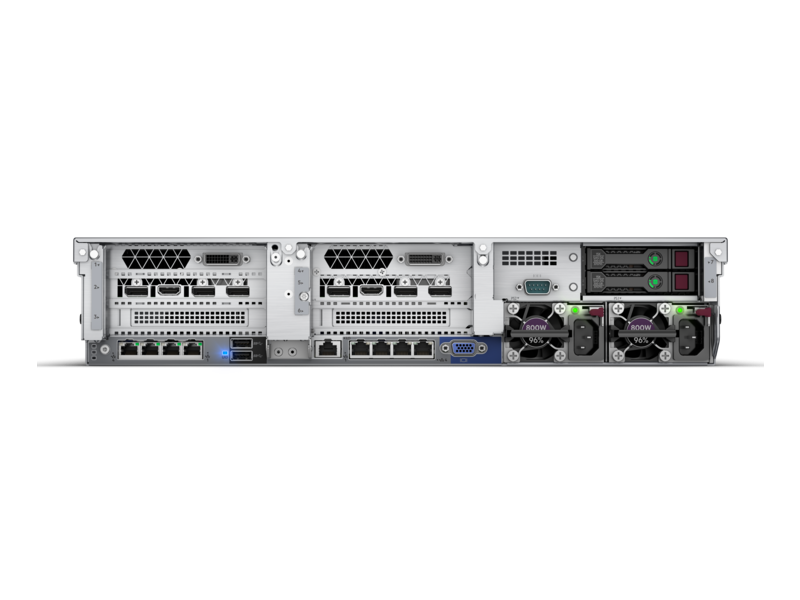

Rear View – With optional FlexLOM, Rear drives and Serial port shown.
- Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives
- Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear
- Optional serial port
- Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)
- Power supply Power connection. Bay 1
- Power supply Power LED. Bay1
- HPE Flexible Slot Power Supply. Bay 1
- Power supply Power connection Bay 2
- Power supply Power LED Bay 2
- HPE Flexible Slot Power Supply Bay 2
- VGA connector
- Embedded 4 x 1GbE Network Adapter
- Dedicated iLO management port
- USB connectors 3.0 (2)
- Unit ID LED
- Optional FlexibleLOM ports (Shown: 4 x 1GbE)
Services:
HPE Pointnext
HPE Pointnext leverages our breadth and depth of technical expertise and innovation to help to accelerate digital transformation. A comprehensive portfolio that includes—Advisory, Professional, and Operational Services is designed to help you evolve and grow today and into the future.
Operational Services
- HPE Flexible Capacity is a new consumption model to manage ondemand capacity, combining the agility and economics of public cloud with the security and performance of on-premises IT.
- HPE Datacenter Care offers a tailored operational support solution built on core deliverables. It includes hardware and software support, a team of experts to help personalize deliverables and share best practices, as well as optional building blocks to address specific IT and business needs.
- HPE Proactive Care is an integrated set of hardware and software support including an enhanced call experience with start to finish case management helping resolve incidents quickly and keeping IT reliable and stable.
- HPE Foundation Care helps when there is a hardware or software problem offering several response levels dependent on IT and business requirements.
Advisory Services includes design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge.
Professional Services helps integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment.
