HPE ProLiant MicroServer Gen10 Plus v2
ProLiant MicroServer


HPE Products
HPE ProLiant MicroServer Gen10 Plus v2
HPE ProLiant MicroServer Gen10 Plus v2 G6405 2-core 16GB-U VROC 4LFF-NHP 180W External PS Server
HPE ProLiant MicroServer Gen10 Plus v2 server with one Intel Pentium G6405 processor, 16 GB memory, four large form factor non-hot plug drive bays, and a 180W external power supply
#P54644-001
Get a Quote!
HPE ProLiant MicroServer Gen10 Plus v2 E-2314 4-core VROC 4LFF-NHP 1TB 180W External PS Server
HPE ProLiant MicroServer Gen10 Plus v2 server with one Intel Pentium E-2314 processor, 16 GB memory, one 1 TB SATA Hard Disk Drive, four large form factor non-hot plug drive bays, and a 180W external power supply
#P54654-001
Get a Quote!
HPE ProLiant MicroServer Gen10 Plus v2 E-2314 4-core 16GB-U VROC 4LFF-NHP 180W External PS Server
HPE ProLiant MicroServer Gen10 Plus v2 server with one Intel Pentium E-2314 processor, 16 GB memory, four large form factor non-hot plug drive bays, and a 180W external power supply
#P54649-001
Get a Quote!

Click here to jump to more pricing!

Overview:

Are you a small office, home office, or small business with branch offices looking to build a customized solution for your office?

The HPE ProLiant MicroServer Gen10 Plus v2 server delivers an affordable compact yet powerful entry-level server that you can customize for on-premises or for hybrid cloud possibilities. It has the same compact form factor as the previous version and can be placed flat or vertically depending on your space. Intel® Xeon® E Processor and Intel® Pentium® Gold Processor Series build compute performance as well as security and remote management into the server with HPE iLO Silicon Root of Trust from HPE iLO. Along with other enhancements such as 4 x 1GbE onboard NICs and USB 3.2 Type-A Gen2, there is nothing micro about the HPE ProLiant MicroServer Gen10 Plus v2 server.

What's New

  • Compute: Intel® Xeon® E-2314 Processor and Intel® Pentium® G6405 Processor.
  • Memory: ECC, UDIMM DDR4, and 3200 MT/s (64 GB maximum).
  • PCIe expansion: PCIe Gen4.
  • Storage controller: Intel VROC SATA software RAID.

Features:

More Micro and Versatile, Yet More Powerful

The HPE ProLiant MicroServer Gen10 Plus v2 server measures 4.68 in (11.89 cm) and can be placed either horizontally or vertically to fit different customer workspaces.

Powered by up to four cores in the Intel® Xeon® E Processor and up to 64 GB of 3200 MT/s DDR4 ECC UDIMM, it delivers better performance for small business applications.

HPE iLO 5 standard and essential functionality (optional), remote monitoring, restore, and maintenance are now available.1 It is supported by installing an optional iLO Enablement kit, which includes an HPE iLO dedicated port. HPE InfoSight and HPE OneView are also supported.

Four embedded network ports provide the networking needs of small business customers. Optional 1GbE and 10GbE BASE-T and SFP+ standup option cards are supported for those who require more.

Security Innovations

The HPE ProLiant MicroServer Gen10 Plus server v2 server is one of our industry-standard servers with major firmware anchored directly into the silicon security protection built-in across the server lifecycle, starting with Silicon Root of Trust.

Secure Recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.

Industry-Leading Services and Ease of Deployment

The HPE ProLiant MicroServer Gen10 Plus v2 server comes with an available complete set of services from HPE Pointnext Services, delivering confidence, reducing risk, and helping you realize agility and stability.

HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Professional Services understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.

Services provided under Operational Services include: HPE GreenLake Flex Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services, and multi-vendor coverage.

HPE IT investment solutions help you transform into a digital business with IT economics that aligns with your business goals.

Make server deployment easy with custom RAID and setup with HPE Intelligent Provisioning and auto-intelligent RAID with HPE Rapid Setup.

Specifications:


HPE ProLiant MicroServer Gen10 Plus v2 Specifications
Processor Type Intel®
Processor family Intel® Xeon® E-2300 processors, Intel®Pentium® Gold Processor series
Maximum memory 64 GB with 32 GB DDR4 UDIMM
Memory slots 2
Memory protection features Unbufferred ECC
Drive supported 4 NHP LFF SATA HDD or 4 NHP SFF SATA SSD
Processor core available 2 to 4 core, depending on processor
Processor cache 4 to 8 MB Intel® Smart Cache, depending on processor
Processor number 1
Processor speed 4.1 GHz maximum, depending on processor
Memory type HPE DDR4 Standard Memory
Expansion slots 1, for detailed descriptions refer to the QuickSpecs
Network controller Embedded 1Gb 4-Port Intel i350-AM4 Controller
Storage controller Embedded Intel VROC SATA SW RAID
Form factor Ultra Micro Tower
Warranty Server Warranty includes 1-Year Parts, 1-Year Labor, and 1-Year Onsite support with next business day response. Warranty repairs may be accomplished using Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part, 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) A trained, authorized service engineer must service non-CSR parts. Additional information regarding worldwide limited warranty and technical support is available at:http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/. NOTE: Warranty does not cover support for ClearOS. ClearCenter provides support for ClearOS.
Minimum dimensions (H x W x D) 4.68 in x 9.65 in x 9.65 in
Minimum dimensions (H x W x D) 11.89 cm x 24.5 cm x 24.5 cm
Weight 9.33 lb
Weight 4.23 kg

Hardware Specs:

HPE ProLiant MicroServer Gen10 Plus v2

HPE ProLiant MicroServer Gen10 Plus v2 delivers an affordable compact yet powerful entry level server that you can customize for on-premises, hybrid cloud, or even workloads demanding datacenter performance. It has the same design as the previous version and can be placed flat or vertically depending on customer environment. The latest Intel Xeon® E and Pentium® supported processors deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4x 1GbE onboard NICs and USB 3.2 Gen2 Type-A, whether you want a generalpurpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.

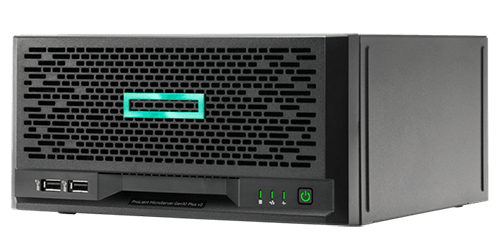

HPE ProLiant MicroServer Gen10 Plus v2- Front View (External)
Front View (External)

1 USB 3.2 Gen2 Type-A ports
2 Drive activity LED
3 NIC status LED
4 Health LED
5 Power on/Standby button and system power LED

HPE ProLiant MicroServer Gen10 Plus v2 - Front View (Internal)
Front View (Internal)

1 Four (4) LFF NHP SATA HDD cage
2 Hard drive screws
3 USB 3.2 Gen2 Type-A ports

Rear View
Rear View

1 Padlock eye
2 Kensington security slot
3 Three (3) USB 3.2 Gen1 Type-A ports
4 One (1) USB 2.0 Type-A ports
5 DisplayPort 1.1a
6 VGA port
7 Four (4) NIC ports (NIC1-4 from left)
8 Power clip hole (for the power cord clip to firmly secure the power adapter.)
9 Power jack
10 PCIe Gen4 low-profile slot (PCIe4 x16)
11 iLO Enablement Kit slot (1x iLO Dedicated NIC port)

Mainboard - Internal View
Mainboard
Internal View

1 Riser board connector
2 iLO 5 chip onboard
3 One (1) processor and heatsink
4 Two (2) DDR4 UDIMM slots
5 One (1) internal USB 3.2 Gen 1Type-A port
6 Embedded TPM
7 System fan

HPE ProLiant MicroServer Gen10 Plus v2 - Riser Board
Riser Board

8 Riser board – iLO Enablement Kit slot
9 Riser board – Expansion low-profile slot, PCIe4 x16

HPE ProLiant MicroServer Gen10 Plus v2 - iLO Enablement Kit
iLO Enablement Kit

HPE ServicesServices:

HPE POINTNEXT SERVICES

HPE Pointnext Services brings together technology and expertise to help you drive your business forward and prepare for whatever is next.

Operational Services from HPE Pointnext Services

HPE Pointnext Tech Care provides fast access to product-specific experts, an AI-driven digital experience, and general technical guidance to help enable constant innovation. We have reimagined IT support from the ground up to deliver faster answers and greater value. By continuously searching for better ways to do things—as opposed to just fixing things that break—HPE Pointnext Tech Care helps you focus on achieving your business goals.

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment, and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.

HPE Integration and Performance Services help you customize your experience at any stage of your product lifecycle with a menu of services based on individual needs, workloads, and technologies.

  • Advise, design, and transform
  • Deploy
  • Integrate and migrate
  • Operate and improve
  • Financial Services
  • Greenlake Management Services
  • Retire and sanitize
  • IT Training and personal development

Other related services

HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Defective Media Retention is optional and allows you to retain Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE GREENLAKE

HPE Greenlake is HPE’s market-leading IT as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model. HPE GreenLake delivers public cloud services and infrastructure for workloads on premises, fully managed in a pay per use model.

HPE iLO 5 standard and essential remote management features are supported when the HPE ProLiant MicroServer Gen10 Plus v2 server and HPE iLO Enablement kit are installed.

Pentium, Pentium Gold, Intel Xeon, and Intel are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. All third-party marks are property of their respective owners.
