Overview:
Do you know that a reliable enterprise-class server can easily meet your budget?
The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost. Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust from HPE. A redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen4, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business grows, which can give you an extra edge. You will be surprised at how much your business can benefit now and in the future with an HPE ProLiant ML30 Gen10 Plus server.
What's New
- Supports Intel® Xeon® E processors up to 8 cores 95W.
- 3200 MT/s HPE DDR4 Standard Memory UDIMM offering: 8 GB, 16 GB, 32 GB, maximum 128 GB memory capacity.
- Four expansion slots for more flexible usage, including one PCIe Gen4 x16.
- Onboard M.2 NVMe/SATA SSD support.
- Dedicated HPE iLO port and serial port kit option.
- Choose validated HPE SMB solutions and offers streamlined for regional delivery as “Smart Buy Express Offers” in the US and Canada, “Top Value Offers” in EMEA, and “Intelligent Buy Offers” in APJ.
Features:
Powerful Yet Affordable Server for Your Daily Office Workloads
The HPE ProLiant ML30 Gen10 Plus server is powered by up to 8 cores Intel Xeon E Processor and up to 128 GB 3200 MT/s DDR4 ECC UDIMM, delivering abundant performance for small- to mid-sized business applications.
With up to 72 TB storage capacity, the HPE ML30 Gen10 Plus is an ideal data storage platform allowing your business to accommodate an increasing amount of data as you grow. An onboard M.2 slot with NVMe/SATA SSD support delivers outstanding speed for a boot drive1.
An optional dedicated HPE iLO port allows you to dedicate more bandwidth to network functions and achieve higher network speeds.
The embedded Intel VROC SATA software RAID ships standard, and the HPE Smart Array essentials and performance controllers allow you the flexibility to choose the 12Gbps controller best suited to your environment.
Four expansion slots for more flexible usage, including one PCIe Gen4 x16 for increased bandwidth2.
A Variety of Enterprise-Class Features to Achieve Business Growth with Low TCO
The HPE ProLiant ML30 Gen10 Plus server offers flexibility in different storage needs. With a choice of 4 Large Form Factor (LFF) non-hot-plug, hot-plug, or 8 Small Form Factor (SFF) hot-plug drive options, you can find a right fit for your growing business.
The selective HPE 500W Flex Slot redundant power supply enhances the reliability, and lets you share spares across multiple server platforms.
Error-correcting code (ECC) memory protects business from data loss and unplanned system downtime.
The HPE ProLiant ML30 Gen10 Plus server offers a complete set of embedded HPE Integrated Lights Out (iLO 5) management features. Includes HPE iLO with Agentless Management, Active Health System, and Intelligent Provisioning.
Security Innovations
The HPE ProLiant ML30 Gen10 Plus protects your business with innovations in firmware protection, malware detection, and firmware recovery — right down to the silicon.
Millions of lines of firmware code run before the server operating system boots. Runtime firmware validation, enabled by HPE iLO Advanced Premium Security Edition, checks the server firmware every 24 hours verifying validity and credibility of essential system firmware.
Secure recovery allows server firmware to roll back to the last known-good state or to factory settings after detection of compromised code.
The HPE Trusted Platform Module (TPM) works to increase data security by storing the encryption startup key in hardware on the server, providing a more secure environment
Intelligent Management Automation
The HPE ProLiant ML30 Gen10 Plus server simplifies and automates management tasks, establishing a solid foundation for a hybrid cloud platform enabled by automation.
Embedded in HPE servers, HPE Integrated Lights-Out(iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.
Automation and software-defined control reduces time spent on provisioning and maintenance, as well as reduces deployment times.
HPE InfoSight for servers continually analyzes server infrastructure and applies real-world examples of hundreds of thousands of servers to predict and prevent problems before they can adversely affect business operations.
1HPE ProLiant ML30 Gen10 Plus server supports one onboard M.2 SSD with PCIe 3.0 x2 bandwidth or SATA.
2Compared with PCIe Gen3 x16
Hardware Specs:
HPE ProLiant ML30 Gen10 Plus server
The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost.

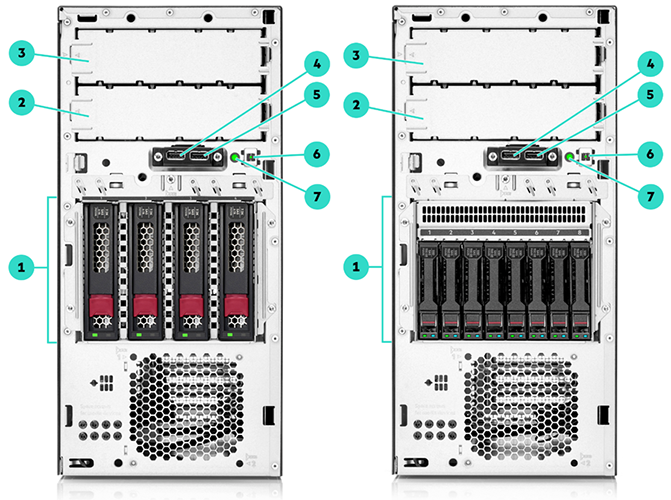

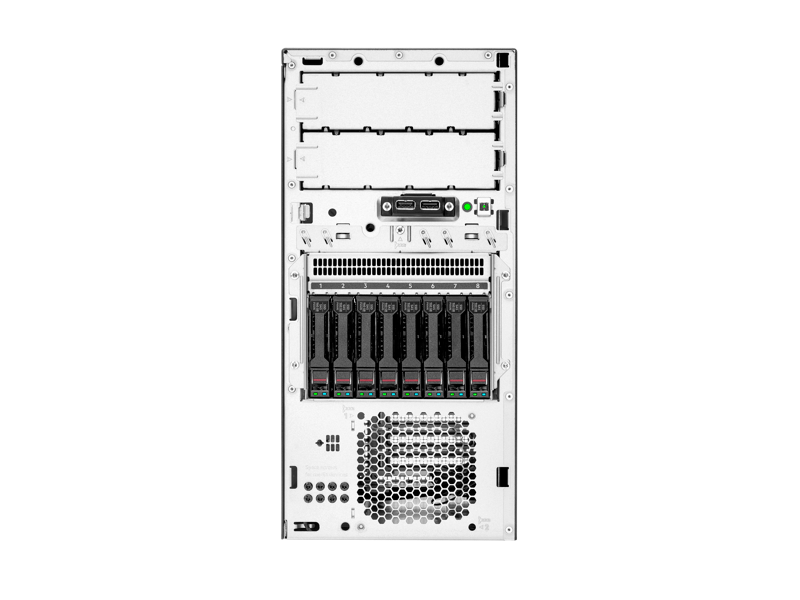

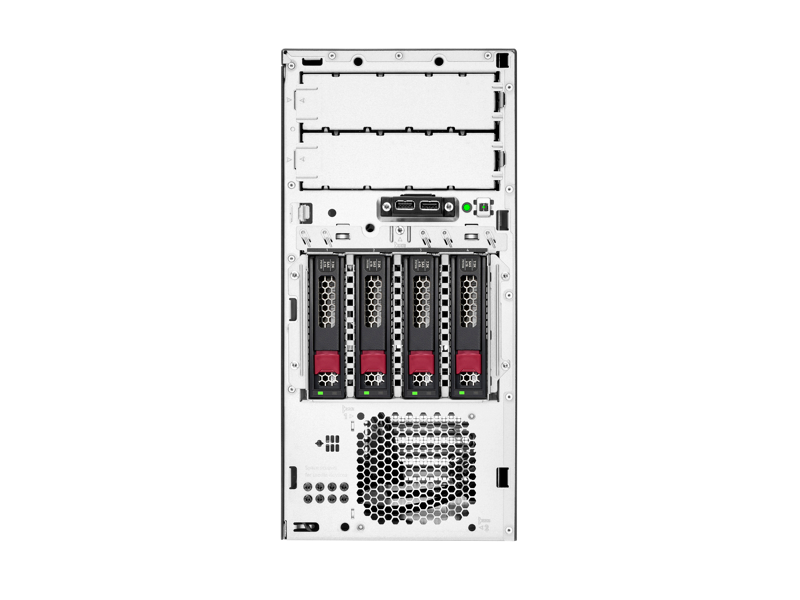

Front View (details for 4 LFF and 8 SFF)
| 1 |
Drive bay (4 LFF and 8 SFF shown) |
| 2 |
Media bay 2 (blank shown) |
| 3 |
Media bay 1 (blank shown) |
| 4 |
USB 3.0 port |
| 5 |
USB 2.0 port |
| 6 |
Power On/Standby button and system power LED |
| 7 |
Health LED |

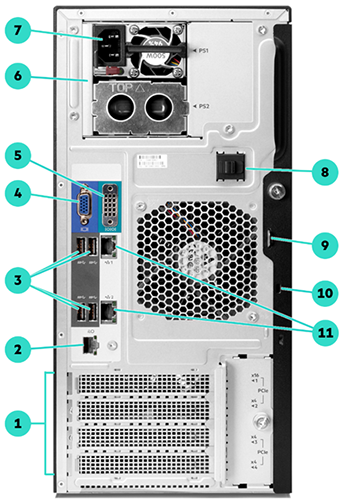

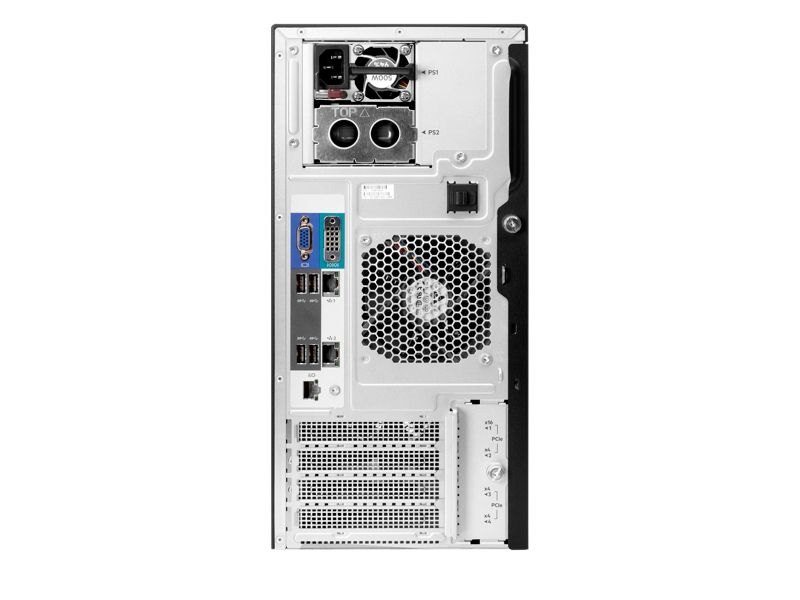

Rear View
| 1 |
PCI slots (slots 1-4) |
| 2 |
Dedicated iLO management port (optional) |
| 3 |
4 USB 3.0 ports |
| 4 |
VGA port |
| 5 |
Serial port (optional) |
| 6 |
Power supply bay (one optional redundant power supply with enablement kit and blank shown) |
| 7 |
Power supply power connector |
| 8 |
Power cord clip |
| 9 |
Padlock eye |
| 10 |
Kensington security slot |
| 11 |
NIC1/shared iLO port (upper), NIC2 port (lower) |

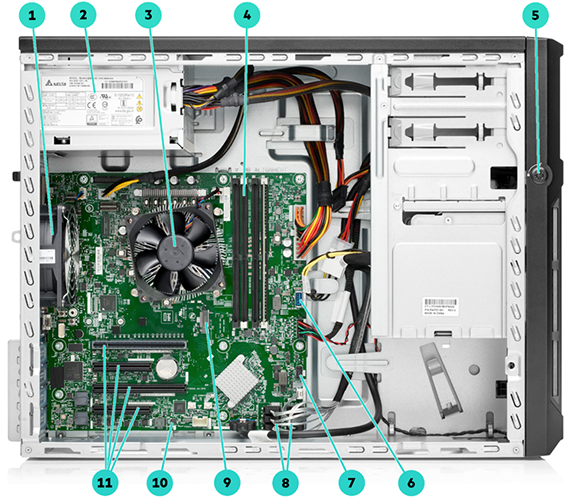

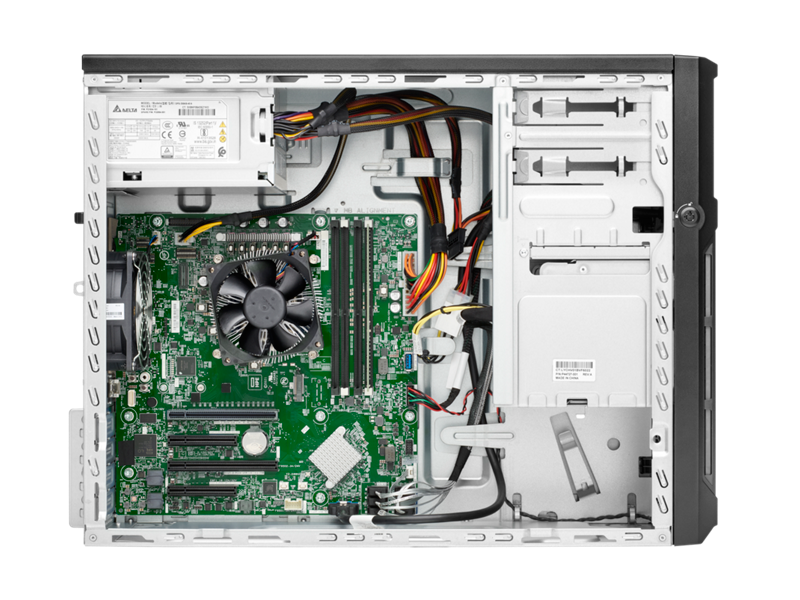

Internal View
| 1 |
System fan |
| 2 |
Power supply |
| 3 |
Processor and heatsink/fan |
| 4 |
4 DDR4 DIMM slots |
| 5 |
Bezel lock |
| 6 |
Internal USB 3.0 port |
| 7 |
Front PCI fan connector |
| 8 |
6 SATA ports |
| 9 |
M.2 slot |
| 10 |
Embedded TPM |
| 11 |
4 PCIe expansion slots |
What's New
- Supports Intel® Xeon® E-2300 processors up to 8 cores and Pentium processors.
- 3200 MT/s HPE DDR4 Standard Memory UDIMM offering 8GB, 16GB, and 32GB. Max 128GB memory capacity.
- Four expansion slots for flexible usage – two x16 and two x8 connectors, one powered by PCIe 4.0 x16.
- Support for one onboard M.2 NVMe/SATA SSD.
- Dedicated iLO port & serial port option kit.
Platform Information
Chassis Types
- 8 SFF hot plug chassis with 2 half-height (5.25") media bays for optional internal slim-line DVD bay kit, RDX, or LTO options
- 4 LFF hot plug chassis with 2 half-height (5.25") media bays for optional internal slim-line DVD bay kit, RDX, or LTO options
- 4 LFF non-hot plug chassis with 2 half-height (5.25") media bays for optional internal slim-line DVD bay kit, RDX, or LTO options
System Fans
- 1 Default system fan module (92 x 32 mm)
- 1 Default PCI fan module (92 x 32 mm) depending on models
Notes:
- PCI fan module is part of HPE ML30 Gen10 PCI Fan and Baffle Kit (P06303-B21) which is included in pre-configured Performance Models.
- HPE ML30 Gen10 PCI Fan and Baffle Kit (P06303-B21) is required as follows:
- Must be selected in 4LFF Hot Plug CTO Server and 8SFF Hot Plug CTO Server.
- Must be selected in 4LFF NHP CTO Server and pre-configured Entry Model if M.2 SSD or any PCIe card (NIC, Smart Array Controller, graphic card, etc.) is selected except the E208e-p controller and 1Gb network adapters.
