Overview:
What is your server bottleneck...storage, compute, expansion?
The HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel® Xeon®
Processor Scalable Family with up to a 60% performance gain1 and 27% increase in cores2, plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. Intel® Optane™ persistent memory 100 series for HPE offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.
What's New
- Defend applications and data before your server is built with the new HPE Trusted Supply Chain offering.
- Supporting additional second generation Intel® Xeon® Scalable processor family offerings.
- Increased Single-Width GPU Density with up to 7 NVIDIA Tesla T4 16GB Computational Accelerators or 7 Xilinx Alveo U50 Accelerators supported in a standard-depth 2U rack form factor
- Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
- Intel® Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB.3
- iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.
Features:
Defend Applications and Data Before Your Server is Built with HPE Trusted Supply Chain
A new first line of defense against cyber-attackers with select servers built to the world’s toughest security standards in secured facilities, bringing together security, processes and people to deliver protection for your most sensitive applications and data even before your server is built.
Built in secure HPE facilities to the most stringent Country of Origin USA and conformance requirements, HPE Trusted Supply Chain servers are inspected to be free from malicious microcode and counterfeit parts, safeguarding it against cyber-exploits throughout its life cycle.
With hardened security built in, HPE Trusted Supply Chain hardens the protections designed into select HPE products with unrivaled supply chain visibility and standards compliance providing a 360-degree view and mitigation plan for current and emerging cyber-threats.
Allied to ensure authenticity, HPE Trusted Supply Chain doubles down on your protection with vetted HPE employees assigned to the product build to manage the product manufacturing process that adheres to the strictest sourcing, inspection and traceability standards.
World-Class Performance featuring Enhanced Compute Density
The ProLiant DL380 now features significantly enhanced GPU density, expanding support from five to seven Full-Height, Half-Length, Single-Width Accelerators/GPUs; or up to six in a balanced configuration with additional PCIe expansion via the tertiary riser.
Leveraging HPE's most popular 2U rackmount server, fitting standard depth racks, customers can benefit from one of the densest Accelerator/GPU platforms with an extensive set of Accelerator options, enabling diverse cloud workload performance and optimization of AI and deep learning experiences.
Supported on the ProLiant DL380, the NVIDIA T4 GPU is ideal for Deep learning, Inferencing, Machine Learning, HPC, Rendering, VDI, Virtual Workstations and combinations thereof for mixed workloads - maximizing utilization of data center resources and lowering TCO.
Flexible Design Making Your Investment Expand As Your Business Needs Grow
The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.
Adapting and growing to changing business needs, Networking Choice (NC) server models provide flexibility in the primary networking choice while Embedded LOM server models offer an embedded 4x1GbE by default; both provide network options (1GbE to 100GbE) via HPE FlexibleLOM or PCIe standup adapters.
HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.
In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.
Supporting a wide range of operating environments from Azure to Docker to ClearOS in addition to traditional operating systems.
Industry Leading Services and Ease of Deployment
The HPE ProLiant DL380 Gen10 server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; Smart Update Manager (SUM), and Service Pack for ProLiant (SPP).
Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Hardware Specs:
HPE ProLiant DL380 Gen10 Server
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.

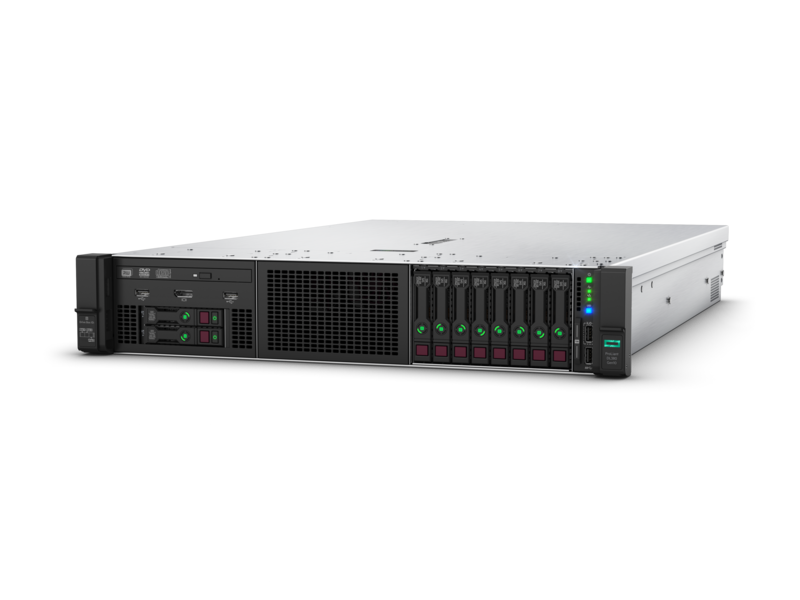

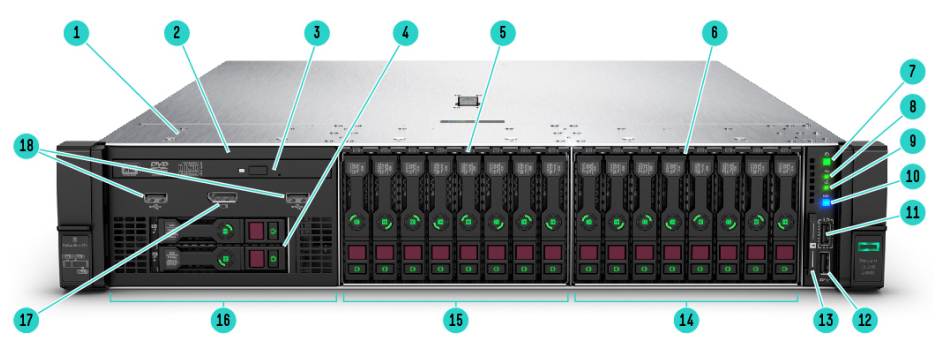

Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown
- Quick removal access panel
- Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)
- Optional Optical drive. Requires Universal Media bay
- Optional 2 SFF HDD, requires optional Universal Media bay
- Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)
- 8 SFF Drive Cage Bay
- Power On/Standby button and system power LED button
- Health LED
- NIC status
- UID button
- iLO Front Service Port
- USB 3.0
- Serial label pull tag
- Box 3
- Box 2
- Box 1
- Optional front display port (Via Universal Media Bay)
- Optional USB 2.0 (via Universal Media Bay)

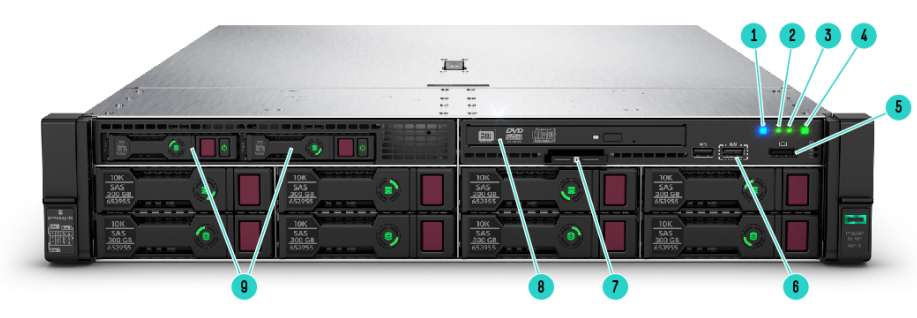

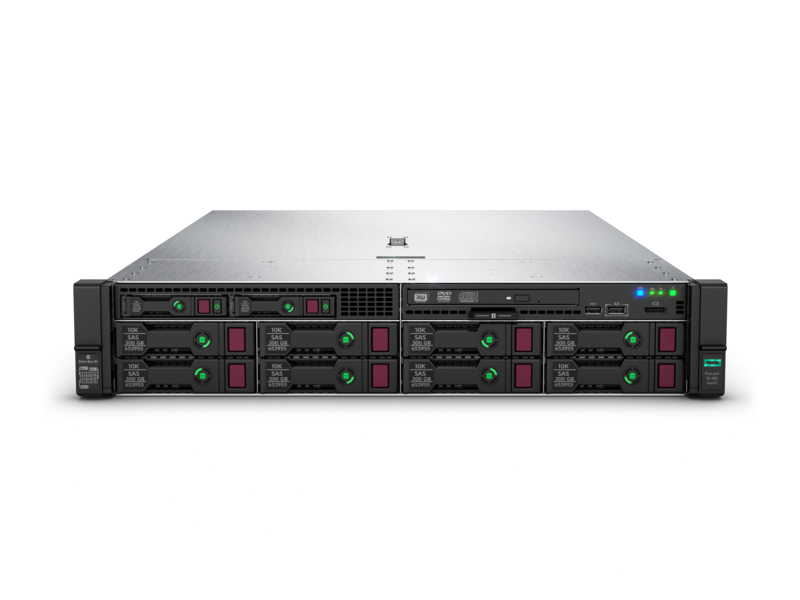

Front View – 8LFF chassis with Universal media bay and optional 2SFF and optical drive shown
- UID button
- Health LED
- NIC status
- Power On/Standby button and system power LED button
- Front display port
- iLO Front Service Port
- Serial label pull tag
- Optional optical drive shown (blank as standard)
- Optional 2 SFF Drive bay, 2 NVMe shown

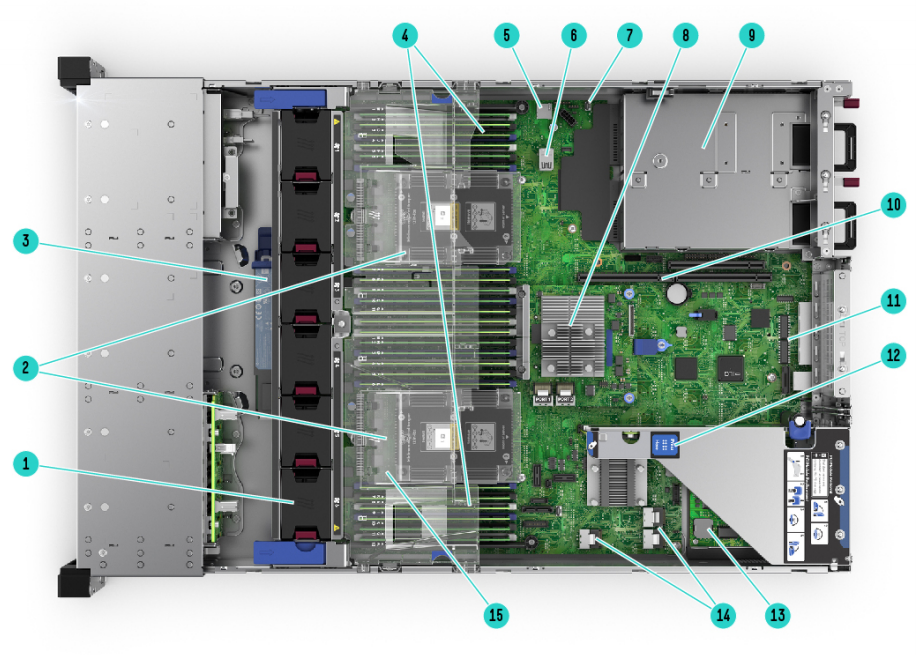

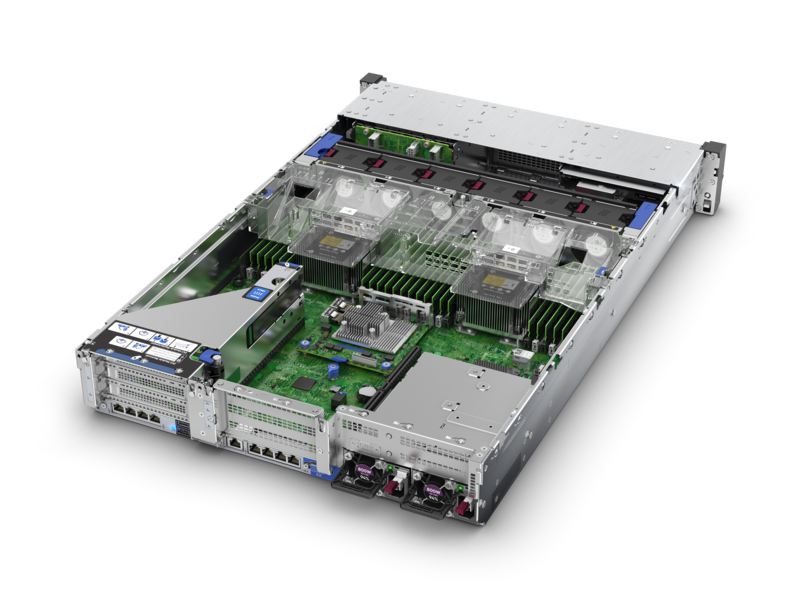

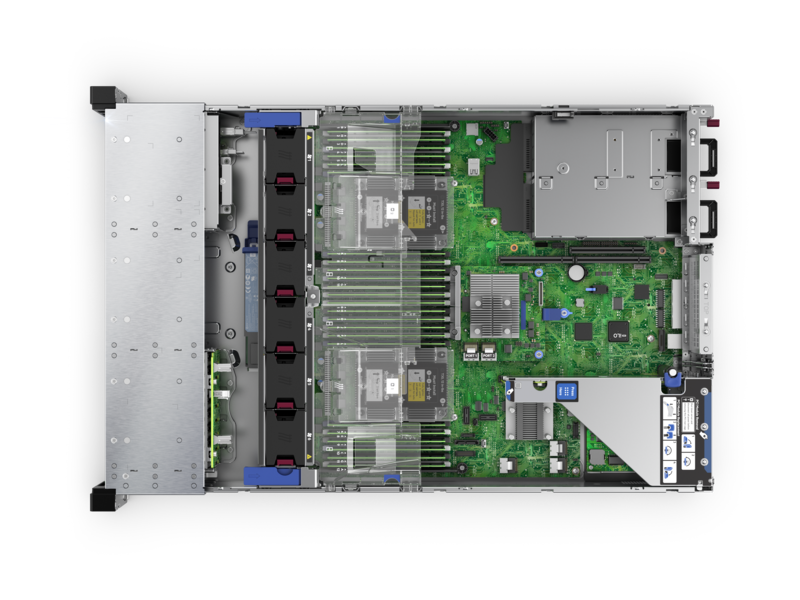

Internal View – 8SFF chassis with optional 2nd CPU, FlexLOM, Smart array shown
- Fan cage shown with 6 standard Hot-plug fans (High Performance temperature fans optional)
- 2 Processors, heatsink showing
- Optional HPE Smart Hybrid Capacitor or HPE Smart Storage Battery
- DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)
- MicroSD card slot (Optional Dual Micro-SD option)
- Internal USB 3.0 connector
- Chassis intrusion detection connector
- Optional HPE Smart Array (P408i-a shown)Clear air baffle
- (Under) Hot Plug redundant HPE Flexible Slot Power supplies
- Connection for second (optional) riser (Requires second CPU)
- Embedded 4x1Gbe NIC
- Primary PCIe riser, standard (Optional double wide GPU riser)
- Optional Flexible LOM slot
- X4 SATA ports (1, 2 and 3)
- Clear air baffle

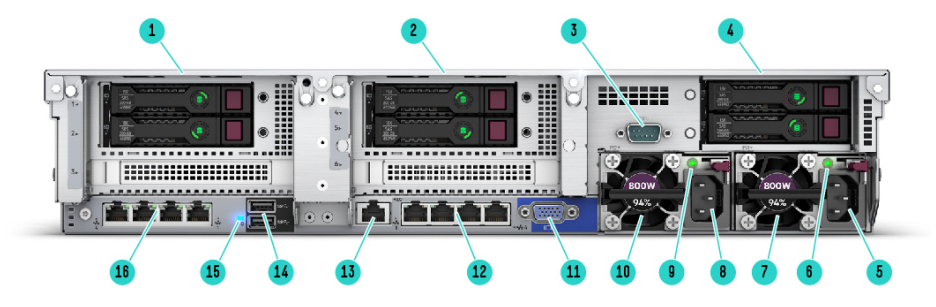

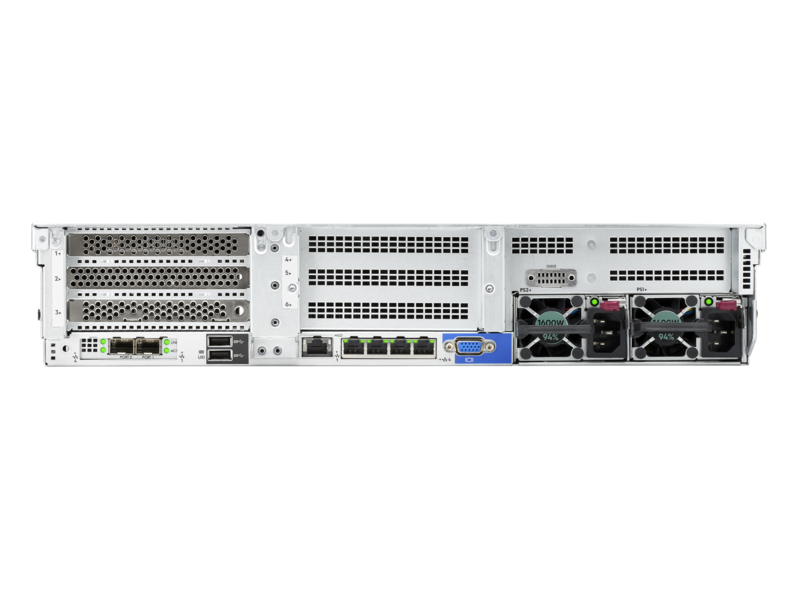

Rear View – With optional FlexLOM, Rear drives and Serial port shown.
- Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives
- Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear
- Optional serial port
- Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)
- Power supply Power connection
- Power supply Power LED
- HPE Flexible Slot Power Supply bay 1 (800W shown)
- Power supply Power connection
- Power supply Power LED
- HPE Flexible Slot Power Supply bay 2 (800W shown)
- VGA connector
- Embedded 4 x 1GbE Network Adapter
- Dedicated iLO management port
- USB connectors 3.0 (2)
- Unit ID LED
- Optional FlexibleLOM ports (Shown: 4 x 1GbE)
