HPE ProLiant DL365 Gen10 Plus server
ProLiant DL300 Servers


HPE ProLiant DL365 Gen10 Plus Server

HPE Products
HPE ProLiant DL365 Gen10 Plus server
HPE ProLiant DL365 Gen10 Plus 7313 3.0GHz 16-core 1P 32GB-R 8SFF 800W PS Server
HPE ProLiant DL365 Gen10 Plus server with one AMD EPYC™ 7313 processor, 32 GB memory, P408i-a storage controller, eight small form factor drive bays and a 800W power supply
#P39367-B21
Get a Quote!
HPE ProLiant DL365 Gen10 Plus 7513 2.6GHz 32-core 1P 32GB-R 8SFF 800W PS Server
HPE ProLiant DL365 Gen10 Plus server with one AMD EPYC™ 7513 processor, 32 GB memory, P408i-a storage controller, eight small form factor drive bays and a 800W power supply
#P39368-B21
Get a Quote!
HPE ProLiant DL365 Gen10 Plus 7262 3.2GHz 8-core 1P 32GB-R 8SFF 500W PS Server
HPE ProLiant DL365 Gen10 Plus server with one AMD EPYC™ 7262 processor, 32 GB memory, P408i-a storage controller, eight small form factor drive bays and a 500W power supply
#P39366-B21
Get a Quote!

Click here to jump to more pricing!

Overview:

Do you need a dense platform with built-in security and flexibility that addresses key applications such as Virtual Desktop Infrastructure?

Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the HPE ProLiant DL365 Gen10 Plus server offers the 3rd Generation AMD EPYC™ Processors, delivering increased compute performance in a 1U rack profile. With up to 128 cores (per 2-socket configuration), 32 DIMMs for memory up to 3200 MHz, the HPE ProLiant DL365 Gen10 Plus server delivers low-cost virtual machines (VMs) with increased security. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL365 Gen10 Plus server offers improved data transfer rates and higher networking speeds. Combined with a better balance of processor cores, memory, and I/O, the HPE ProLiant DL365 Gen10 Plus server is the ideal choice for Virtual Desktop Infrastructure.

What's New

  • Increase compute performance with two processors in a single rack unit enclosure.
  • Powered by the 3rd Generation AMD EPYC™ Processors with more compute performance compared to the previous generation.
  • Enhanced storage management with Tri-mode storage controllers supporting NVMe/SAS/SATA drives. Supports 3rd Generation AMD EPYC™ processors with 3D V-cache, providing 768 MB of L3 cache per processor.

Features:

Workload Optimization

Harness major compute power: The HPE ProLiant DL365 Gen10 Plus server supports the 3rd Generation AMD EPYC™ processors with up to 64-core 280W.

It provides up to 128 lanes of PCIe Gen4 improves I/O throughput and reduces latency.

Tri-mode storage controllers enhance storage management coupled with an advanced storage RAID solution.

It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

360 Degree Security

The HPE ProLiant DL365 Gen10 Plus server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC) to manage secure boot, memory encryption, and secure virtualization.

HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component – hardware and firmware – to provide verification that the server begins its lifecycle through an uncompromised supply chain.

HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, identifies and contains malicious code, and protect healthy servers.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.

When it’s time to retire or repurpose an Hewlett Packard Enterprise ProLiant server, one button secure erase speeds and simplifies the complete removal of passwords, configuration settings and data, preventing inadvertent access to previously secured information.

Intelligent Automation

The HPE ProLiant DL365 Gen10 Plus server simplifies and automates management tasks, establishing a solid foundation for an open, hybrid cloud platform enabled by composability.

Embedded in HPE servers, HPE Integrated Lights-Out (iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Automation and software defined control reduces time spent on provisioning and maintenance, and reduces deployment time.

HPE InfoSight for Servers continually analyzes server infrastructure and applies real-world examples of hundreds of thousands of servers to predict and prevent problems before they can adversely affect business operations.

Delivered as-a Service

The HPE ProLiant DL365 Gen10 Plus server is supported by HPE GreenLake to simplify IT infrastructure management across your entire hybrid estate. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.

Rapidly deploy a broad portfolio of cloud services such as machine learning operations (ML Ops), containers, storage, compute, virtual machines (VMs), data protection, and more. Workload-optimized, preconfigured solutions can be delivered to your facility quickly, decreasing your downtime.

Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide on-premises pay-per-use consumption with HPE GreenLake.

Specifications:


HPE ProLiant DL365 Gen10 Plus Server Specifications
Processor Type AMD
Processor family 3rd Generation AMD EPYC™ Processors
Processor core available Up to 64, depending on processor
Processor cache 128 MB, 256 MB or 768 MB L3 cache, depending on processor model
Maximum memory 8.0 TB with 256 GB DDR4
Memory slots 32
Memory type HPE DDR4 SmartMemory
Memory protection features ECC
Drive supported 8 SFF SAS/SATA/NVMe with optional 1x 2 SFF SAS/SATA or 1x 2 SFF NVMe
Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced (require license)
Power supply type 2 Flexible Slot power supplies maximum depending on customer configuration
Expansion slots 3, for detail descriptions refer to the QuickSpecs
Network controller Optional OCP and/or optional PCIe Network adapters, depending on model
Storage controller HPE Smart Array SAS/SATA Controllers or Tri-Mode Controllers, refer to QuickSpecs for more details
Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, please Contact Us.
Processor Name 3rd Generation AMD EPYC™ Processors
Processor number 2
Form factor 1U
Minimum dimensions ( H x W x D) 1.69 x 17.11 x 29.21 in
Minimum dimensions ( H x W x D) 4.28 x 43.46 x 74.19 cm
Weight 29.51 lb
Weight 13.39 kg

Hardware Specs:

HPE ProLiant DL365 Gen10 Plus server

The HPE ProLiant DL365 Gen10 Plus Server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7003 Series Processors , the HPE ProLiant DL365 Gen10 Plus Server offers greater processing power, memory speeds up to 3200 MT/s. and data transfer rates with PCIe Gen4 capabilities.

This 2P, 1U server has been designed with flexibility while delivering a high core count and large memory footprint. Choose this purpose-built platform for virtualization, High Performance Compute and memory centric workloads.

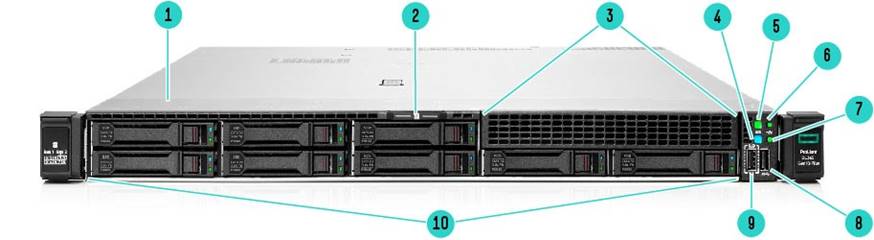

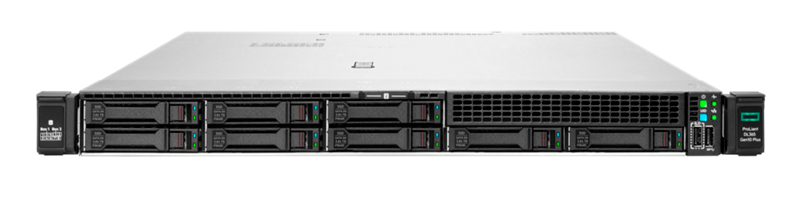

8 SFF Front View – 8 SFF & No Media Option Shown
8 SFF Front View – 8 SFF & No Media Option Shown

1 Quick removal access panel
2 Serial no. label pull tab
3 Optional Media Bay:
Option Shown: no media
Optional: +2SFF U.3 SAS/SATA/NVMe drives (total max 10SFF)
Optional: +2FF U.2 NVMe drives (total max 10SFF)
Optional: 9.5mm SATA DVD-ROM/RW Optial Drive
4 UID button/LED
5 Power On/Standby button and sytem power LED
6 Health LED
7 NIC status LED
8 USB 3.1 Gen1 port
9 iLO Service Port
10 8 SAS/STA/NVMe drive bays

Notes: System Insight Display (SID) module will include #4-9 above

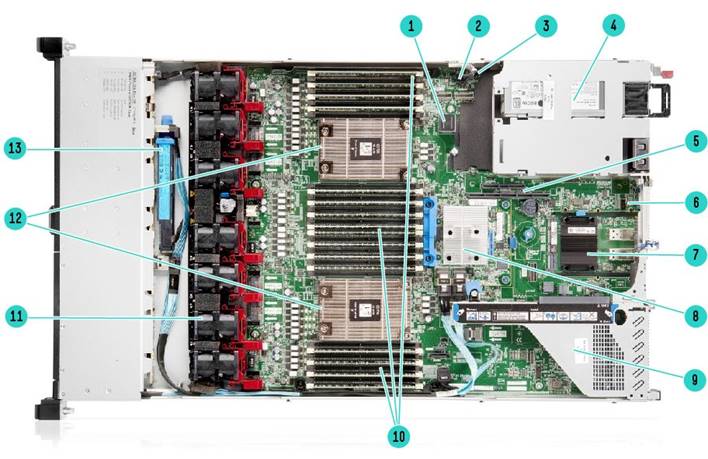

Internal View - Standard for all DL365 Gen10 Plus
Internal View - Standard for all DL365 Gen10 Plus

1 Internal USB 3.1 Gen1 connector
2 Hard drive backplane power connector
3 Chassis intrusion detection connector
4 Hot Plug redundant HPE Flexible Slot Power supplies
5 Secondary Riser connector (Using tertiary connector). Requires a second processor.
6 Serial Port Connector
7 (Under) OCP 3.0 Slot
8 Optional HPE Flexible Smart Array Controller (Type-a shown)
9 Primary PCIe riser, standard
10 DDR4 DIMM slots, shown fully populated in 32 slots
11 Fan cage shown with 7 High Performance Fans
12 2 processores (heat sinks shown)
13 Optional: Smart Storage Battery

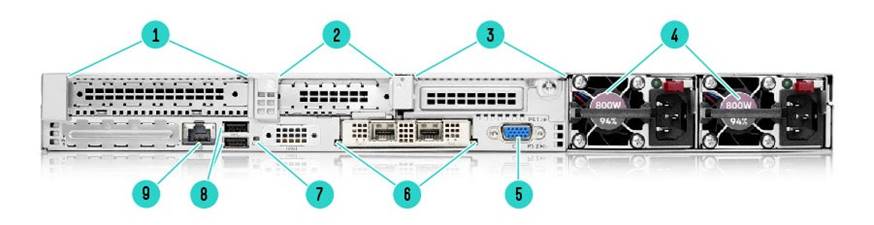

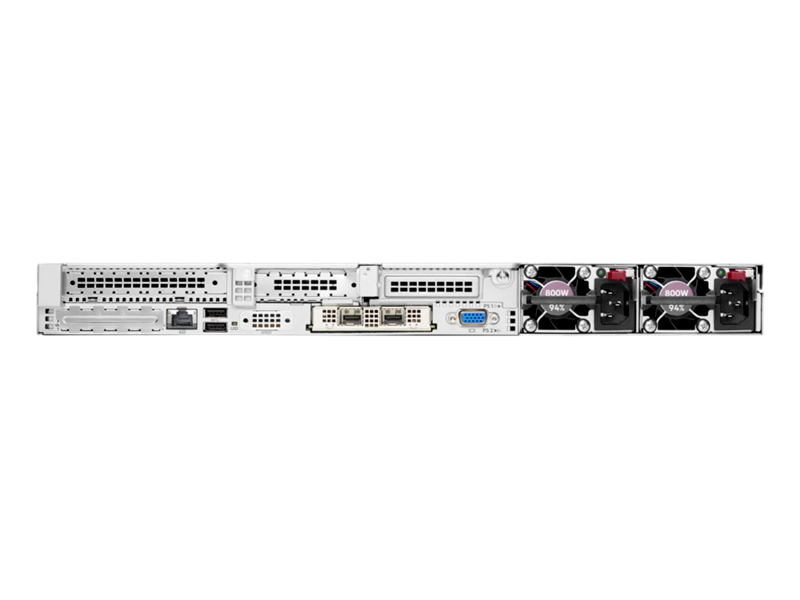

Rear View – Standard for all DL365 Gen10 Plus
Rear View – Standard for all DL365 Gen10 Plus
8SFF chassis

1 Slot 1 PCIe 4.0
2 Slot 2 PCIe 4.0
3 Optional: Slot 3 PCIe 4.0 (Requires 2nd processor)
4 Hot-plug Power Supply 1 and 2
5 VGA port
6 OCP 3.0 Slot
7 UID LED
8 USB 3.1 Gen1 Ports
9 iLO Management Port

Views:

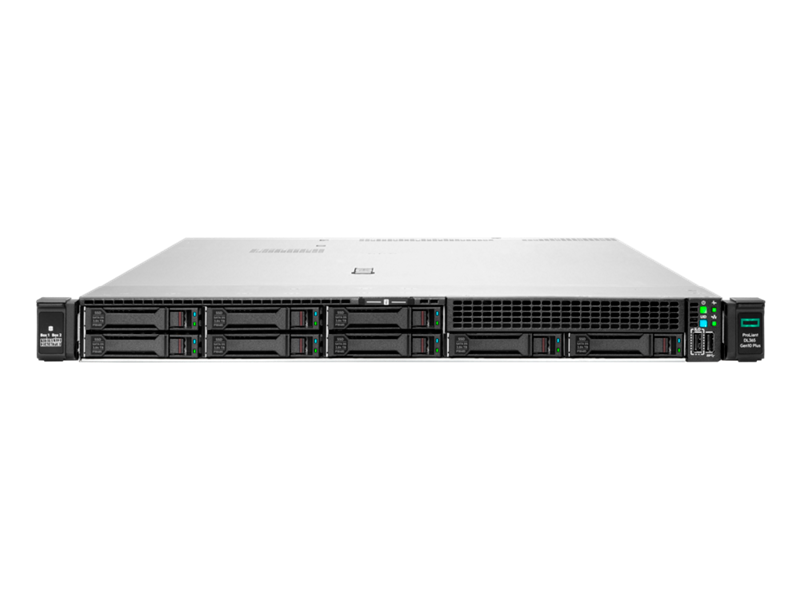

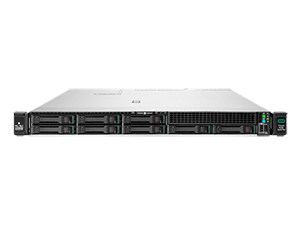

Front View

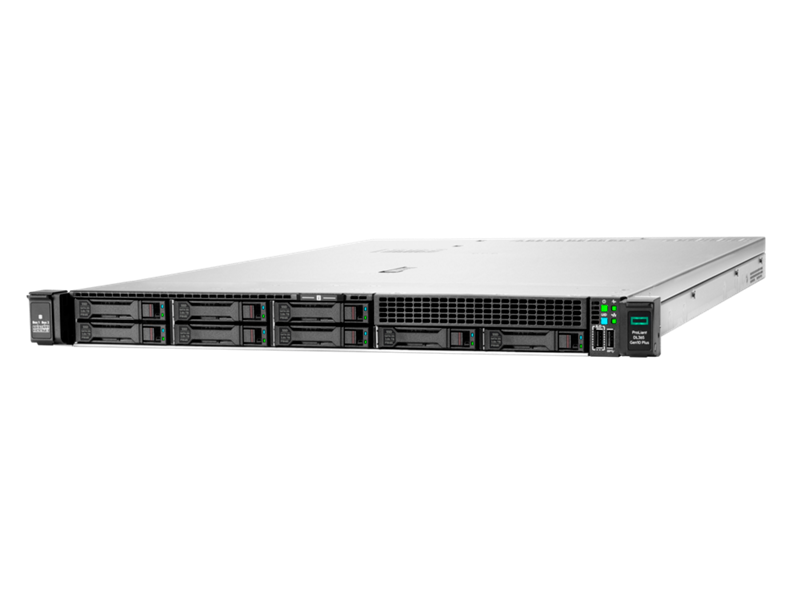

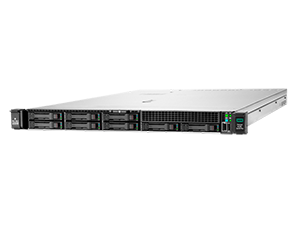

Left angle View

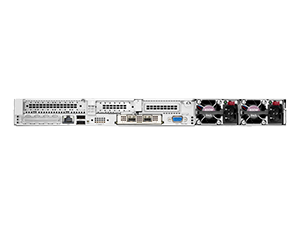

Rear View

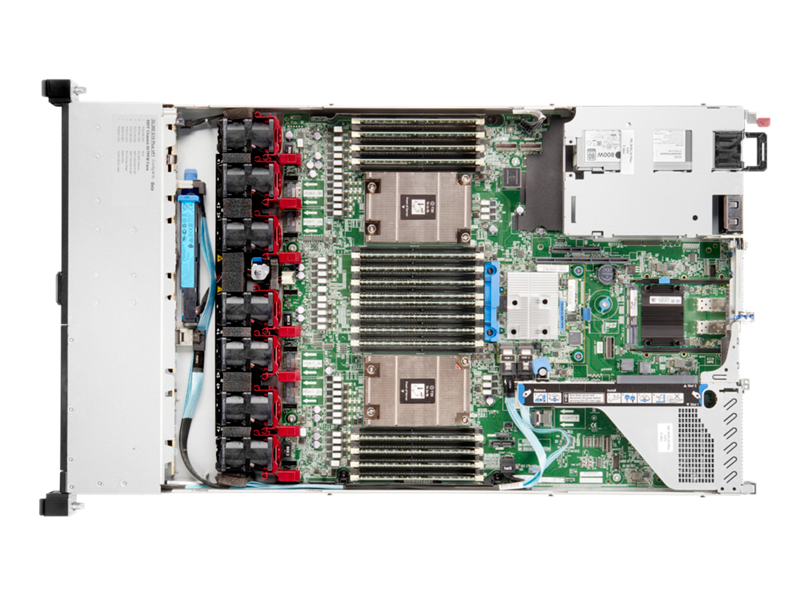

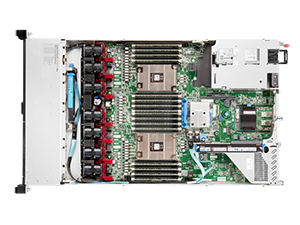

Top View

HPE ServicesServices:

HPE POINTNEXT SERVICES

HPE Pointnext Services brings together technology and expertise to help you drive your business forward and prepare for whatever is next.

Operational Services from HPE Pointnext Services

HPE Pointnext Tech Care provides fast access to product-specific experts, an AI-driven digital experience, and general technical guidance to help enable constant innovation. We have reimagined IT support from the ground up to deliver faster answers and greater value. By continuously searching for better ways to do things—as opposed to just fixing things that break—HPE Pointnext Tech Care helps you focus on achieving your business goals.

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment, and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.

HPE Integration and Performance Services help you customize your experience at any stage of your product lifecycle with a menu of services based on individual needs, workloads, and technologies.

  • Advise, design, and transform
  • Deploy
  • Integrate and migrate
  • Operate and improve
  • Financial Services
  • Greenlake Management Services
  • Retire and sanitize
  • IT Training and personal development

Other related services

HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Defective Media Retention is optional and allows you to retain Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE GREENLAKE

HPE Greenlake is HPE’s market-leading IT as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model. HPE GreenLake delivers public cloud services and infrastructure for workloads on premises, fully managed in a pay per use model.

**AMD EPYC™ is a trademarks of Advanced Micro Devices, Inc. All third-party marks are property of their respective owners.
