HPE ProLiant DL345 Gen10 Plus server
ProLiant DL300 Servers


HPE ProLiant DL345 Gen10 Plus Server

HPE Products
HPE ProLiant DL345 Gen10 Plus server
HPE ProLiant DL345 Gen10 Plus 7443P 2.85GHz 24-core 1P 32GB-R 8SFF 800W PS Server
HPE ProLiant DL345 Gen10 Plus server with one AMD EPYC™ 7443P Processor, 32 GB memory, HPE Smart Array P408i-a SR Gen10 Controller, eight small form factor drive bays and 800W power supply
#P39267-B21
Get a Quote!
HPE ProLiant DL345 Gen10 Plus 7232P 3.1GHz 8-core 1P 32GB-R 8LFF 500W PS Server
HPE ProLiant DL345 Gen10 Plus server with one AMD EPYC™ 7232P Processor, 32 GB memory, HPE Smart Array P408i-a SR Gen10 Controller, eight small form factor drive bays and 500W power supply
#P39265-B21
Get a Quote!
HPE ProLiant DL345 Gen10 Plus 7313P 3.0GHz 16-core 1P 32GB-R 8SFF 500W PS Server
HPE ProLiant DL345 Gen10 Plus server with one AMD EPYC™ 7313P Processor, 32 GB memory, HPE Smart Array P408i-a SR Gen10 Controller, eight small form factor drive bays and 500W power supply
#P39266-B21
Get a Quote!

Click here to jump to more pricing!

Overview:

Do you need a single socket server with a 2U rack storage capacity to address your data intensive workloads?

Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the HPE ProLiant DL345 Gen10 Plus server offers the 3rd Generation AMD EPYC™ Processors, delivering excellent performance on a single socket design. Equipped with PCIe Gen4 capabilities, HPE ProLiant DL345 Gen10 Plus server offers improved data transfer rates and higher networking speeds. Enclosed in a 2U server chassis, this one-socket server improves storage capacity across SAS/SATA/NVMe storage options, making it an ideal solution for key applications such as structured/unstructured database management.

What's New

  • Provide versatility and upgradeability for storage with one processor in a 2U rack enclosure.
  • Powered by the 3rd Generation AMD EPYC™ Processors with more compute performance compared to the previous generation.
  • Enhanced storage management with Tri-mode storage controllers supporting NVMe/SAS/SATA drives.

Features:

Workload Optimization

Harness major compute power: The HPE ProLiant DL345 Gen10 Plus server supports the 3rd Generation AMD EPYC™ processors with up to 64-core 280W.

It provides up to 128 lanes of PCIe Gen4 improves I/O throughput and reduces latency.

Tri-mode storage controllers enhance storage management coupled with an advanced storage RAID solution.

It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

360 Degree Security

The HPE ProLiant DL345 Gen10 Plus server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC) to manage secure boot, memory encryption, and secure virtualization.

HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component – hardware and firmware – to provide verification that the server begins its lifecycle through an uncompromised supply chain.

HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, identifies and contains malicious code, and protect healthy servers.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.

When it’s time to retire or repurpose an Hewlett Packard Enterprise ProLiant server, one button secure erase speeds and simplifies the complete removal of passwords, configuration settings and data, preventing inadvertent access to previously secured information.

Intelligent Automation

The HPE ProLiant DL345 Gen10 Plus server simplifies and automates management tasks, establishing a solid foundation for an open, hybrid cloud platform enabled by composability.

Embedded in HPE servers, HPE Integrated Lights-Out (iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Automation and software defined control reduces time spent on provisioning and maintenance, and reduces deployment time.

Delivered as-a Service

The HPE ProLiant DL345 Gen10 Plus server supported by HPE GreenLake simplifies IT infrastructure management across your entire hybrid estate. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.

Rapidly deploy a broad portfolio of cloud services such as machine learning operations (ML Ops), containers, storage, compute, virtual machines (VMs), data protection, and more. Workload-optimized, preconfigured solutions can be delivered to your facility quickly, decreasing your downtime.

Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide on-premises pay-per-use consumption with HPE GreenLake.

Specifications:


HPE ProLiant DL345 Gen10 Plus Server Specifications
Processor Type AMD
Processor family 3rd Generation AMD EPYC™ Processors
Processor core available Up to 64, depending on processor
Processor cache Up to 256 MB L3 cache, depending on processor model
Maximum memory 2.0 TB with 128 GB DDR4
Memory slots 16
Memory type HPE DDR4 SmartMemory
Memory protection features ECC
Drive supported 8 or 12 LFF SAS/SATA with 2 SFF rear drive optional
8 or 24 SFF SAS/SATA with 2 SFF rear drive optional, 24 SFF NVMe Front bay with 2 SFF rear drive optional
Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses)
Power supply type 2 Flexible Slot power supplies maximum, depending on model
Expansion slots 4 maximum, for detailed descriptions refer to the QuickSpecs
Network controller Choice of optional OCP plus standup, depending on model
Storage controller HPE Smart Array SAS/SATA Controllers or Tri-Mode Controllers, refer to QuickSpecs for more details
Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, please Contact Us.
Processor Name 3rd Generation AMD EPYC™ Processors
Processor number 1
Processor speed 4.0 GHz maximum, depending on processor
Form factor 2U
Minimum dimensions ( H x W x D) 3.44 x 17.54 x 28 in
Minimum dimensions ( H x W x D) 8.75 x 44.54 x 71.1 cm
Weight 36.00 lb
Weight 16.33 kg

Hardware Specs:

HPE ProLiant DL345 Gen10 Plus server

The HPE ProLiant DL345 Gen10 Plus server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7003 Series Processors, the HPE ProLiant DL345 Gen10 Plus server offers greater processing power, faster memory speeds up to 3200 MT/s. and increased data transfer rates with PCIe Gen4 capabilities.

This 1P, 2U server has been designed with flexibility while delivering a high core count and large memory footprint. Choose this purpose-built platform for virtualization, High Performance Compute and memory centric workloads.

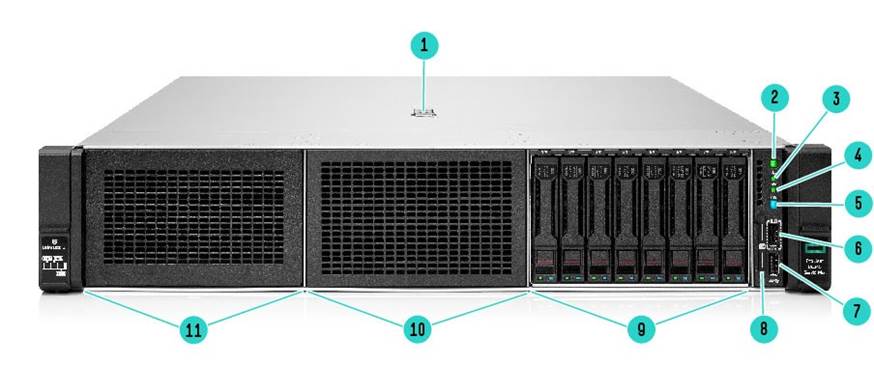

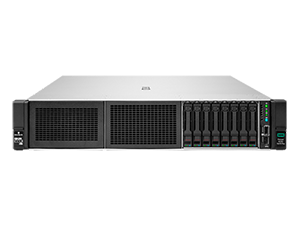

HPE ProLiant DL345 Gen10 Plus 8 SFF  Server- Front View
HPE ProLiant DL345 Gen10 Plus 8 SFF Server- Front View

1 Quick removal access panel
2 Power On/Standby button and system power LED button
3 Health LED
4 NIC status
5 Unit ID button
6 iLO front service port
7 USB 3.1 Gen1
8 Serial label pull tag
9 Drive Bay 3. 8SFF SAS/SATA shown (Box 3)
10 Drive Bay 2. Blank shown(Box 2)
11 Drive Bay 1. Blank shown (Box 1)

Notes:

  • 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional
  • 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional
  • 8 SFF SAS/SATA or 8 SFF U.2/U.3 optional

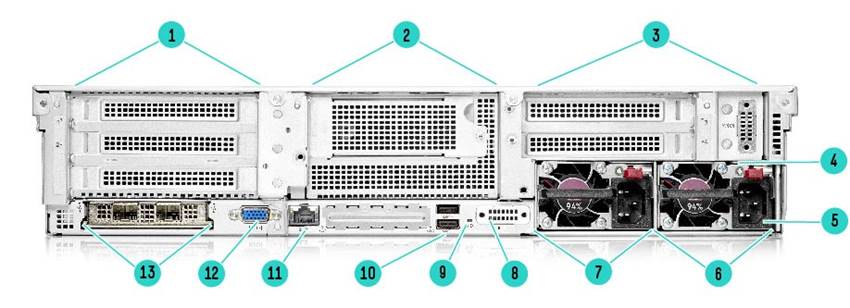

HPE ProLiant DL345 Gen10 Plus server - Rear View
HPE ProLiant DL345 Gen10 Plus server - Rear View

1 Primary Riser.1
2 Rear Drive Cage (2SFF SAS/SATA/NVMe optional)
3 Secondary Riser.2
4 Power supply power LED
5 Power supply power connection
6 HPE Flexible Slot Power Supply bay 1
7 HPE Flexible Slot Power Supply bay 2
8 Optional serial port (not shown)
9 UID LED
10 USB connectors 3.1 Gen1 (2)
11 Dedicated iLO management port
12 VGA Connector
13 OCP 3.0 Slot

Notes::

  1. PCIe Slots 1-2 top to bottom, riser shipped standard, not shown.
  2. PCIe Slots 3-4 top to bottom, not shown.

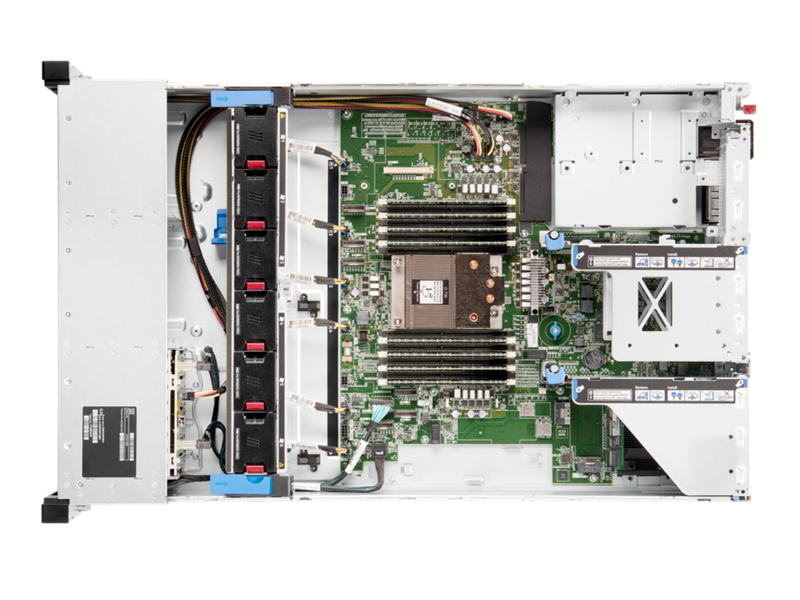

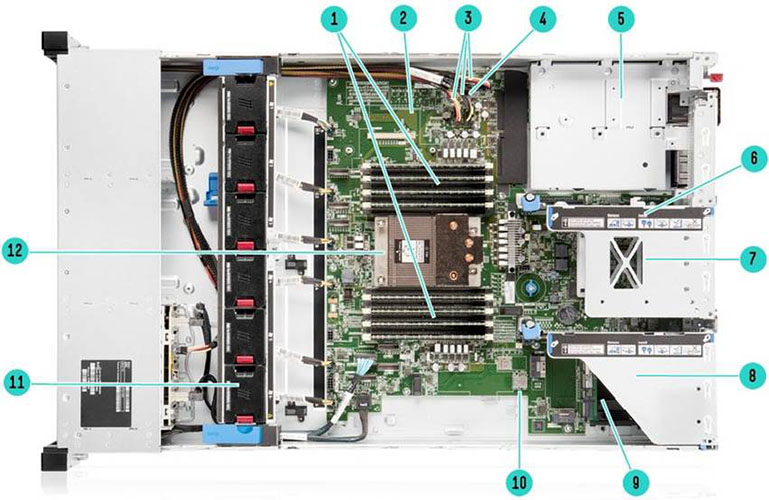

HPE ProLiant DL345 Gen10 Plus server - Internal View

8SFF chassis
HPE ProLiant DL345 Gen10 Plus server - Internal View
8SFF chassis

1 DDR4 DIMM slots
2 Optional HPE Flexible Smart Array Controller (Not shown)
3 Hard drive backplane power connectors
4 Chassis intrusion detection connector
5 Hot Plug redundant HPE Flexible Slot Power supplies
6 Connection for (optional) secondary riser
7 (Under) Serial Port Connector
8 Primary PCIe riser, standard
9 (Under) OCP 3.0 Slot
10 Internal USB 3.1 Gen1 connector
11 Fan cage shown with 6 Performance Hot-plug fans
12 Processor (heatsink shown)

Views:

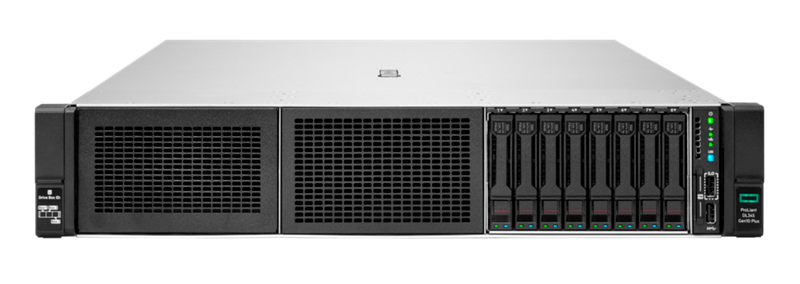

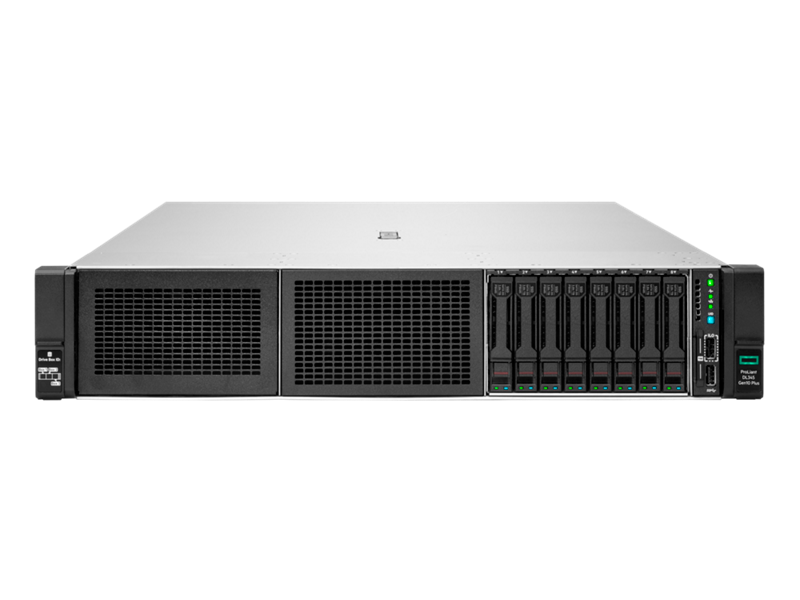

Front View

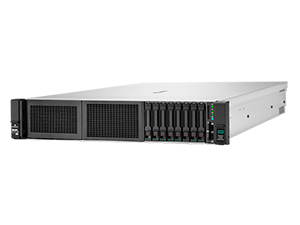

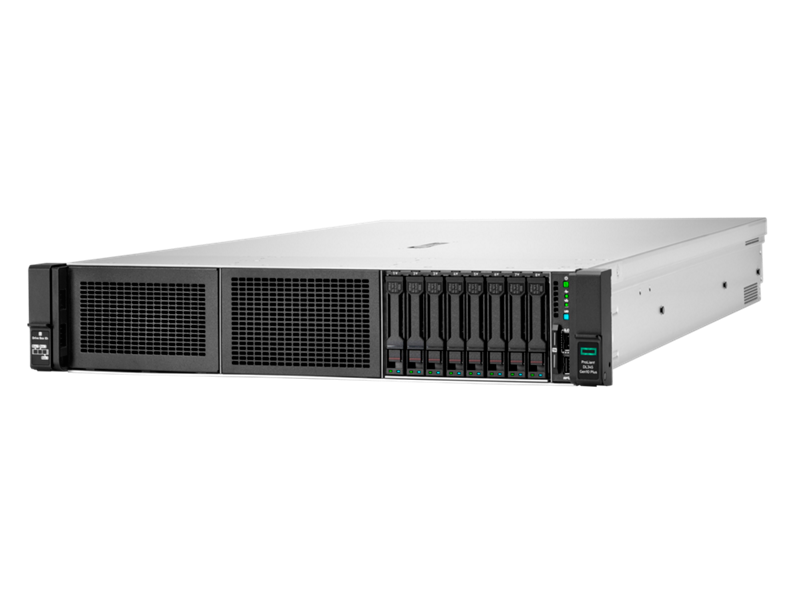

Left angle View

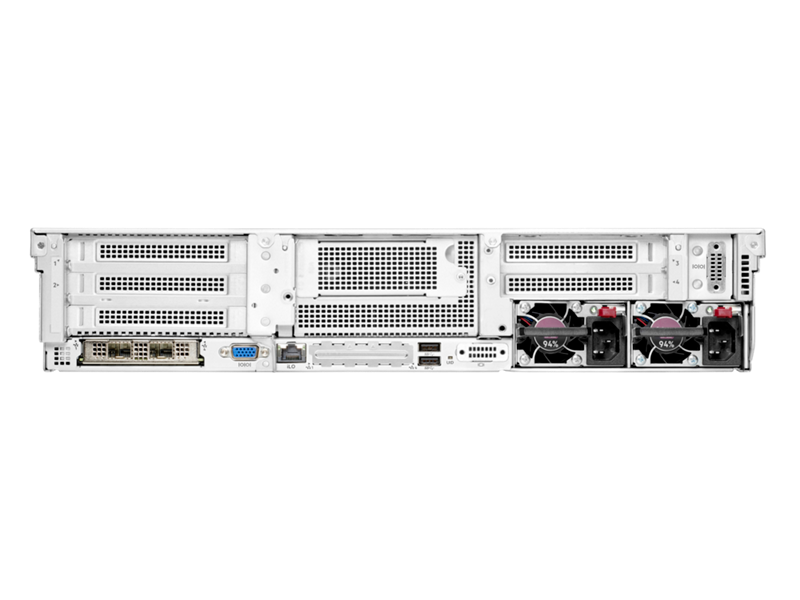

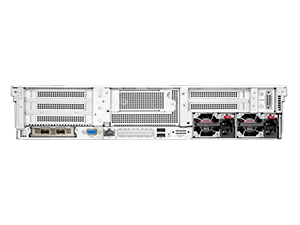

Rear View

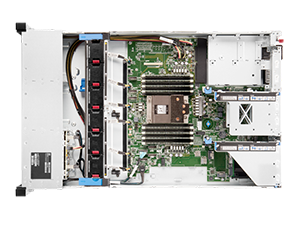

Top View

HPE ServicesServices:

HPE POINTNEXT SERVICES

HPE Pointnext Services brings together technology and expertise to help you drive your business forward and prepare for whatever is next.

Operational Services from HPE Pointnext Services

HPE Pointnext Tech Care provides fast access to product-specific experts, an AI-driven digital experience, and general technical guidance to help enable constant innovation. We have reimagined IT support from the ground up to deliver faster answers and greater value. By continuously searching for better ways to do things—as opposed to just fixing things that break—HPE Pointnext Tech Care helps you focus on achieving your business goals.

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment, and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.

HPE Integration and Performance Services help you customize your experience at any stage of your product lifecycle with a menu of services based on individual needs, workloads, and technologies.

  • Advise, design, and transform
  • Deploy
  • Integrate and migrate
  • Operate and improve
  • Financial Services
  • Greenlake Management Services
  • Retire and sanitize
  • IT Training and personal development

Other related services

HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Defective Media Retention is optional and allows you to retain Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE GREENLAKE

HPE Greenlake is HPE’s market-leading IT as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model. HPE GreenLake delivers public cloud services and infrastructure for workloads on premises, fully managed in a pay per use model.

**AMD EPYC™ is a trademarks of Advanced Micro Devices, Inc. All third-party marks are property of their respective owners.
