Overview:
Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments?
The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel® Xeon® E processors provide unique enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.
What's New
- Supports Intel Xeon E-2400 series processors, up to 8 cores.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
- Optional HPE iLO management port as an option kit for faster data transmission with enhanced security.
- One PCIe Gen5 slot for greater I/O bandwidth.
- One OCP slot for greater I/O bandwidth.
Features:
Compact, Secure, and Reliable Design for an Affordable Solution
HPE ProLiant DL20 Gen11 server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
HPE ProLiant DL20 Gen11 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.
Handle a range of light workloads to more demanding requirements with affordable configuration choices and a wide variety of Hewlett Packard Enterprise qualified options.
Industry-leading Services and Ease of Deployment
HPE ProLiant DL20 Gen11 server comes standard with a complete set of services from HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Services simplify the stages of your IT journey. Advisory and Transformation Services professionals understand customer challenges and design an ideal solution. Professional Services enables rapid deployment of solutions.
Operational Services from HPE Services includes: HPE Complete Care, HPE Tech Care and project-based services, such as Integration and Performance services. Additional services can be added to customize your experience at any stage of your IT lifecycle.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Right Balance of Performance, Flexibility, Reliability, and Manageability for Growing Business Needs
HPE ProLiant DL20 Gen11 server offers a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR5 ECC memory to handle your workload demands.
Experience outstanding configuration flexibility with support for up to two large form factor (LFF) or six small form factor (SFF) drives, four DDR5 ECC UDIMMs, 290W, 500W, 800W or 1000W power supplies, and a more efficient deployment of options via HPE PCIe and OCP slots - now supporting PCIe 5.0.
The reliable HPE ProLiant DL20 Gen11 server combines a dense and compact form factor with redundant power supply capability, which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.
Along with an embedded 4 x 1GbE, you have a choice of HPE PCIe standup adapters that offer a choice of networking bandwidth (1GbE to 10GbE) and fabric, so you can adapt and grow to changing business needs.
HPE iLO6 provides a more efficient and easier server management. It enables large-scale firmware deployment, improved GUI to simplify management with industry-standard APIs, and easy system debug access.
Security Innovations
Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen11server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with Silicon Root of Trust from HPE.
Millions of lines of firmware code run before the server operating system boots. With Runtime Firmware Verification, enabled by the optional HPE iLO Advanced Premium Security Edition, the server’s firmware is checked every 24 hours, verifying validity and credibility of essential system firmware.
Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised server.
Additional security options are available with Trusted Platform Module (TPM) to avoid unauthorized access to the server and store artifacts used to authenticate the server platforms, while the Intrusion Detection Kit logs and alerts when the server hood is removed for further protection.
Hardware Specs:

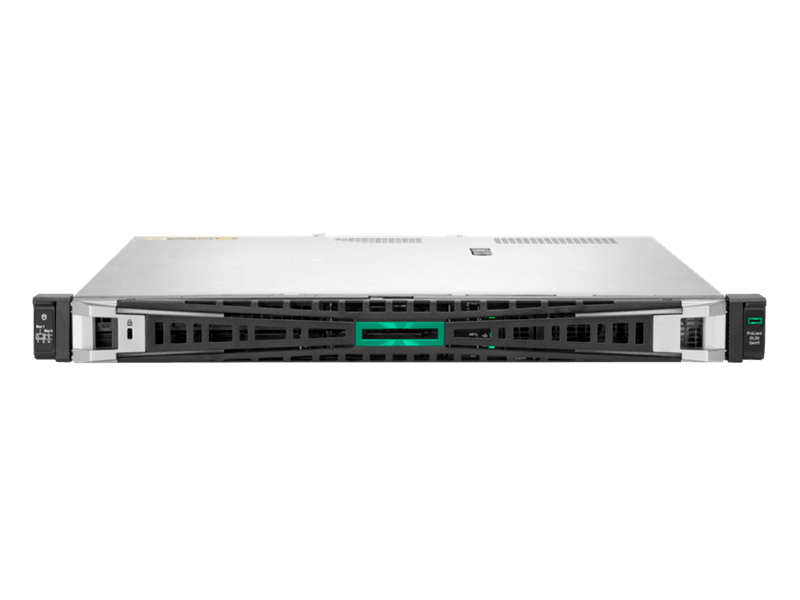

HPE ProLiant DL20 Gen11 server

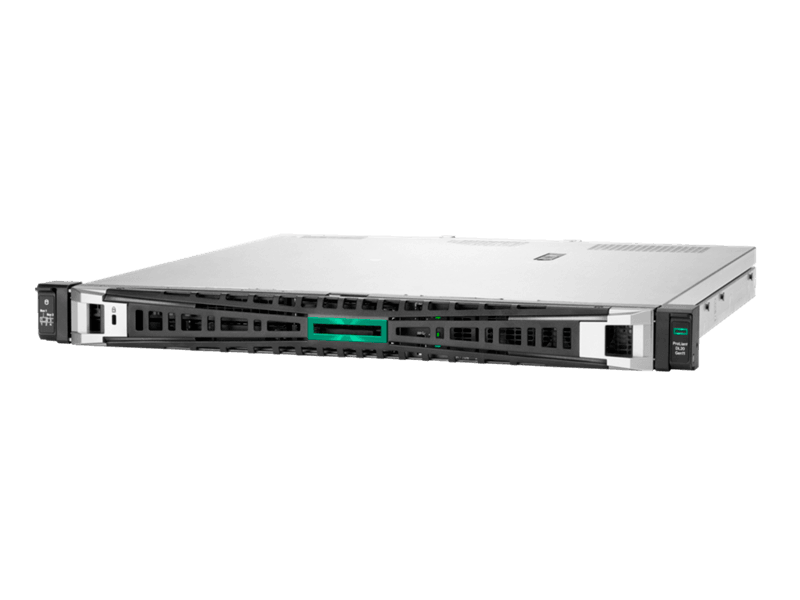

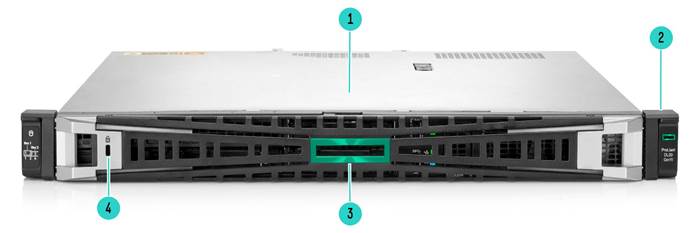

4SFF + 2SFFView Gen11
| 3 |
Bezel |
| 4 |
Kensington Lock |

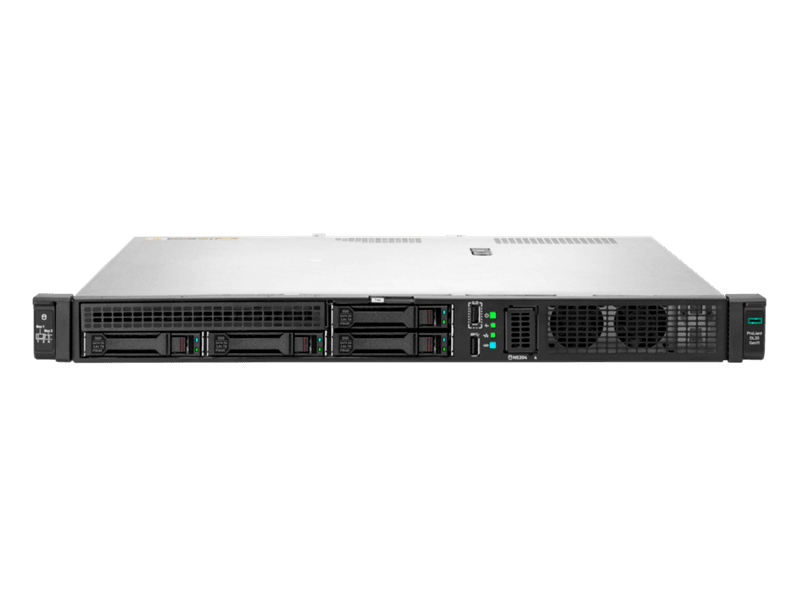

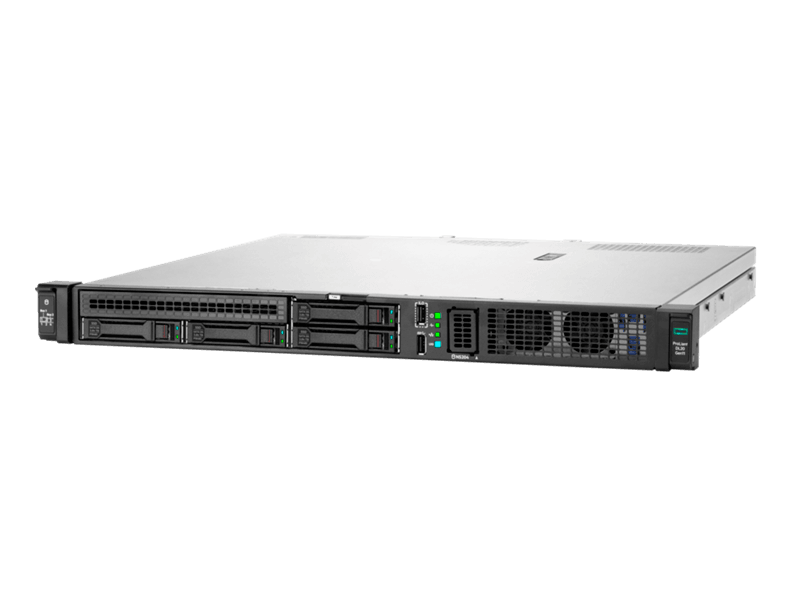

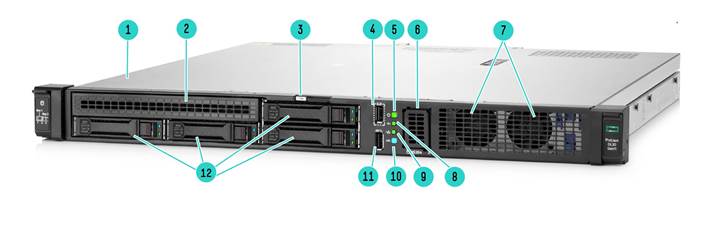

4 SFF Front View Gen11
| 1 |
Access Panel |
| 2 |
Optical drive bay |
| 3 |
Serial number/iLO information pull tab |
| 4 |
ILo Service Port (USB) |
| 5 |
System Power button/LED |
| 6 |
NS204i-u device bay (optional) |
| 7 |
Front Fan Assembly |
| 8 |
Health LED |
| 9 |
NIC Status LED |
| 10 |
UID button/LED |
| 11 |
USB 3.2 Gen 1 Port |
| 12 |
Four-bay SFF hot-plug drive bays |

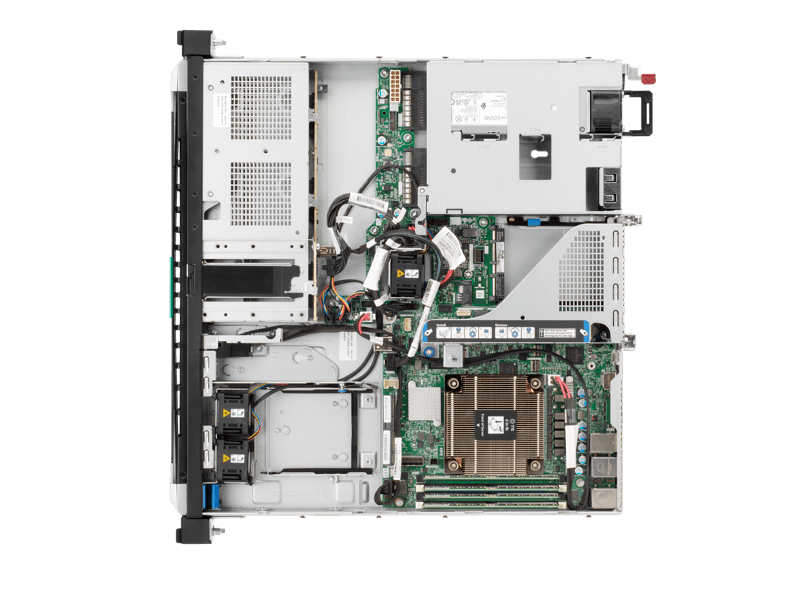

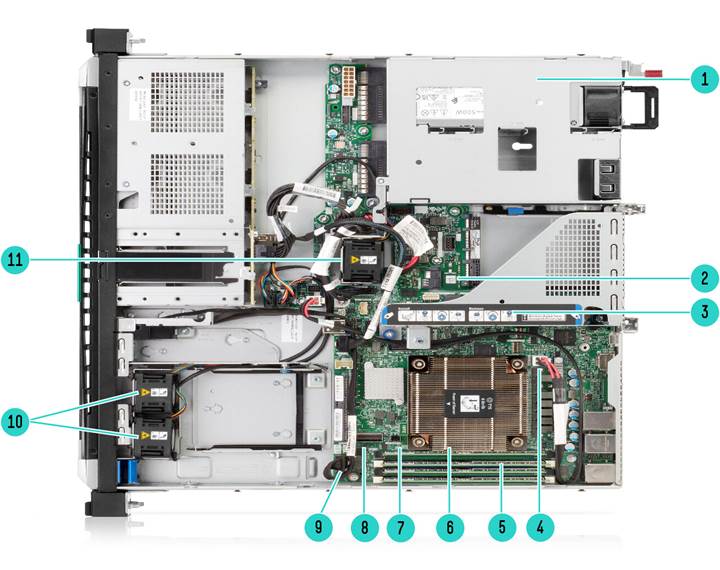

Internal View - Standard for all 4SFF DL20 Gen11
| 1 |
Power Supply (1x500W shown) |
| 2 |
M.2 Slot (Supports the iLO/M.2 Enablement Kit option) |
| 3 |
PCIe Riser |
| 4 |
4-pin processor power connector |
| 5 |
4 DDR5 DIMM slots |
| 6 |
Processor shown with heatsink |
| 7 |
Chassis intrusion detection switch connector |
| 8 |
SlimSAS x8 port |
| 9 |
Front I/O & USB 3.2 Gen 1 & iLO service port connector |
| 10 |
Fan cage shown with 2 fans |
| 11 |
Central fan assembly (3rd fan) |

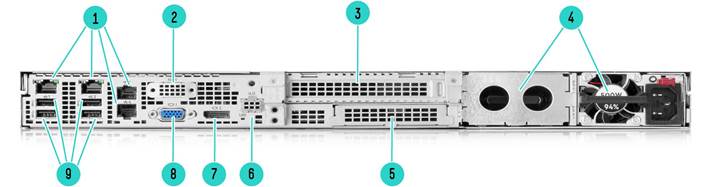

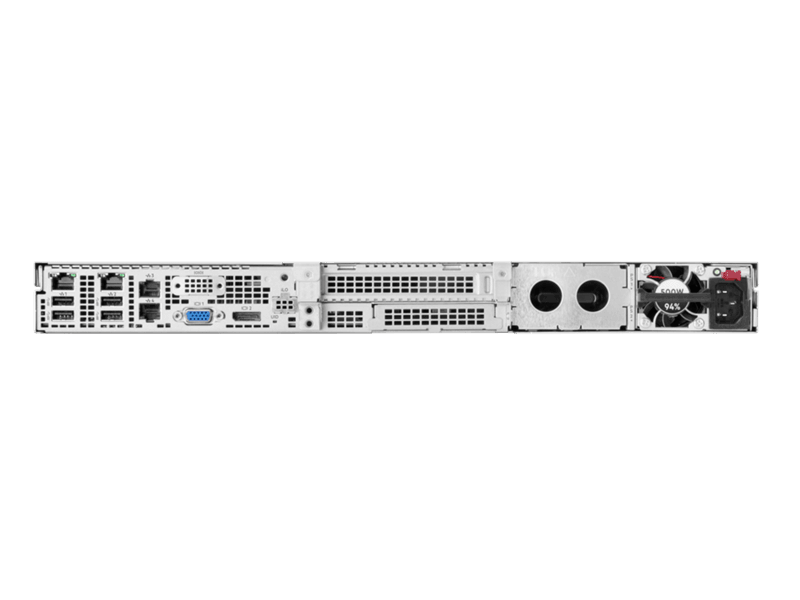

Rear View – Standard for all DL20 Gen11
| 1 |
NIC ports (1Gb) |
| 2 |
Serial Port (optional) |
| 3 |
Slot 1 PCIe 5.0 |
| 4 |
Redundant Power Supplies (2nd power supply not shown) |
| 5 |
OCP 3.0 Slot |
| 6 |
iLO dedicated network port (optional) |
| 7 |
Display Port |
| 8 |
VGA Port |
| 9 |
USB 3.2 Gen1 ports |
