HPE ProLiant DL20 Gen10 Plus server
ProLiant DL10 Servers


HPE ProLiant DL20 Gen10 Plus Server

HPE Products
HPE ProLiant DL20 Gen10 Plus Server
HPE ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 16GB-U 2LFF 290W PS Server
HPE ProLiant DL20 Gen10 Plus rack server with one Intel Xeon E-2314 processor, 16 GB memory, two LFF drive bays and one 290 W non-redundant power supply
#P44113-B21
Get a Quote!
HPE ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 8GB-U 2LFF-NHP 290W PS Server
HPE ProLiant DL20 Gen10 Plus rack server with one Intel Xeon E-2314 processor, 8 GB memory, two LFF drive bays and one 290 W non-redundant power supply
#P44112-B21
Get a Quote!
HPE ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 16GB-U 4SFF 500W RPS Server
HPE ProLiant DL20 Gen10 Plus rack server with one Intel Xeon E-2314 processor, 16 GB memory, four SFF drive bays and one 500 W redundant power supply
#P44114-B21
Get a Quote!
HPE ProLiant DL20 Gen10 Plus E-2336 2.9GHz 6-core 1P 16GB-U 4SFF 500W RPS Server
HPE ProLiant DL20 Gen10 Plus rack server with one Intel Xeon E-2336 processor, 16 GB memory, four SFF drive bays and one 500 W redundant power supply
#P44115-B21
Get a Quote!

Click here to jump to more pricing!

Overview:

Are you looking for a compact and versatile 1U server that supports workloads in a variety of environments?

The reliable HPE ProLiant DL20 Gen10 Plus server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the portable short-depth rack form factor in small, remote, or branch offices, as a compact yet powerful point of sale platform in transport, retail, and hospitality environments, or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this 1 socket, 1U server featuring Intel® Xeon® E processors provides unique enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements, and a wide range of qualified options fits a variety needs.

What's New

  • 290W non-hot-plug power supply with Platinum power efficiency.
  • Supports Intel® Xeon® E-2300 series processors, up to 8 cores.
  • HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
  • Dedicated HPE iLO management port as an option kit for faster data transmission with enhanced security.
  • Two PCIe Gen4 slots for greater I/O bandwidth.

Features:

Compact, Secure, and Reliable Design for an Affordable Solution

HPE ProLiant DL20 Gen10 Plus server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.

HPE ProLiant DL20 Gen10 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.

Handle light workloads up to the some of the most demanding requirements with affordable configuration choices and a wide variety of HPE Qualified Options.

Right Balance of Performance, Flexibility, Reliability, and Manageability for Growing Business Needs

You have a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR4 ECC memory to handle any demands that your workload might make on the HPE ProLiant DL20 Gen10 Plus server.

Experience outstanding configuration flexibility with support for up to two large form factor (LFF) or six small form factor (SFF) drives, four DDR4 UDIMMs, 290W, 500W, or 800W power supplies, and a more efficient deployment of options via HPE FlexibleLOM and PCIe slots - now supporting PCIe 4.0.

The reliable HPE ProLiant DL20 Gen10 Plus server combines a dense and compact form factor with redundant power supply capability, which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.

Along with an embedded 2 x 1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters that offer a choice of networking bandwidth (1GbE to 10GbE) and fabric, so you can adapt and grow to changing business needs.

HPE iLO5 provides a more efficient and easier server management. It enables large-scale firmware deployment, improved GUI to simplify management with industry-standard APIs, and easy system debug access.

Security Innovations

Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen10 Plus server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with silicon root of trust from HPE.

Millions of lines of firmware code run before server operating system boots. With Runtime Firmware Verification, enabled by the optional HPE iLO Advanced Premium Security Edition, the server’s firmware is checked every 24 hours, verifying validity and credibility of essential system firmware.

Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised server.

Additional security options are available with Trusted Platform Module (TPM) to avoid unauthorized access to the server and store artifacts used to authenticate the server platforms, while the Intrusion Detection Kit logs and alerts when the server hood is removed for further protection.

Industry-leading Services and Ease of Deployment

HPE ProLiant DL20 Gen10 Plus server comes standard with a complete set of services from HPE Pointnext Services, delivering confidence, reducing risk, and helping customers realize agility and stability.

HPE Pointnext Services simplify the stages of your IT journey. Advisory and Transformation Services professionals understand customer challenges and design an ideal solution. Professional Services enables rapid deployment of solutions.

Operational Services from HPE Pointnext Services includes: HPE Pointnext Complete Care, HPE Pointnext Tech Care and project-based services, such as Integration and Performance services. Additional services can be added to customize your experience at any stage of your IT lifecycle.

HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Specifications:


HPE ProLiant DL20 Gen10 Plus Server Specifications
Processor Type Intel®
Processor family Intel® Xeon® E-2300 series
Processor core available 4 to 8 core, depending on processor
Processor cache Up to 16 MB Intel® Smart Cache, depending on processor
Maximum memory 128 GB
Memory slots 4 DIMM slots, maximum
Memory type HPE DDR4 Standard Memory
Memory protection features ECC
Drive supported 2 Non-hot plug LFF or 2 Hot plug LFF or 4+2 Hot plug SFF
Infrastructure management HPE iLO5
Power supply type 2 Flexible Slot power supplies maximum, depending on model
Expansion slots Two maximum, for detailed descriptions refer to the QuickSpecs
Network controller HPE embedded 1Gb 2-port BCM5720 Network Adapter
Storage controller Intel® VROC SATA (formerly known as Intel® RSTe)
Warranty Server warranty includes 3-years parts, 3-years labor, and 3-years on-site support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, please Contact Us.
Processor number 1
Processor speed 5.0 GHz, maximum depending on processor
Form factor 1U
Minimum dimensions ( H x W x D) 1.70 x 17.11 x 15.05 in
Minimum dimensions ( H x W x D) 4.32 x 43.46 x 38.22 cm
Weight 13.18 lb minimum, 20.81 lb maximum
Weight 6 kg minimum, 9.46 kg maximum

Hardware Specs:

HPE ProLiant DL20 Gen10 Plus server

The dense and compact HPE ProLiant DL20 Gen10 Plus server powered by Intel® Xeon® E and Pentium® Processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 5.

HPE ProLiant DL20 Gen10 Plus- 2 LFF Front View Gen10 Plus
HPE ProLiant DL20 Gen10 Plus — 2 LFF Front View Gen10 Plus

1 Access Panel
2 Optical drive bay
3 Serial number/iLO information pull tab
4 Front Fan Assembly
5 System Power LED
6 UID LED
7 Health LED
8 NIC Status LED
9 USB 3.2 Gen1 Port
10 iLO Service Port (USB)
11 Two-bay LFF hot-plug drive bays

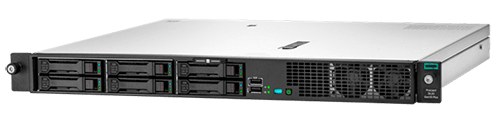

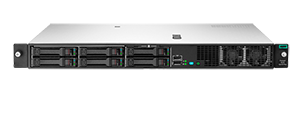

HPE ProLiant DL20 Gen10 Plus server - 4 (+2) SFF Front View Gen10 Plus
HPE ProLiant DL20 Gen10 Plus server - 4 (+2) SFF Front View Gen10 Plus

1 Access Panel
2 2 SFF hot-plug drive bays (optional)
3 Serial number/iLO information pull tab
4 Front Fan Assembly
5 System Power LED
6 UID LED
7 Health LED
8 NIC Status LED
9 USB 3.2 Gen1 Port
10 iLO Service Port (USB)
11 Four-bay SFF hot-plug drive bays

Internal View - Standard for all 2LFF DL20 Gen10 Plus
Internal View - Standard for all 2LFF DL20 Gen10 Plus

1 Fan cage shown with 2 fans
2 Processor shown with heat sink
3 Four DDR4 DIMM Slots
4 System Battery
5 Central fan assembly (3rd fan)
6 Power Supply (1x290W shown)
7 Not shown: Optional Smart Storage Battery
8 Modular Smart Array connector
9 TPM 2.0 Gen10
10 PCIe Riser
11 Not shown : Dedicated iLO/M.2 LP Enablement Kit

Internal View - Standard for all 4SFF DL20 Gen10 Plus
Internal View - Standard for all 4SFF DL20 Gen10 Plus

1 Fan cage shown with 2 fans
2 Processor shown with heat sink
3 Four DDR4 DIMM Slots
4 System Battery
5 Central fan assembly (3rd fan)
6 Power Supply (1x290W shown)
7 Not shown: Optional Smart Storage Battery
8 Modular Smart Array connector
9 TPM 2.0 Gen10
10 PCIe Riser
11 Not shown : Dedicated iLO/M.2 LP Enablement Kit

Rear View – Standard for all DL20 Gen10 Plus
Rear View – Standard for all DL20 Gen10 Plus

1 Slot 1 PCIe 4.0
2 Slot 2 PCIe 4.0
3 Option: Serial Port
4 290W Non hotplug Power Supply
5 UID LED
6 Two USB 3.2 Gen1 Ports
7 NIC Port (1Gb)
8 NIC port (1Gb) / Sideband iLo management port (configurable in RBSU)
9 VGA port
10 Dedicated iLO Management Port (Default)

What's New

  • Supports latest Intel® Xeon® E-2300 and Pentium® processors up to 8 cores and 3200MT/s UDIMM with support for Intel® Software Guard Extensions. Intel® SGX is an architecture extension designed to increase the security of application code and data.
  • Dedicated iLO Management Port & serial port option kit for faster and more secure data transmission
  • 3200 MT/s HPE DDR4 Standard Memory UDIMM offering 8GB, 16GB, and 32GB. Max 128GB memory capacity.
  • Support for onboard M.2 NVMe/SATA SSD.

Form Factor

  • 1U rack

Chassis Types

  • 4 SFF with options supporting: +2 SFF
  • 2 LFF Hot Plug
  • 2 LFF Non Hot Plug

System Fans

  • Includes 3 performance single rotor non-hot plug and non-redundant fans

Notes: This applies for all three chassis: 2LFF NHP, 2LFF HP and 4SFF HP

HPE ServicesServices:

HPE POINTNEXT SERVICES

HPE Pointnext Services brings together technology and expertise to help you drive your business forward and prepare for whatever is next.

Operational Services from HPE Pointnext Services

HPE Pointnext Tech Care provides fast access to product-specific experts, an AI-driven digital experience, and general technical guidance to help enable constant innovation. We have reimagined IT support from the ground up to deliver faster answers and greater value. By continuously searching for better ways to do things—as opposed to just fixing things that break—HPE Pointnext Tech Care helps you focus on achieving your business goals.

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment, and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.

HPE Integration and Performance Services help you customize your experience at any stage of your product lifecycle with a menu of services based on individual needs, workloads, and technologies.

  • Advise, design, and transform
  • Deploy
  • Integrate and migrate
  • Operate and improve
  • Financial Services
  • Greenlake Management Services
  • Retire and sanitize
  • IT Training and personal development

Other related services

HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Defective Media Retention is optional and allows you to retain Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE GREENLAKE

HPE Greenlake is HPE’s market-leading IT as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model. HPE GreenLake delivers public cloud services and infrastructure for workloads on premises, fully managed in a pay per use model.
