HPE ProLiant DL145 Gen11 8124P Server
16‑core 2.45GHz, 64GB RAM

Overview:

Ready to experience exceptional performance, affordability, and versatility with a modern edge computing server solution?

The HPE ProLiant DL145 Gen11 server is a 2U, single processor, robust edge computing server designed to cater to the needs of retail, manufacturing, telecommunications, and various other industries. It offers a compelling alternative to traditional servers with its sleek design, affordable pricing, and quiet operation.

Powered by the 4th Generation AMD® EPYC™ 8004 Zen4c architecture, this server provides up to 64 energy-efficient cores, PCIe Gen5 speed, and high-performance EDSFF storage. It can operate continuously in temperatures ranging from -5°C to 55°C and withstand high-dust and high-vibration environments. It is engineered for today's hybrid world, allowing enterprises to virtualize traditional IT applications to power their businesses and accelerate AI success.

What's New

• Support for 8 to 64 cores and TDP ratings of up to 200W.
• AMD EPYC 8004 (Siena) processor family, customized for edge computing and environments with physical constraints such as limited power, space, or cooling, 8 to 64 cores, TDP ratings of up to 200W.
• Compact size, 15 inches wide, 16 inches deep (without bezel), 20 inches (with bezel).
• Support for three single wide GPUs.
• Various mounting option - Wall, desk, and rack.
• Operating temperature support up to to 55° C, bezel with air filter, designed to qualify for NEBS Level 31.

¹ Typical NEBS certification is 90 days post production manufacture

Features:

Get Robust Edge Processing Power with a Small Server Footprint

The HPE ProLiant DL145 Gen11 reduces the reliance on cloud infrastructure by tackling a variety of low-latency workloads with efficient processing powered by AMD Siena processors.

The server supports up to 64 cores and offers support for 3x single wide GPUs, customizing its performance for edge workloads while simultaneously delivering more energy efficiency through new EDSFF performance drives.

Additionally, the HPE Integrated Lights Out (iLO) and HPE Compute Ops Management allow for ease of management in a variety of locations. The HPE ProLiant DL145 Gen11 small server footprint puts sustainability efforts top of mind for users.

Customized for Diverse Portfolio of Edge Computing Environments

The HPE ProLiant DL145 leverages a 2U form factor, providing better cooling operation, airflow, and quiet acoustics.

Measuring approximately 15 inches wide and 16 inches deep, the HPE ProLiant DL145 Gen11 can be rack, wall, or desk mounted, providing flexibility for your unique business environment.

Designed to accommodate a variety of environmental constraints, this server can handle up to 55 degree Celsius operating temperature and can withstand moderate to extreme shocks and vibration.

In locations with heavy amounts of dust and debris, the large air filter of the HPE ProLiant DL145 Gen11 is able to filter out harmful airborne material, keeping your device running efficiently.

Keeping your Data and Property Safe with Enhanced Security Features

The HPE ProLiant DL145 Gen11 provides the high-quality security features needed to verify your peace of mind.

Hewlett Packard Enterprise cares about keeping your property and data safe, especially at the edge, where data and property are more vulnerable to attack.

Built on the Hewlett Packard Enterprise signature silicon root of trust, HPE iLO 6, IDevID, and platform certificates, you can be sure your data is being protected from outside threats.

Chassis Intrusion detection with bezel and Kensington locks keep your device safe from unwarranted theft or intrusions.

Technical Specifications:

HPE ProLiant DL145 Gen11 8124P 2.45GHz 16c 1P 2x32GB-R 2SFF NS204i-u MR216i-p 2x700W PS NA Server Specifications
Detailed product description	HPE ProLiant DL145 Gen11 server with one AMD EPYC™ 8124P Processor, 64 GB (2x32 GB) Dual Rank Memory, one HPE MR216i-p Gen11 x16 Lanes andout Cache PCI SPDM Plug-in Storage Controller, oneHPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device, Drive Bay(s) for 2 small form factor drives, four standard fans, two HPE ProLiant DL110 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kits, and a 3/3/3 warranty
Product Number	P79810-005
Processor name	AMD EPYC™ 8124P (16 core, 2.45 GHz, 64 MB L3, 125W)
Processor number	1 processor included
Processor core available	16 core
Processor cache	64 MB L3
Processor speed	2.45 GHz
Power supply type	2x HPE ProLiant DL110 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kit
Expansion slots	4 x PCIe Gen5 (2 FHFL, 1 FHHL, 1OCP 3.0) for detailed descriptions reference the QuickSpecs
Memory type	HPE DDR5 Smart Memory
Included Memory	64 GB (2x32 GB, 4800 MT/s)
Included drives	None ship standard, 2 SFF supported
Form factor	2U Rack
System fan features	4x Standard Fans
Network controller	Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Storage controller	HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses), HPE Compute Ops Management (subscription included)
Warranty	3/3/3: Server warranty includes three years of parts, three years of labor, and three years of onsite support coverage.

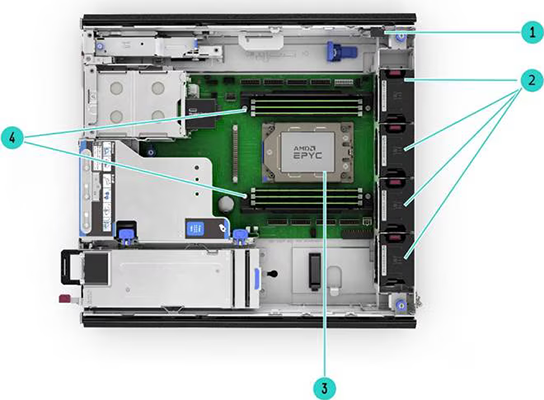

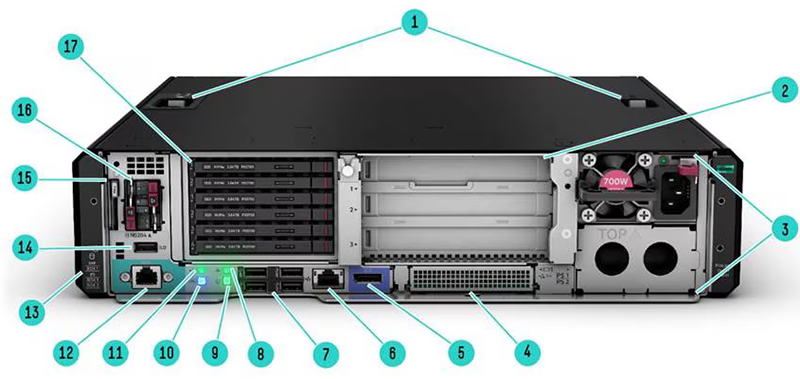

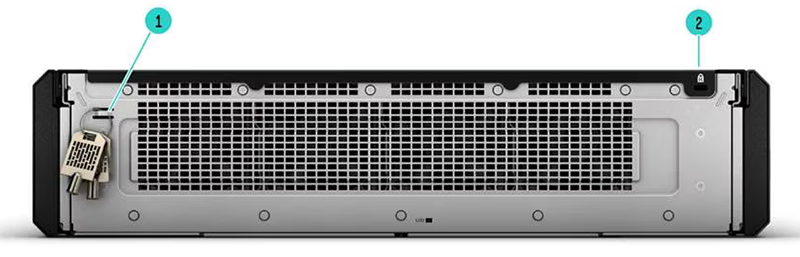

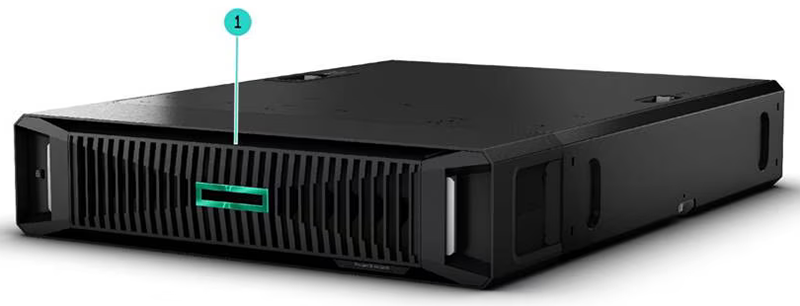

Hardware Specs:

Services:

HPE SERVICES

No matter where you are in your transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From strategy and planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

Consulting services

Experts can help you map out your path to hybrid cloud and optimize your operations.

Managed services

HPE runs your IT operations, giving you unified control, so can focus on innovation.

Operational services

Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources.

• HPE Complete Care Service: a modular service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals. All delivered by an assigned team of HPE experts.
• HPE Tech Care Service: the operational service experience for HPE products. The service provides access to product specific experts, an AI driven digital experience, and general technical guidance to help reduce risk and search for ways to do things better.

Lifecycle Services

Address your specific IT deployment project needs with tailored project management and deployment services.

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

The Defective Media Retention (DMR) service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. Comprehensive Defective Material Retention (CDMR) allows you to keep all data retentive components.

HPE GREENLAKE

HPE GreenLake edge-to-cloud platform is HPE’s market-leading as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model, on premises, fully managed in a pay per use model.

Documentation:

Download the HPE ProLiant DL145 Gen11 8124P 2.45GHz 16c 1P 2x32GB-R 2SFF NS204i-u MR216i-p 2x700W PS NA Server Data sheet (.PDF)

Download the HPE ProLiant DL145 Gen11 server Datasheet (.PDF)

Download the HPE ProLiant DL145 Gen11 server Quick Specs (.PDF)
