Overview:
Are you a small office or small business with branch offices looking for a budget friendly server that can fit almost anywhere?
The HPE ProLiant MicroServer Gen11 delivers an affordable, compact yet powerful entry level server that you can customize for on-premises or for hybrid cloud possibilities while still meeting the enterprise-class performance, security, reliability, and expandability standards of the rest of the HPE ProLiant enterprise class server portfolio.
With a mini tower design, place it flat or vertically or wall mounted, depending on customer environment. The latest Intel® Xeon® E and Pentium® processors supported to deliver compute performance, increased memory capacity, as well as security and remote management into the server with HPE iLO silicon root of trust. The affordable starting price makes the HPE ProLiant MicroServer Gen11 a good value that has the networking and performance capacity to grow with your business as your needs and budget change over time.
What's New
- Modern Intel Xeon E-2400 and Pentium Gold processors.
- Four 4400 MT/s HPE DDR5 UDIMMs, offering 16, 32 GB. Up to 128 GB memory capacity support.
- Two PCIe expansion slots with the new PCIe 5.0 support.
- Fast OS Boot with the M.2 slot (optional slot available on the optional dedicated HPE iLO/M.2/serial port kit).
- Optional Serial Port (via the dedicated HPE iLO/M.2/serial port option kit).
- Support for HPE iLO6.
Features:
Proven, yet Reimagined for the Data-Driven Edge
HPE ProLiant MicroServer Gen11 is a powerful yet affordable server for your daily business workloads.
With four 4400 MT/s HPE DDR5 UDIMMs, it offers 16, 32 GB. and up to 128 GB memory capacity support.
Two PCIe expansion slots with the PCIe 5.0 support provide reliable scalability.
Optional wall mount kit provides deployment flexibility.
Small, Quiet and Uniquely Designed Servers Bring the User Experience to a New Level
HPE ProLiant MicroServer Gen11 features fast setup with a unique form factor that is compact and ideal for small spaces.
Embrace remote management with optional HPE iLO6 integration.
Mini in Size yet still Powerful and Secure
HPE ProLiant MicroServer Gen11 features iLO Silicon root of trust with server management to provide enhanced security, proven reliability and superb usability.
Modern Intel Xeon E-2400 and Pentium Gold processors provide impressive performance.
Offer enterprise-grade security with TPM 2.0 embedded.
Hardware Specs:
HPE ProLiant MicroServer Gen11
HPE ProLiant MicroServer Gen11 delivers an affordable compact yet powerful entry level server that you can customize for on-premises, edge, hybrid cloud, or even workloads demanding datacenter performance. It has the ultra mini tower form factor and can be placed flat or vertically or wall-mounted depending on the customer environment. The latest Intel Xeon® E and Pentium® supported processors deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4 DIMM slots for DDR5 memory and 2 PCIe slots, whether you want a general-purpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.

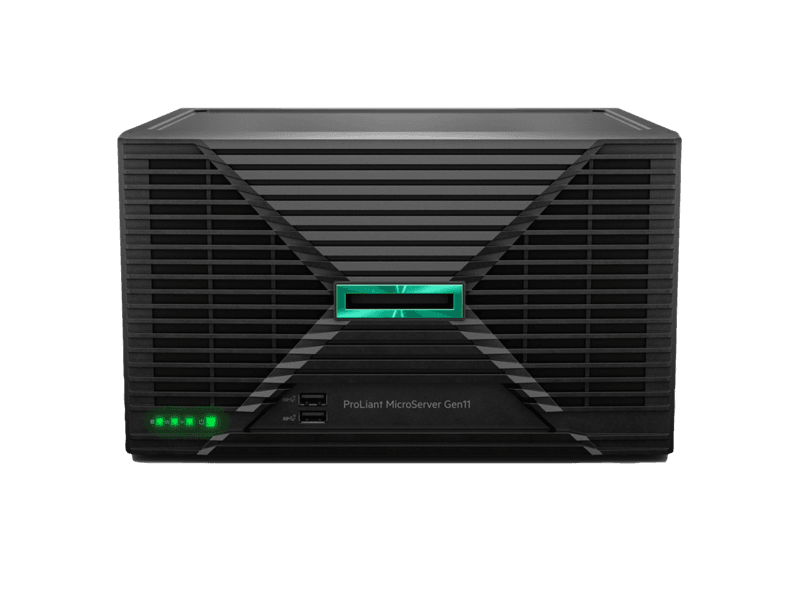

Front View (External)
| 1 |
Drive activity LED |
| 2 |
NIC status LED1 |
| 3 |
Health LED |
| 4 |
Power on/ Standby button and system power LED |
| 5 |
USB 3.2 Gen2 Type-A ports |
Notes: 1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
Front View (Internal)
| 1 |
Four (4) LFF NHP SATA HDD cage |
| 2 |
Hard drive screws |
| 3 |
USB 3.2 Gen2 Type-A ports |

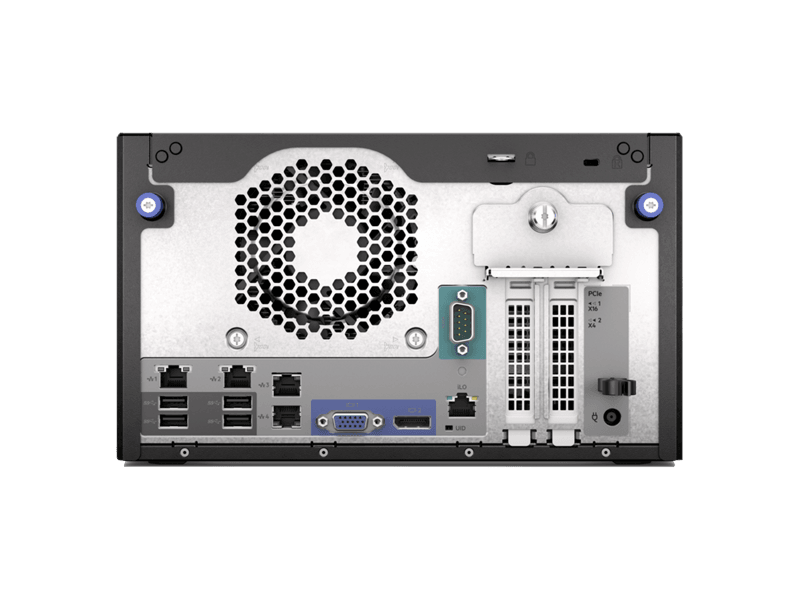

Rear View
| 1 |
Padlock eye |
| 2 |
Kensington security slot |
| 3 |
(1) PCIe Gen5 low-profile slot (PCIe5 x16) |
| 4 |
(1) PCIe Gen4 low-profile slot (PCIe4 x8) |
| 5 |
Power clip hole (for the power cord clip to firmly secure the power adapter cord) |
| 6 |
Power jack |
| 7 |
Serial port (optional, enabled by the iLO/M.2/serial port kit) |
| 8 |
iLO dedicated NIC port (optional, enabled by the iLO/M.2/serial port kit) |
| 9 |
Display Port 1.1a |
| 10 |
VGA |
| 11 |
Four (4) NIC ports (NIC1-4 from left) |
| 12 |
Four (4) USB 3.2 Gen1 Type-A ports |

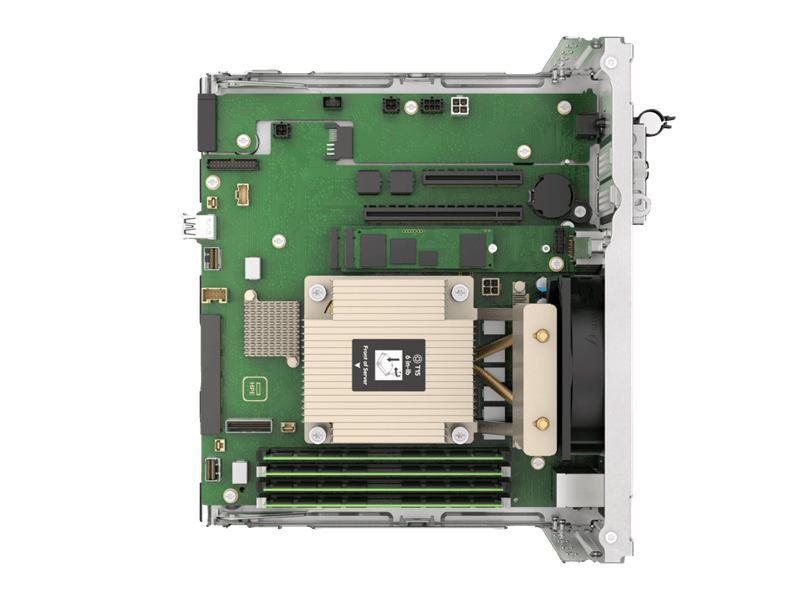

Mainboard
Internal View
| 1 |
System board: System power connector |
| 2 |
Fan connector |
| 3 |
Slot 1 PCIe5 x16 |
| 4 |
PDB: System power connector |
| 5 |
Drive power connector |
| 6 |
PDB: 4-pin processor power connector |
| 7 |
Slot 2 PCIe4 x8 |
| 8 |
Coin battery |
| 9 |
System board: 4-pin processor power connector |
| 10 |
System fan |
| 11 |
One (1) processor and heatsink |
| 12 |
Four (4) DDR5 UDIMM slots |
| 13 |
Ambient temperature sensor connector |
| 14 |
SlimSAS x4 port |
| 15 |
Storage controller backup power connector |
