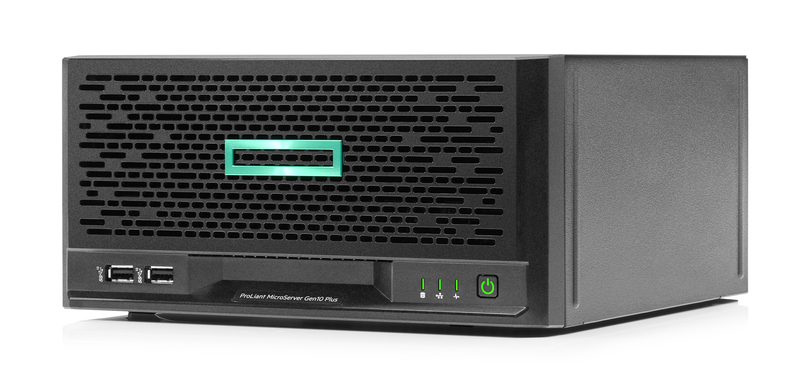

HPE ProLiant MicroServer Gen10 Plus E-2224 S100i 4LFF-NHP 1TB 180W External PS Server
HPE ProLiant MicroServer Gen10 Plus delivers an affordable compact yet powerful entry level server that you can customize for on-premises, hybrid cloud or even workloads demanding datacenter performance. It is the most compact MicroServer that we have launched so far, which can be placed flat or vertically depending on your space. The latest Intel Xeon® E and Pentium® processors supported to deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4x 1GbE onboard NICs and USB 3.2 Gen2 Type-A, whether you want a general purpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.
- Supports Intel® Xeon® 2200 processor series and Pentium® G processors, providing both compute power and affordable cost.
- HPE iLO 5 provides both Silicon Root of Trust and remote management to the server supporting iLO 5 standard and essential features, you can also upgrade to HPE iLO 5 Advanced.

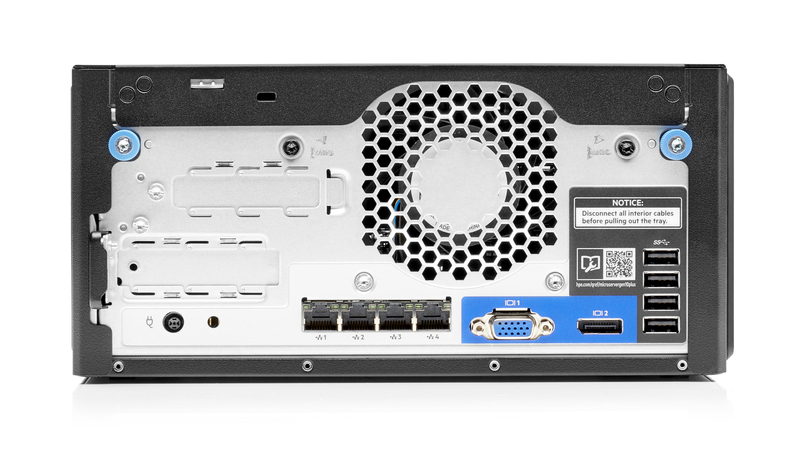

- Four onboard NIC ports provide enhanced networking capability versus previous generations.
- Expansion slot for more flexible usage - one x16 bandwidth connector.

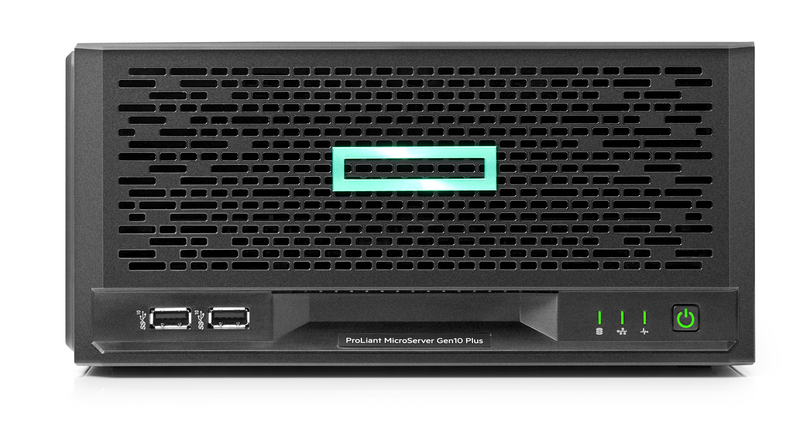

- The most compact design of a microserver ever! Half the height compared to the previous generation, it can be placed horizontally or vertically.
HPE MicroServer Now More Micro and Versatile, Yet More Powerful
The HPE ProLiant MicroServer Gen10 Plus product height is half that of the previous generation (MicroServer Gen10). Measuring at only 4.6 in (11.7 cm) it can be placed either horizontally or vertically to fit different customer work space.
The HPE ProLiant MicroServer Gen10 Plus server, powered by up to four cores in the Intel® Xeon® E Processor and up to 32 GB of 2666 MT/s DDR4 ECC UDIMM, delivers just-right performance for small business applications.
HPE iLO 5 standard and essential functionality (Optional), remote monitoring, restore and maintenance are now available on HPE ProLiant MicroServer Gen10 Plus. Supported by installing an optional iLO Enablement Kit which includes an iLO dedicated port. InfoSight and OneView are also supported.
Four embedded network ports provide the networking needs for small business customers. Optional 1GbE and 10GbE BASE-T and SFP+ standup option cards are supported for those who require more.
The HPE ProLiant MicroServer Gen10 Plus server is one of the Hewlett Packard Enterprise industry-standard servers with major firmware anchored directly into the silicon security protection built-in across the server lifecycle, starting with Silicon Root of Trust.
Secure Recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code.
Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.
Industry-Leading Services and Ease of Deployment
The HPE ProLiant MicroServer Gen10 Plus server comes with a complete set of services from HPE Pointnext Services, delivering confidence, reducing risk, and helping you realize agility and stability.
HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Professional Services understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
Services provided under Operational Services include: HPE GreenLake Flex Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services, and multivendor coverage.
Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
HPE Intelligent Provisioning (IP) and HPE Rapid Setup both make server deployment easy, custom RAID and setup with Intelligent Provisioning and auto-intelligent RAID with Rapid Setup.
|HPE ProLiant MicroServer Gen10 Plus Specifications|
|Processor Name||Intel Xeon E-2224|
|Number of processors||1|
|Processor core available||4|
|Processor cache||8 MB L3|
|Processor speed||3.4 GHz|
|Power supply type||180W external power adapter|
|Expansion slots||1x 16 PCIe Gen3 Slot|
|Standard memory||16 GB (1x 16 GB) UDIMM|
|Hard Drive Number (included)||One included, four LFF non-hot plug drives supported||Memory type||HPE DDR4 Standard Memory|
|System fan features||Non-hot plug, non-redundant|
|Network controller||1 Intel i350 AM4 1Gb, 4-port network controller|
|Storage controller||1 HPE Smart Array S100i|
|Product dimensions ( H x W x D)||4.58 x 9.65 x 9.65 in (HxWxD)
11.6 x 24.5 x 24.5 cm (HxWxD)
|Warranty Standard Statment||Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part, 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/. NOTE: Warranty does not cover support for ClearOS. Support for ClearOS is provided by ClearCenter.|
- Pricing and product availability subject to change without notice.
