Overview:
Do you need a versatile server with built-in security and flexibility that addresses key applications such as Machine Learning or Deep Learning and Big Data Analytics?
Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the HPE ProLiant DL385 Gen10 Plus v2 server offers the 3rd Generation AMD EPYC™ Processors, delivering more performance compared to the prior generation. With up to 128 cores (per 2-socket configuration), 32 DIMMs for memory up to 3200 MHz, the HPE ProLiant DL385 Gen10 Plus v2 server delivers low cost virtual machines (VMs) with increased security. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL385 Gen10 Plus v2 server offers improved data transfer rates and higher networking speeds. Combined with supportability for graphic accelerators, a more advanced storage RAID solution and storage density, the HPE ProLiant DL385 Gen10 Plus v2 server is the ideal choice for ML/DL and Big Data Analytics.
What's New
- Powered by the 3rd Generation AMD EPYC™ processors with more compute performance compared to the previous generation.
- Enhanced storage management with Tri-mode storage controllers supporting NVMe/SAS/SATA drives.
- Supports 3rd Generation AMD EPYC™ processors with 3D V-cache, providing 768 MB of L3 cache per processor.
Features:
Workload Optimization
The HPE ProLiant DL385 Gen10 Plus v2 server supports up to 8 single wide or 3 double wide (active/passive) GPUs to accelerate graphic intense workloads.
Harness major compute power and support up to two of the 3rd Generation AMD EPYC™ processors with up to 64-core 280W.
Tri-mode storage controllers enhance storage management coupled with an advanced storage RAID solution and storage density.
It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
360 Degree Security
The HPE ProLiant DL385 Gen10 Plus v2 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC) to manage secure boot, memory encryption, and secure virtualization.
HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component – hardware and firmware – to provide verification that the server begins its lifecycle through an uncompromised supply chain.
HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, identifies and contains malicious code, and protects healthy servers.
HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.
When it’s time to retire or repurpose an HPE ProLiant server, one-button secure erase speeds and simplifies the complete removal of passwords, configuration settings and data, preventing inadvertent access to previously secured information.
Intelligent Automation
The HPE ProLiant DL385 Gen10 Plus v2 server simplifies and automates management tasks, establishing a solid foundation for an open, hybrid cloud platform enabled by composability.
Embedded in HPE servers, HPE Integrated Lights-Out (iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.
Automation and software-defined control reduces time spent on provisioning and maintenance, and reduces deployment time.
Delivered as-a Service
The HPE ProLiant DL385 Gen10 Plus v2 server is supported by HPE GreenLake to simplify IT infrastructure management across your entire hybrid estate. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
Rapidly deploy a broad portfolio of cloud services such as machine learning operations (ML Ops), containers, storage, compute, virtual machines (VMs), data protection, and more. Workload-optimized, preconfigured solutions can be delivered to your facility quickly, decreasing your downtime.
Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT beyond traditional financing and leasing, offering options that free trapped capital, accelerate infrastructure updates, and provide for on-premises pay-per-use consumption with HPE GreenLake.
Hardware Specs:

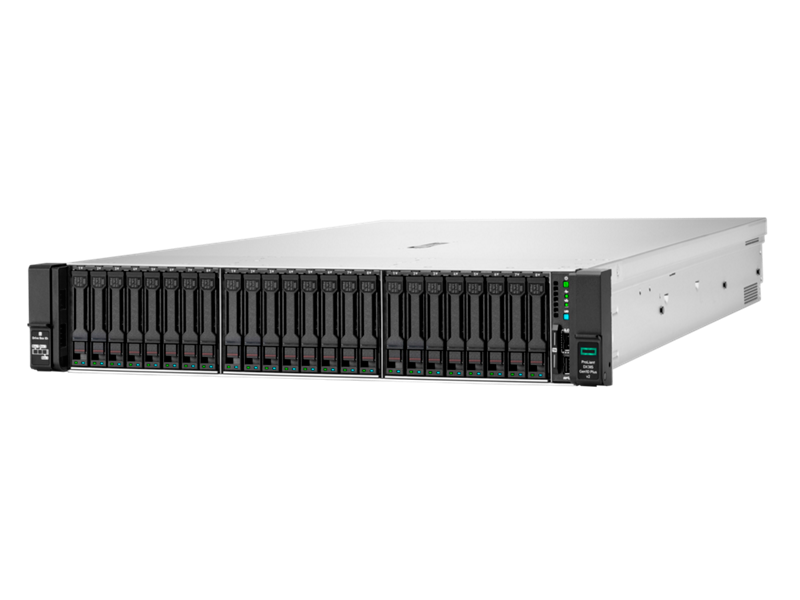

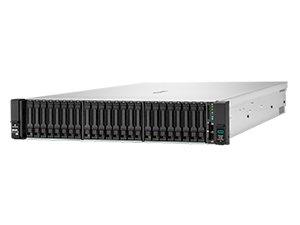

HPE ProLiant DL385 Gen10 Plus v2 server
The HPE ProLiant DL385 Gen10 Plus v2 Server is redefining price/performance with the new math for virtualized compute. Powered by the latest AMD® EPYC® 7003 Series Processors , the HPE ProLiant DL385 Gen10 Plus v2 Server offers greater processing power, memory speeds up to 3200 MT/s. and data transfer rates with PCIe Gen4 capabilities.
This 2P, 2U server has been designed with flexibility while delivering a high core count and large memory footprint. Choose this purpose-built platform for virtualization, High Performance Compute and memory centric workloads.

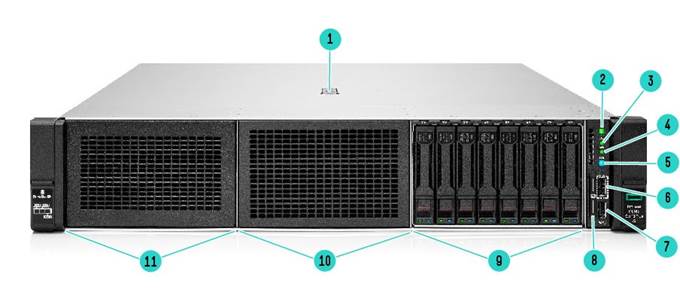

HPE ProLiant DL385 Gen10 Plus v2 8 SFF Server- Front View
| 1 |
Quick removal access panel |
| 2 |
Power On/Standby button and system power LED button |
| 3 |
Health LED |
| 4 |
NIC Status |
| 5 |
Unit ID button |
| 6 |
iLO front service port |
| 7 |
USB 3.1 Gen1 |
| 8 |
Serial label pull tag |
| 9 |
Drive Bay 3. 8 SFF SAS/SATA shown (Box 3)1 |
| 10 |
Drive Bay 2. Blank shown (Box 2)2 |
| 11 |
Drive Bay 1. Blank shown (Box 1)3 |
Notes:
- 18 SFF U.2/U.3 optional
- 28 SFF SAS/SATA or 8 SFF U.2/U.3 optional
- 38 SFF SAS/SATA or 8 SFF U.2/U.3 or Universal Media Bay optional

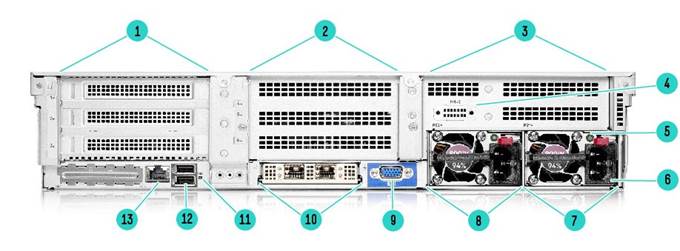

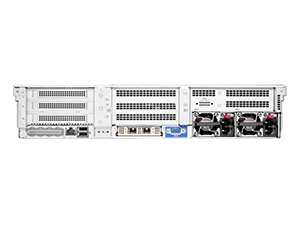

HPE ProLiant DL385 Gen10 Plus v2 Server - Rear View
| 1 |
Primary Riser. PCIe Slots1 |
| 2 |
Optional Secondary Riser. PCIe Slots2 |
| 3 |
Tertiary Riser. PCIe Slots3 |
| 4 |
Optional serial port (not shown) |
| 5 |
Power supply power LED |
| 6 |
Power supply power connection |
| 7 |
HPE Flexible Slot Power Supply bay 1 |
| 8 |
HPE Flexible Slot power supply bay 2 |
| 9 |
VGA connector |
| 10 |
OCP 3.0 Slot |
| 11 |
Unit ID LED |
| 12 |
USB connectors 3.1 Gen1 (2) |
| 13 |
Dedicated iLO management port |
Notes:
- Slots 1-3 top to bottom, riser shipped standard, not shown.
- Slots 4-6 top to bottom, not shown, requires second riser card, and second processor. Optional 2 SFF rear drives.
- Slots 7-8 top to bottom, not shown. Optional 2 SFF rear drives.

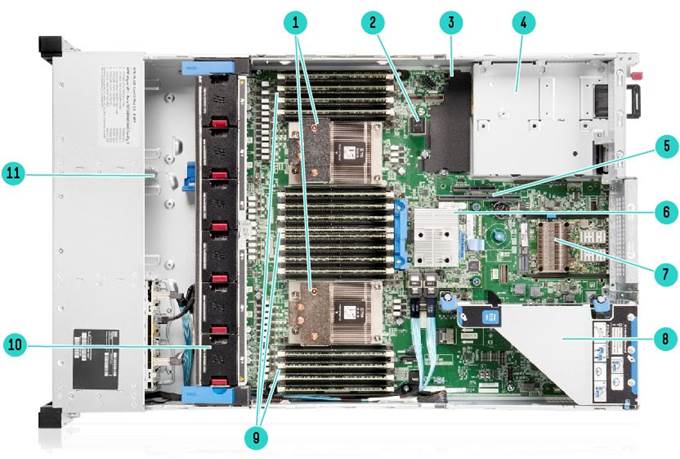

HPE ProLiant DL385 Gen10 Plus v2 Server - Internal View
| 1 |
2 Processors (heat sinks shown) |
| 2 |
Internal USB 3.1 Gen1 connector |
| 3 |
Chassis intrusion detection connector |
| 4 |
Hot Plug redundant HPE Flexible Slot Power supplies |
| 5 |
Connection for second (optional) riser (requires second CPU) |
| 6 |
Optional HPE Flexible Smart Array Controller (Type -a shown) |
| 7 |
OCP 3.0 Slot |
| 8 |
Primary PCIe riser, standard (optional double wide GPU riser) |
| 9 |
DDR4 DIMM slots. Shown fully populated in 32 slots (16 per processor) |
| 10 |
Fan cage shown with 6 standard Hot-plug fans (high performance fans optional) |
| 11 |
Optional Smart Storage Battery location (Battery not shown) |
Services:
HPE POINTNEXT SERVICES
HPE Pointnext Services brings together technology and expertise to help you drive your business forward and prepare for whatever is next.
Operational Services from HPE Pointnext Services
HPE Pointnext Tech Care provides fast access to product-specific experts, an AI-driven digital experience, and general technical guidance to help enable constant innovation. We have reimagined IT support from the ground up to deliver faster answers and greater value. By continuously searching for better ways to do things—as opposed to just fixing things that break—HPE Pointnext Tech Care helps you focus on achieving your business goals.
HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment, and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.
HPE Integration and Performance Services help you customize your experience at any stage of your product lifecycle with a menu of services based on individual needs, workloads, and technologies.
- Advise, design, and transform
- Deploy
- Integrate and migrate
- Operate and improve
- Financial Services
- Greenlake Management Services
- Retire and sanitize
- IT Training and personal development
Other related services
HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.
Defective Media Retention is optional and allows you to retain Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
HPE GREENLAKE
HPE Greenlake is HPE’s market-leading IT as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model. HPE GreenLake delivers public cloud services and infrastructure for workloads on premises, fully managed in a pay per use model.
