Overview:
Are you looking for a scalable and cost optimized server solution for your virtualized and software-defined compute workloads?
The HPE ProLiant DL320 Gen11 server is a 1U 1P solution that delivers exceptional compute performance, upgraded high-speed data transfer rates, and increased maximum memory capacity and bandwidth, at 1P economics. Powered by 4th Gen Intel® Xeon® Scalable Processors with up to 32 cores, 270W, increased memory capability (up to 2 TB 4800 MT/s), and high-speed PCIe Gen5, the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution.
The silicon root of trust anchors the server firmware, creating a fingerprint for the Intel Secure Processor that must be matched exactly, before the server will boot.
The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
What's New
- Powered by the 4th Gen Intel® Xeon® Scalable Processors with next-generation 5nm technology that supports up to 32 cores at 270W and 16 DIMMs of DDR5 memory up to 4800 MT/s.
- 16 DIMMs per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
- Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP3.0 slots.
- Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
- Supports hot-pluggable or internal, high-availability RAID1 NVMe M.2 boot options.
Features:
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant DL320 Gen11 servers are engineered for your hybrid world. The HPE ProLiant DL320 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.
These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.
Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.
Trusted Security by Design: Uncompromising, Fundamental, and Protected
The HPE ProLiant DL320 Gen11 server is tied into the silicon root of trust and the 4th and 5th Gen Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the Intel Xeon system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.
HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel® Xeon® Processor that must be matched exactly before the server will boot. This ensures malicious code is contained and healthy servers are protected.
HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.
HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.
Optimized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
Harness major computer performance. The HPE ProLiant DL320 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with modern 5nm technology that support up to 60 cores and 270W TDP.
Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP slots to improve I/O throughput and reduce latency.
Utilize 16 DIMM channels per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements..
Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Delivered As-a-Service
The HPE ProLiant DL320 Gen11 server is supported by HPE GreenLake to simplify IT. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT. Beyond traditional financing and leasing, HPE offers options that free trapped capital, accelerate infrastructure updates and provide for onpremises pay-per-use consumption with HPE GreenLake.
Rapidly deploy a broad portfolio of cloud services such as, containers, compute, virtual machines (VMs), accelerated storage, data protection, and more. Workload-optimized, preconfigured solutions can be quickly on-boarded, accelerating your agility.
Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Hardware Specs:
HPE ProLiant DL320 Gen11 server
Front View - 4LFF + optional Optical Drive shown
1 |
Optical Disk Drive (optional - shown) |
2 |
Serial number/iLO information pull tab |
3 |
Quick removal access panel |
4 |
USB 3.2 Gen1 port |
5 |
iLO Service Port |
6 |
Power On / Standby button and LED |
7 |
Health LED |
8 |
NIC Status |
9 |
UID Button/LED |
10 |
Four (4) LFF Drive Cage (shown with drives) |
11 |
Drive support label |
Notes: Optional Display port and USB 2.0 port also supported which is not shown here.
Front View- 8 SFF + optional Universal Media Bay and optical drive shown
1 |
Quick removal access panel |
2 |
Serial number/iLO information pull tab |
3 |
Display Port (optional via Universal Media Bay – shown) |
4 |
Universal Media Bay or 2 SFF Drive Bay (shown with ODD, Display & USB port) |
5 |
USB 3.2 Gen1 port (optional via Universal Media Bay – shown) |
6 |
Optical disk drive (optional via Universal Media Bay– shown |
7 |
iLO Service Port |
8 |
Power On / Standby button and LED |
9 |
Health LED |
10 |
NIC Status |
11 |
UID Button/LED |
12 |
USB 3.2 Gen1 port |
13 |
8SFF Drive Cage (shown with drives) |
14 |
Drive support label |

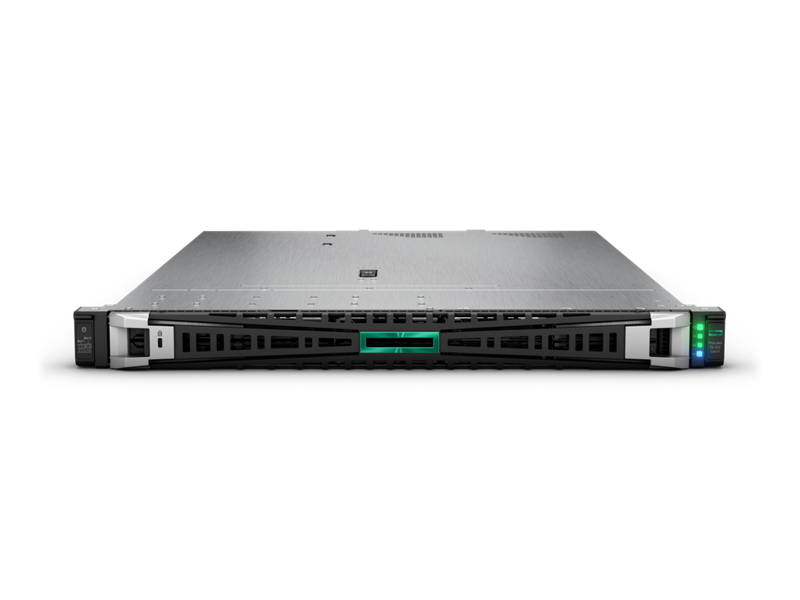

Front View
1 |
Serial number/iLO information pull tab |
2 |
One (1) USB 3.2 Gen1 Port |
3 |
iLO Service Port |
4 |
Power On/Standby button and LED |
5 |
Health LED |
6 |
NIC Status |
7 |
UID Button/LED |
8 |
12 x LFF Drive Cage (4 Shown populated, 2 rows of 4 behind) |
9 |
Drive support label |
Internal View – 8SFF Chassis
1 |
Up to 7 Hot Plug Fans |
2 |
Two (2) M.2 module connectors (under the air baffle- not visible) |
3 |
Hot-plug Power Supply 1 and 2 |
4 |
NS204i-u Boot Device (optional - shown) |
5 |
Slot-1 PCIe5 x16 FHHL (Primary Riser) |
6 |
Slot-2 PCIe5 x16 FHHL (Secondary Riser) |
7 |
16 DDR5 DIMM slots (shown) |
8 |
Heat Sink |
9 |
Drive Cage |

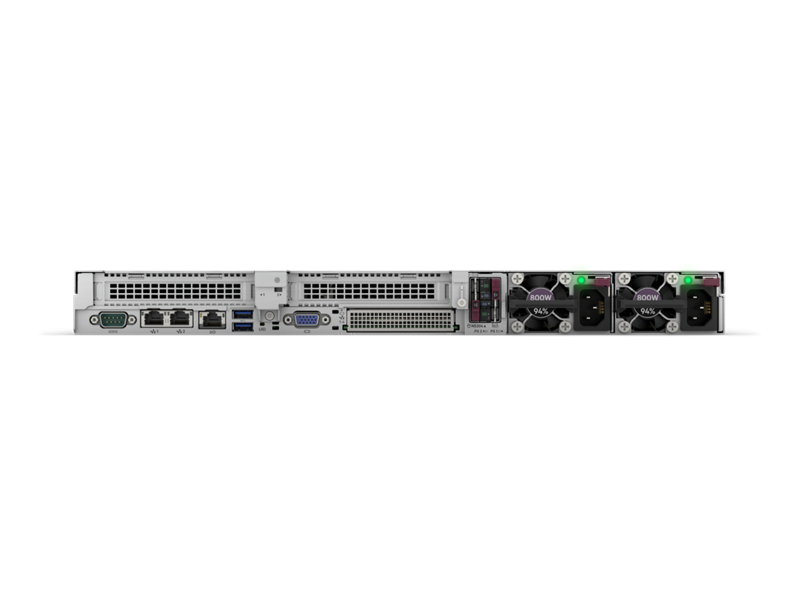

Rear View – Standard for all DL320 Gen11
1 |
Slot-1 & 2 PCIe5 x16 FHHL (Primary and Secondary Riser) |
2 |
NS204i-u Boot Device (optional – shown) |
3 |
Hot-plug Power Supply 1 and 2 |
4 |
OCP 3.0 Slot (shown covered) |
5 |
Video (VGA) port |
6 |
UID Indicator LED |
7 |
Two (2) USB 3.2 Gen1 ports |
8 |
Dedicated iLO management port |
9 |
Embedded 1x2 network port |
10 |
Serial port (optional) |
Services:
HPE POINTNEXT SERVICES
HPE Pointnext Services brings together technology and expertise to help you drive your business forward and prepare for whatever is next.
Operational Services from HPE Pointnext Services
HPE Pointnext Tech Care provides fast access to product-specific experts, an AI-driven digital experience, and general technical guidance to help enable constant innovation. We have reimagined IT support from the ground up to deliver faster answers and greater value. By continuously searching for better ways to do things—as opposed to just fixing things that break—HPE Pointnext Tech Care helps you focus on achieving your business goals.
HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment, and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.
HPE Integration and Performance Services help you customize your experience at any stage of your product lifecycle with a menu of services based on individual needs, workloads, and technologies.
- Advise, design, and transform
- Deploy
- Integrate and migrate
- Operate and improve
- Financial Services
- Greenlake Management Services
- Retire and sanitize
- IT Training and personal development
Other related services
HPE Education Services delivers a comprehensive range of services to support your people as they expand their skills required for a digital transformation. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.
Defective Media Retention is optional and allows you to retain Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
HPE GREENLAKE
HPE Greenlake is HPE’s market-leading IT as-a-Service offering that brings the cloud experience to apps and data everywhere – data centers, multi-clouds, and edges – with one unified operating model. HPE GreenLake delivers public cloud services and infrastructure for workloads on premises, fully managed in a pay per use model.
